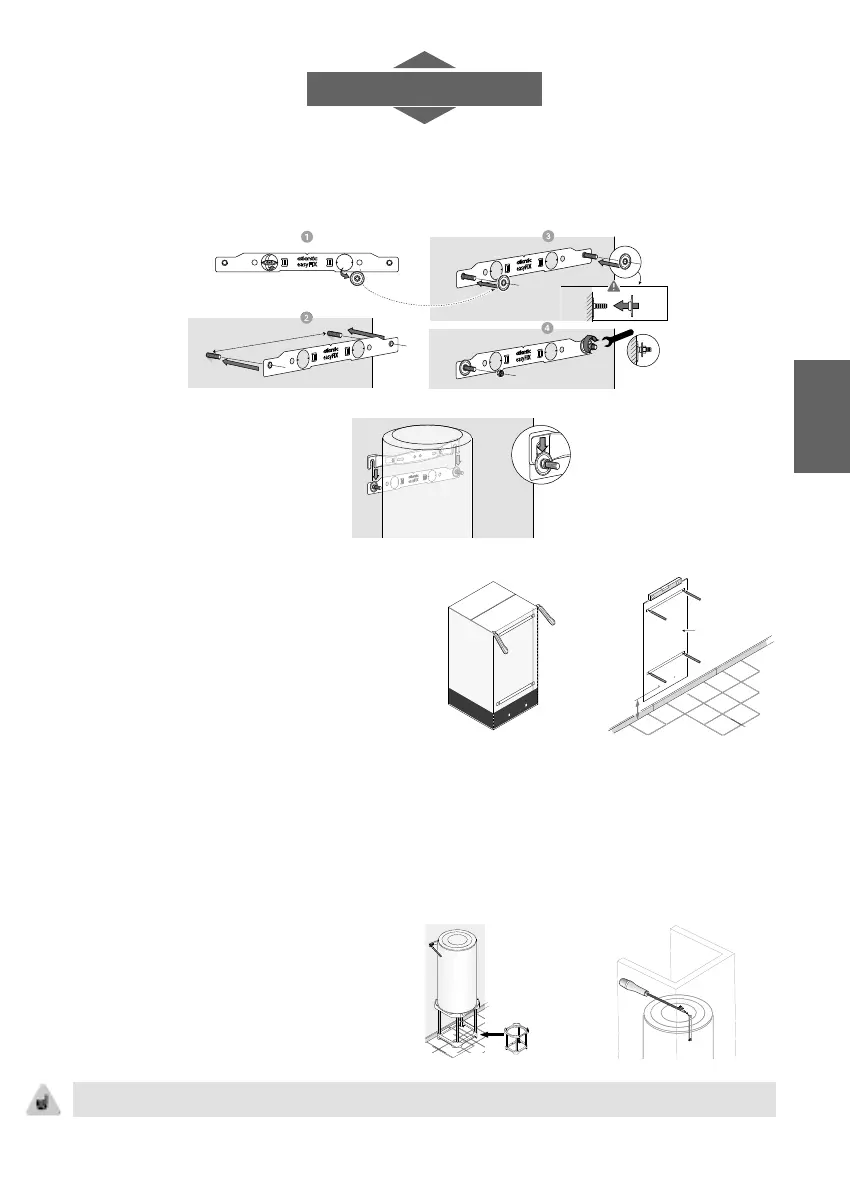

5.5.2. Vertical wall-mounted water heater, 150 l or 200 l
With easyFIX:
• Mount and tighten easyFIX
OK
440 mm
M10
• Install the water heater
With the template printed on the box:
• Cut out the template printed on the
box and use it for labelling.
on
Laying
template
Drill and plug the water heater and use attachments of at least 10 mm in diameter (Ø)
suitable for your wall type (drywall, concrete, brick).
Using a support is compulsory if the wall is not capable of bearing the lled boiler’s weight.
In this case, it is mandatory to x the water heater to the wall, either with the upper bracket
or with the xing bracket (which allows it to be integrated into a cupboard with internal
dimensions of 600 x 600 mm).
First put the water heater on its sup-
port to mark the mounting points.
Drill the holes.
Put the water heater back into its
position.
A
R
R-
M
U
R
BA
C
K-
WALL
A
RR-M
U
R
BA
C
K
-WA
LL
AR
R
-
M
UR
B
A
C
K
-
W
ALL
ARR-M
U
R
B
ACK
-
WA
LL
A󰀩x the upper bracket
