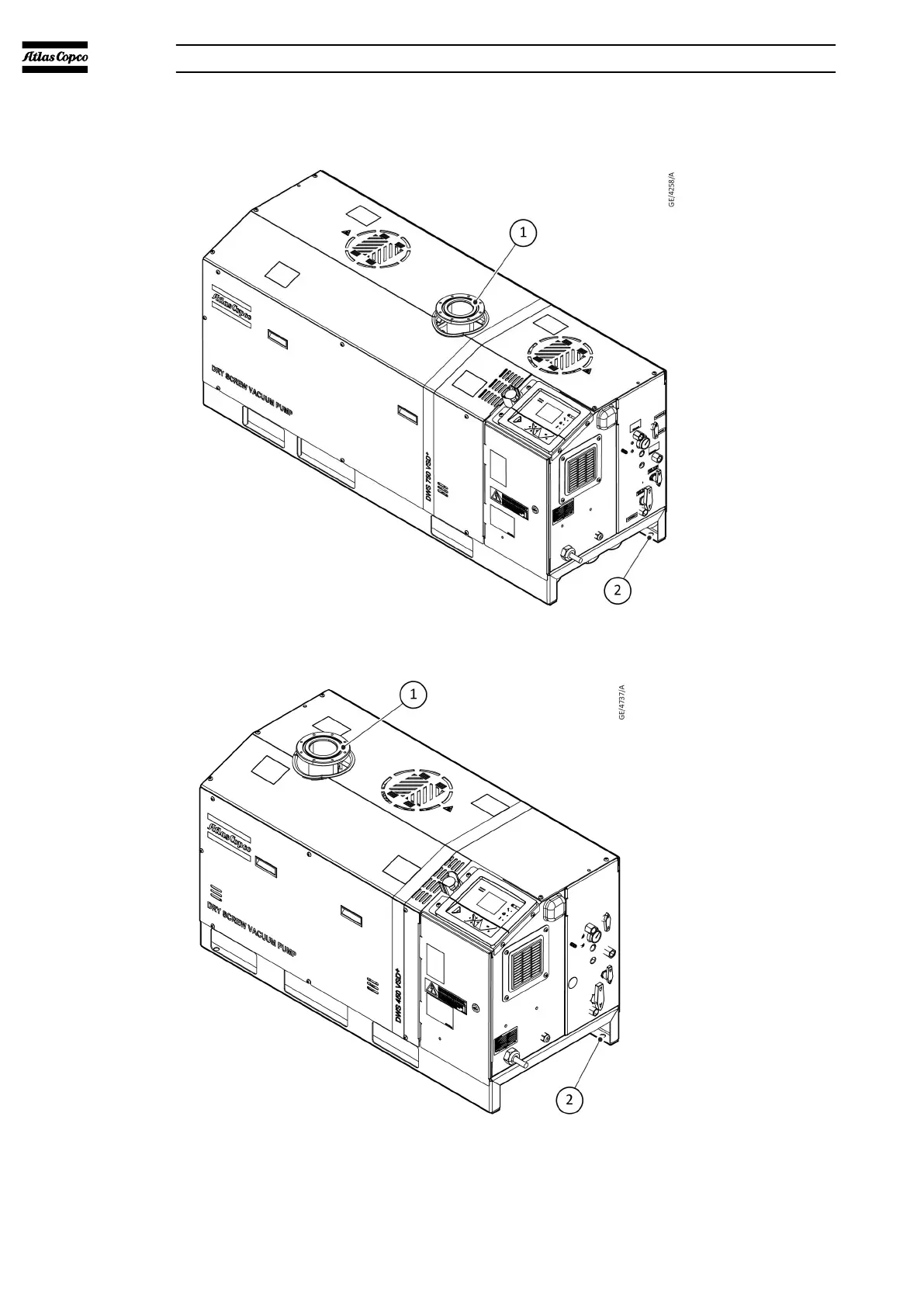

2.4.1. Front view
Figure 1 Front view - DWS 750 VSD+
1. Process inlet 2. Floor mounting hole (4 off)1. Process inlet 2. Floor mounting hole (4 off)
Figure 2 Front view - DWS 450 VSD+
1. Process inlet 2. Floor mounting hole (4 off)1. Process inlet 2. Floor mounting hole (4 off)
07/2021 - ©Atlas CopcoPage 111950840208_A
