To top up the oil levels, all the pumping systems require side panels to be

removed:

1. Refer to Figure: Location of the oil sight glass and the fill plug on gearbox to

locate the oil fill plugs on the top of the end cover and gearbox.

2. Remove the appropriate oil fill plug and carefully top up with oil. Refer to

General technical data on page 15 for the specification.

3. Keep adding oil until the oil level is in line with the MAX indicator.

4. Refit the oil fill plug.

5. Refit all dry pumping system side panels.

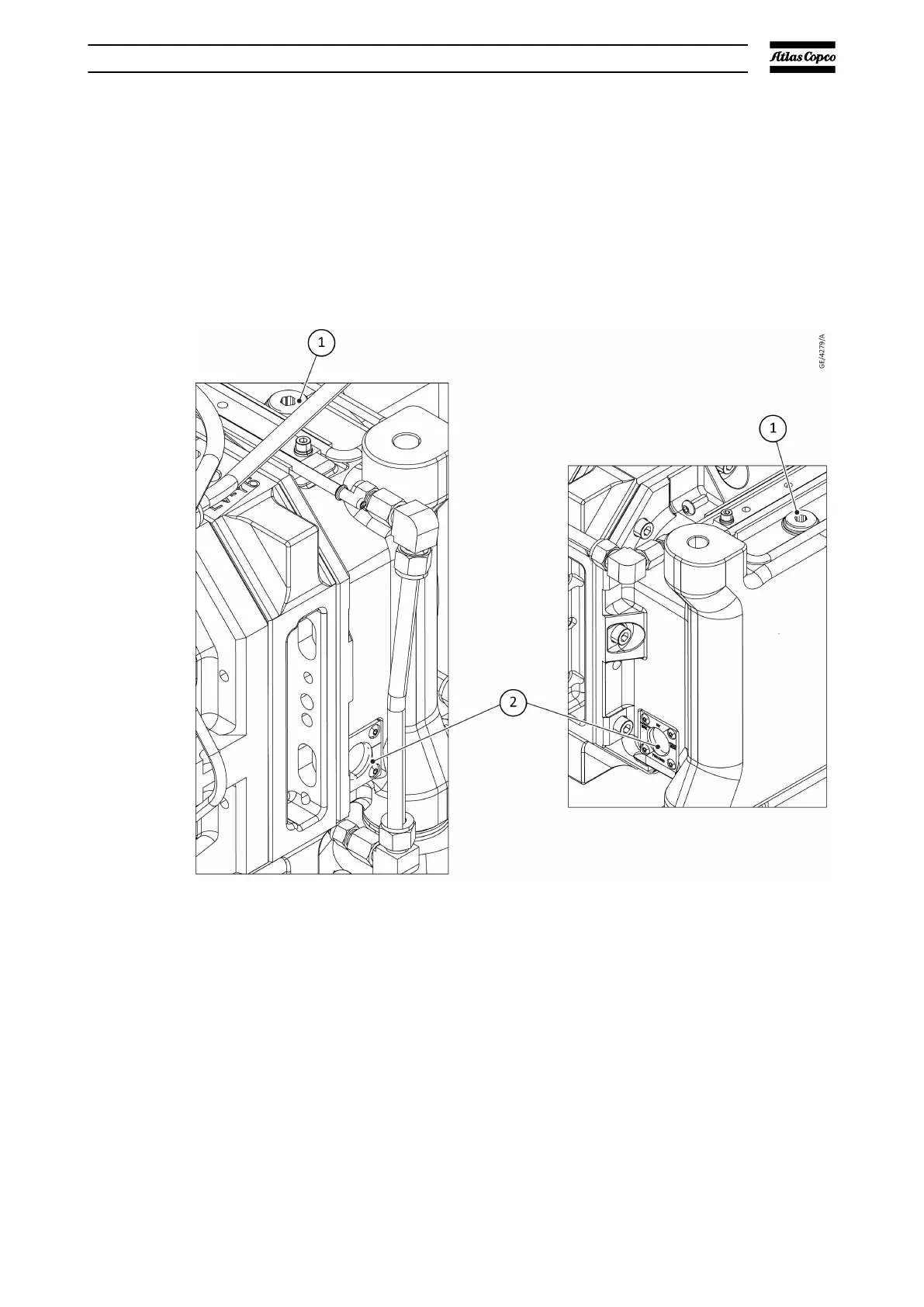

1. Oil filler plug 2. Oil sight glass1. Oil filler plug 2. Oil sight glass

If the oil is very old or has light contamination then it is possible to replace the oil,

8.5.2. Inspect the connections, pipelines, cables and fittings

Depending on the application, inspection and cleaning of the exhaust pipe and

any elbows or check valves fitted may be needed. Contact us for details and

training. If the dry pumping system is not relocated for maintenance, ensure that

all supplies are locked out and tagged out before starting the following

procedure.

1. Remove the enclosure side and top panels.

Maintenance

Atlas Copco DWS VSD+ User Manual
