Procedure
Start from the Main screen (refer to Main screen on page 33):
Use the Scroll keys to move the cursor to Menu action button.
Push the Enter key

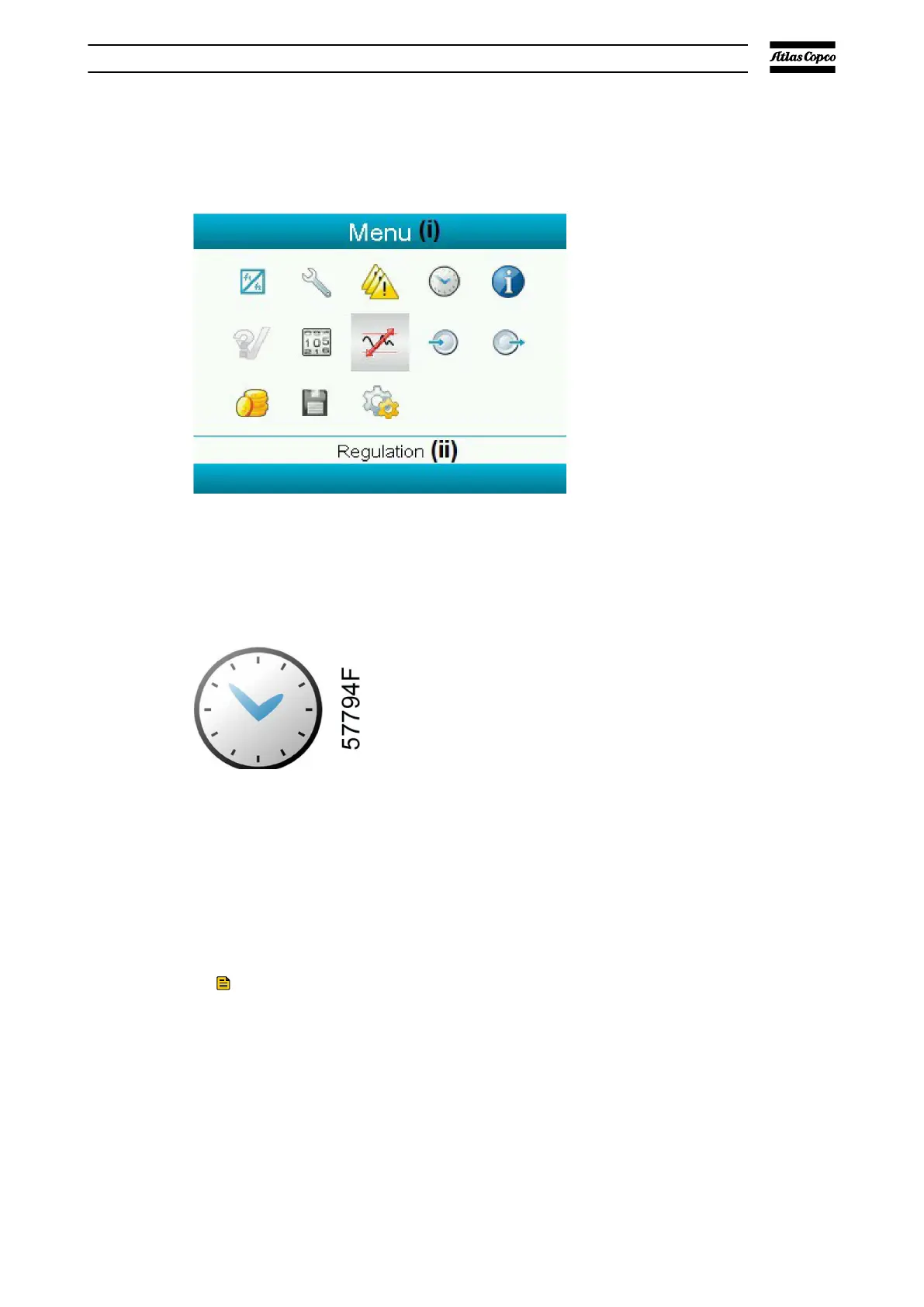

. The screen that follows is shown:
Use the Scroll keys to move the cursor to the Info icon (refer to menu icon).
Push the Enter key. The internet address is displayed on the screen.
4.15. Week timer menu
Menu icon, W
eek timer
Function
To programme time-based start/stop commands for the pump.
To programme time-based change-over commands for the net pressure band.
Four different week schemes can be programmed.
A week cycle can be programmed. A week cycle is a sequence of 10 weeks.
For each week in the cycle, you can select one of the four programmed week
schemes.
Note:
In the controller you can select different timers on one day (up to eight
actions). It is not possible to programme two actions at the same time. Keep
minimum of 1 minute difference between each action.
For example, Start pump: 5.00 AM, Pressure setpoint 2: 5.01 AM (or later).
Procedure
Start from the Main screen (refer to Main screen on page 33):
Use the Scroll keys to move the cursor to Menu action button.
Elektronikon® graphic controller
07/2021 - ©Atlas CopcoPage 561950840208_A
