Atlas Copco DWS VSD+ User Manual

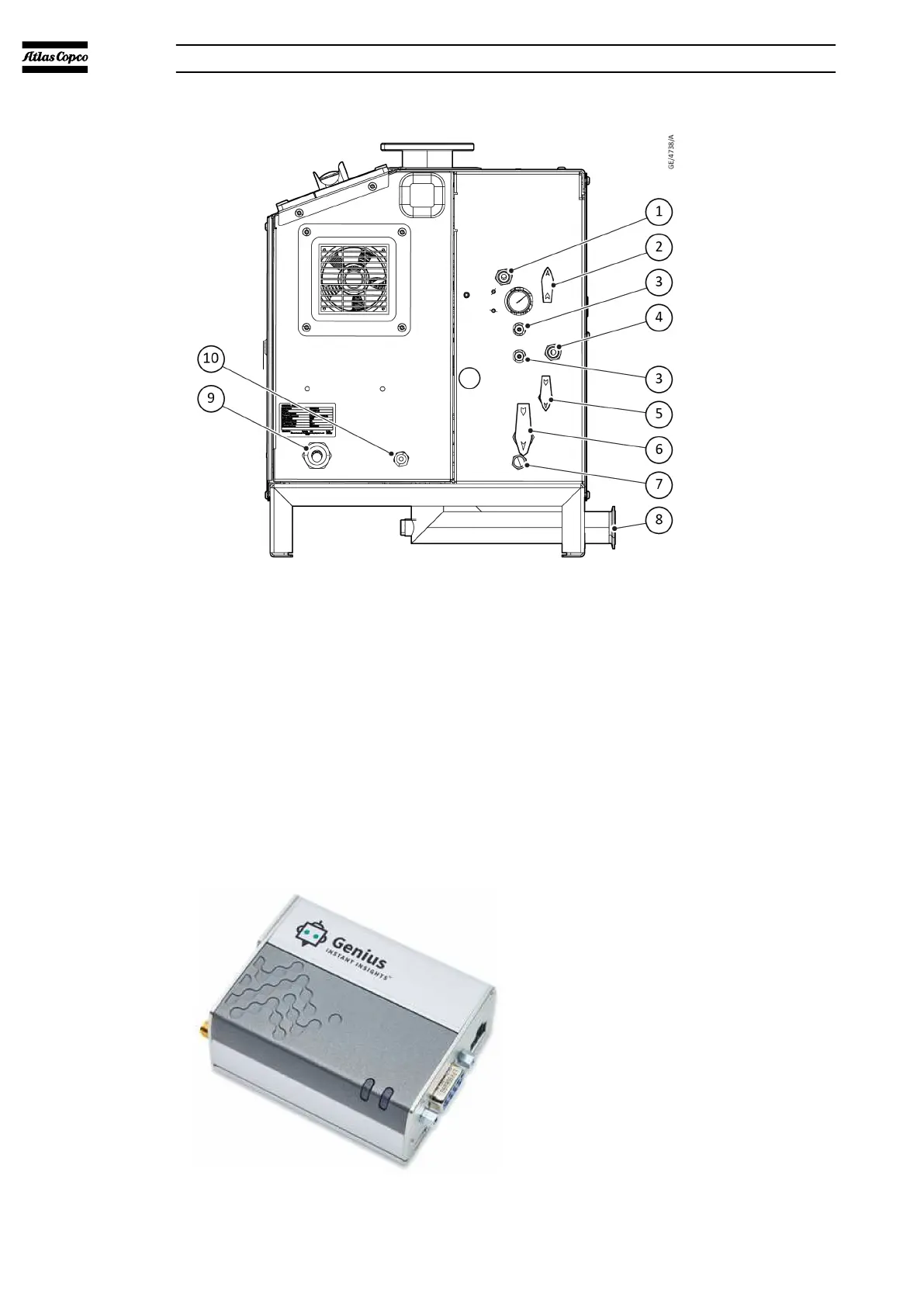

Figure 4 Side view - DWS 450 VSD+
1. Cooling water inlet 2. HV seal purge valve (MV3)
3. Spare gas port 4. Cooling water outlet
5. Manual valve gas ballast 0‑50 slm
(MV1)
6. Manual valve gas ballast 0‑80 slm
(MV2)
7. Gas inlet 8. Exhaust outlet
9. Mains power inlet 10. Communication cable
1. Cooling water inlet 2. HV seal purge valve (MV3)
3. Spare gas port 4. Cooling water outlet
5. Manual valve gas ballast 0‑50 slm
(MV1)
6. Manual valve gas ballast 0‑80 slm
(MV2)
7. Gas inlet 8. Exhaust outlet
9. Mains power inlet 10. Communication cable
2.4.3. GENIUS Instant Insights (option)
The GENIUS BOX can be provided as an option for the DWS VSD+ pump. The
GENIUS BOX can be mounted in the electrical cabinet. The GENIUS BOX allows
the read-out of parameters of the pump on a user login protected web site https://
genius.atlascopco.com/. The connected antenna can be mounted outside the
pump. For more detail, refer to Cloud User Handbook.
07/2021 - ©Atlas CopcoPage 131950840208_A
Introduction
