Atlas Copco DWS VSD+ User Manual

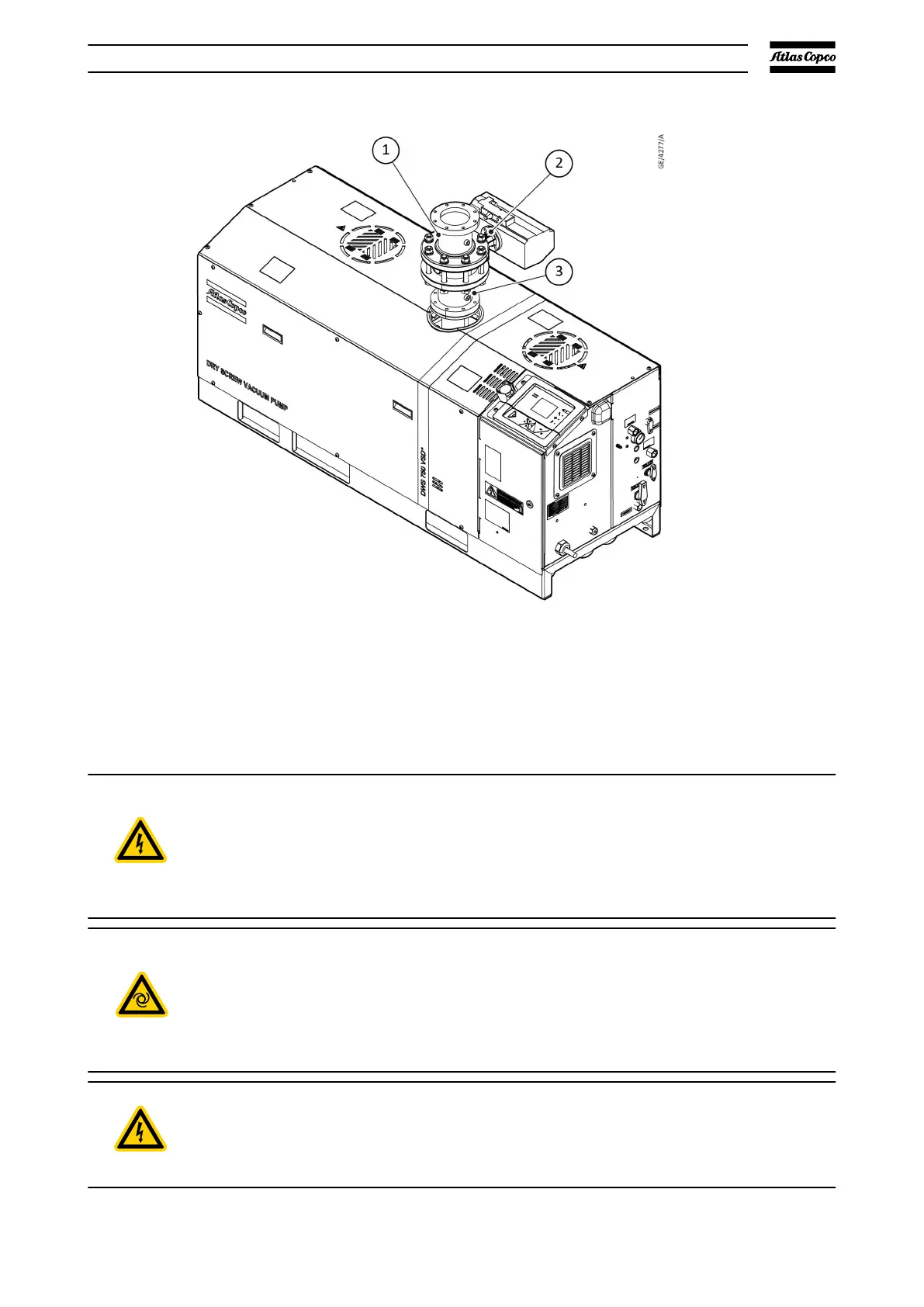

Figure 19 Interspool connections on the pump
The view for DWS 450 VSD+ may differ.
1. Adapter (standard)/Adapter with
bellow (optional)
2. Inlet valve
3. Adapter
1. Adapter (standard)/Adapter with
bellow (optional)
2. Inlet valve
3. Adapter
6.9. Electrical supply
WARNING:
Ensure that the electrical installation of the dry pumping system conforms to all
local, regional and national safety requirements. It must be connected to a
suitably fused and protected electrical supply and a suitable earth (ground)
point.
WARNING:
The pump will restart automatically when the electrical supply is restored after
an electrical supply failure. To prevent the automatic restart, the pump must be
connected to the electrical supply through suitable control equipment which
must be reset manually after an electrical supply failure.
WARNING:
Risk of electric shock. Isolate the electrical supply before disconnecting the
electrical supply cable from the dry pumping system.
Installation
07/2021 - ©Atlas CopcoPage 921950840208_A
