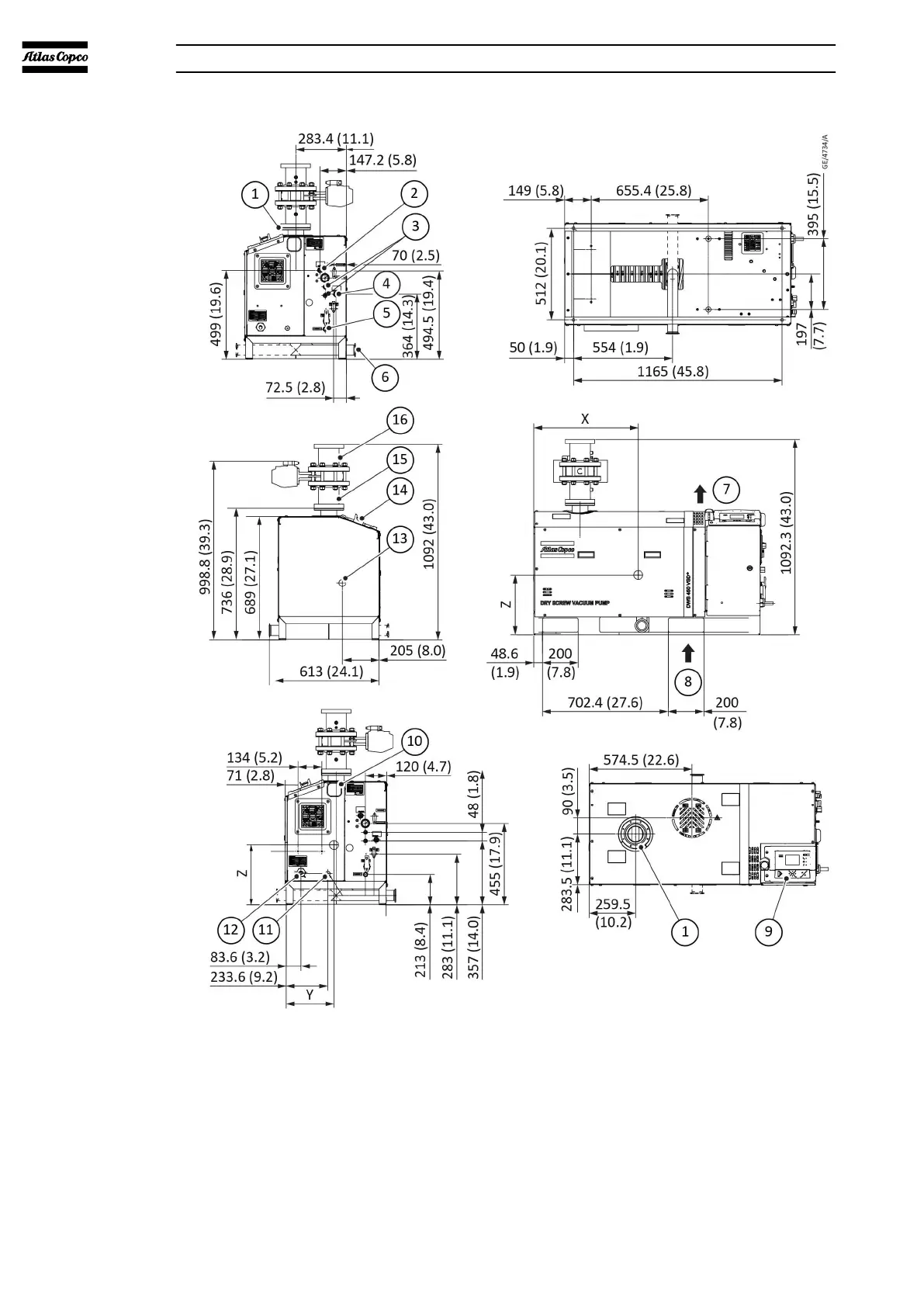

Figure 8 Dimension drawing - DWS 450 VSD+
1. Process inlet 2. Cooling water inlet
3. Spare gas ports 4. Cooling water outlet
5. Gas inlet 6. Exhaust outlet
7. Cooling air outlet 8. Cooling air inlet area cubicle
9. Controller 10. Smart box/Genius box, Antenna
position (optional)
11. Communication cable 12. Mains power inlet
13. Motor cranking access 14. Emergency stop button
15. Adapter (standard) 16. Adapter (standard)/Adapter with
bellow (optional)
1. Process inlet 2. Cooling water inlet
3. Spare gas ports 4. Cooling water outlet
5. Gas inlet 6. Exhaust outlet
7. Cooling air outlet 8. Cooling air inlet area cubicle
9. Controller 10. Smart box/Genius box, Antenna
position (optional)
11. Communication cable 12. Mains power inlet
13. Motor cranking access 14. Emergency stop button
15. Adapter (standard) 16. Adapter (standard)/Adapter with
bellow (optional)
