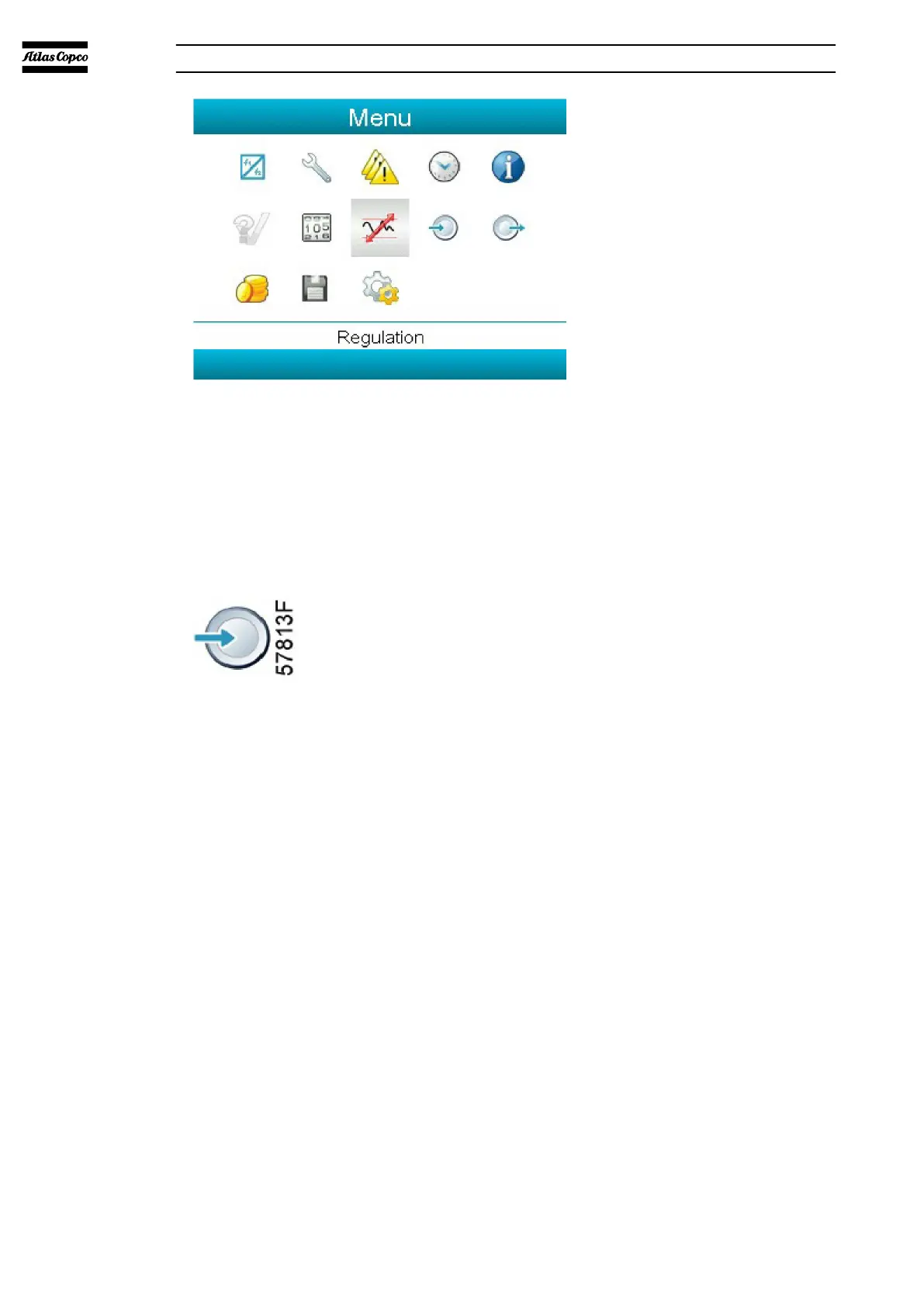

▪ The screen shows different icons. Each icon identifies a menu item. Initially,
the Pressure Settings (Regulation) icon is selected. The status bar shows the
name of the menu that relates to the selected icon.
▪ Use the Scroll keys to select an icon.
▪ Push the Escape key to return to the Main screen.
4.6. Inputs menu
Menu icon, inputs
Function
▪ To display the value of the measured data (analog inputs) and the status of
the digital inputs (for example, emergency stop contact, motor overload relay
,
etc.).
▪ T
o select the digital input to be shown on the chart on the Main screen.
Procedure
Start from the Main screen (refer to Main screen on page 33):
▪ Use the Scroll keys to move the cursor to the Menu action button.
▪ Push the Enter key, the screen that follows is shown:
07/2021 - ©Atlas CopcoPage 371950840208_A
Elektronikon® graphic controller
