▪ Push the Enter key.

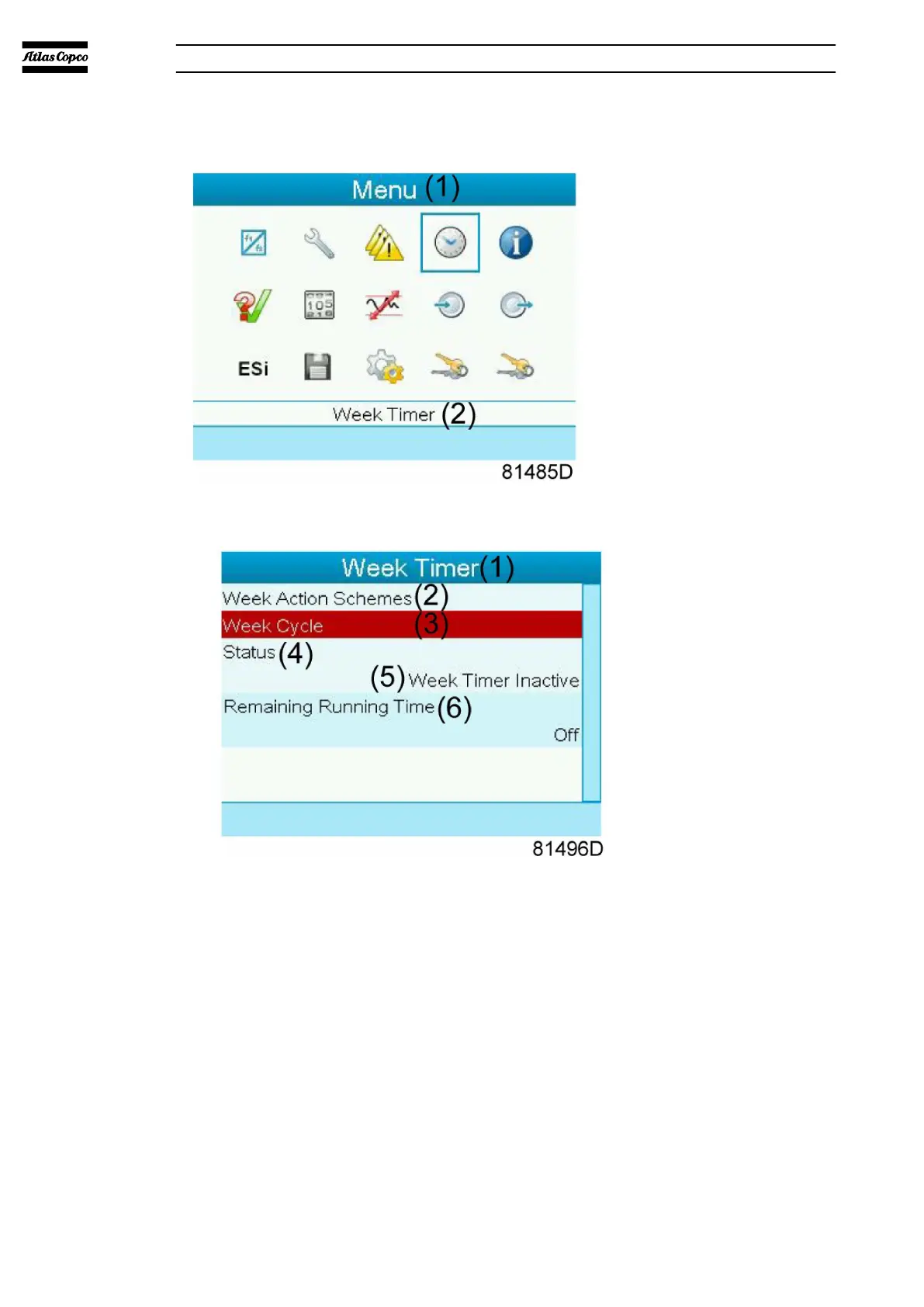

▪ Use the Scroll keys to move the cursor to select the Timer icon. The screen
that follows is shown:
1. Menu 2. Week Timer1. Menu 2. Week Timer
▪ Push the Enter key. The screen that follows is shown:
1. Week Timer 2. Week Action Schemes
3. Week Cycle 4. Status
5. Week Timer Inactive 6. Remaining Running Time
1. Week Timer 2. Week Action Schemes
3. Week Cycle 4. Status
5. Week Timer Inactive 6. Remaining Running Time
▪ The first item in this list is highlighted in red. Select the necessary item.
▪ Push the Enter key to change the value.
Programming week schemes
▪ Select Week action schemes and push the Enter key. A new window is
displayed. The first item in the list is highlighted in red.
▪ Push the Enter key to change the Week Action Scheme 1.
07/2021 - ©Atlas CopcoPage 571950840208_A
Elektronikon® graphic controller
