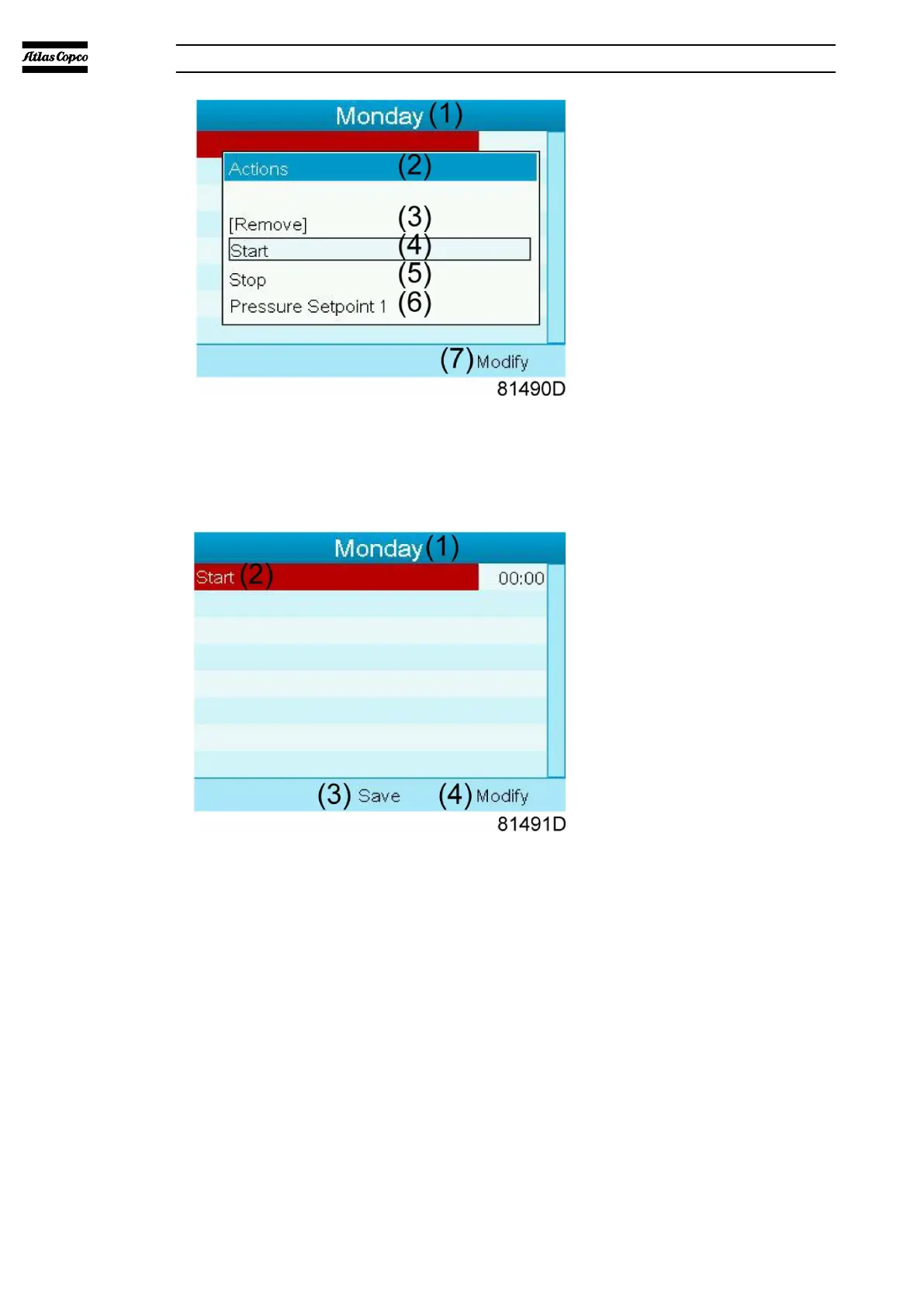

1. Monday 2. Actions
3. Remove 4. Start
5. Stop 6. Pressure setpoint 1
7. Modify
1. Monday 2. Actions
3. Remove 4. Start
5. Stop 6. Pressure setpoint 1
7. Modify
▪ A new window is displayed. The action is visible in the first day of the week.
1. Monday 2. Start
3. Save 4. Modify
1. Monday 2. Start
3. Save 4. Modify
▪ A pop-up window is displayed. Use the á or â Scroll keys to change the hours.
Use the ß or à Scroll keys to select the minutes.
07/2021 - ©Atlas CopcoPage 591950840208_A
