FlexiROC T35 R/T40 R 5 Controls
50 No: 3171473547.1 en

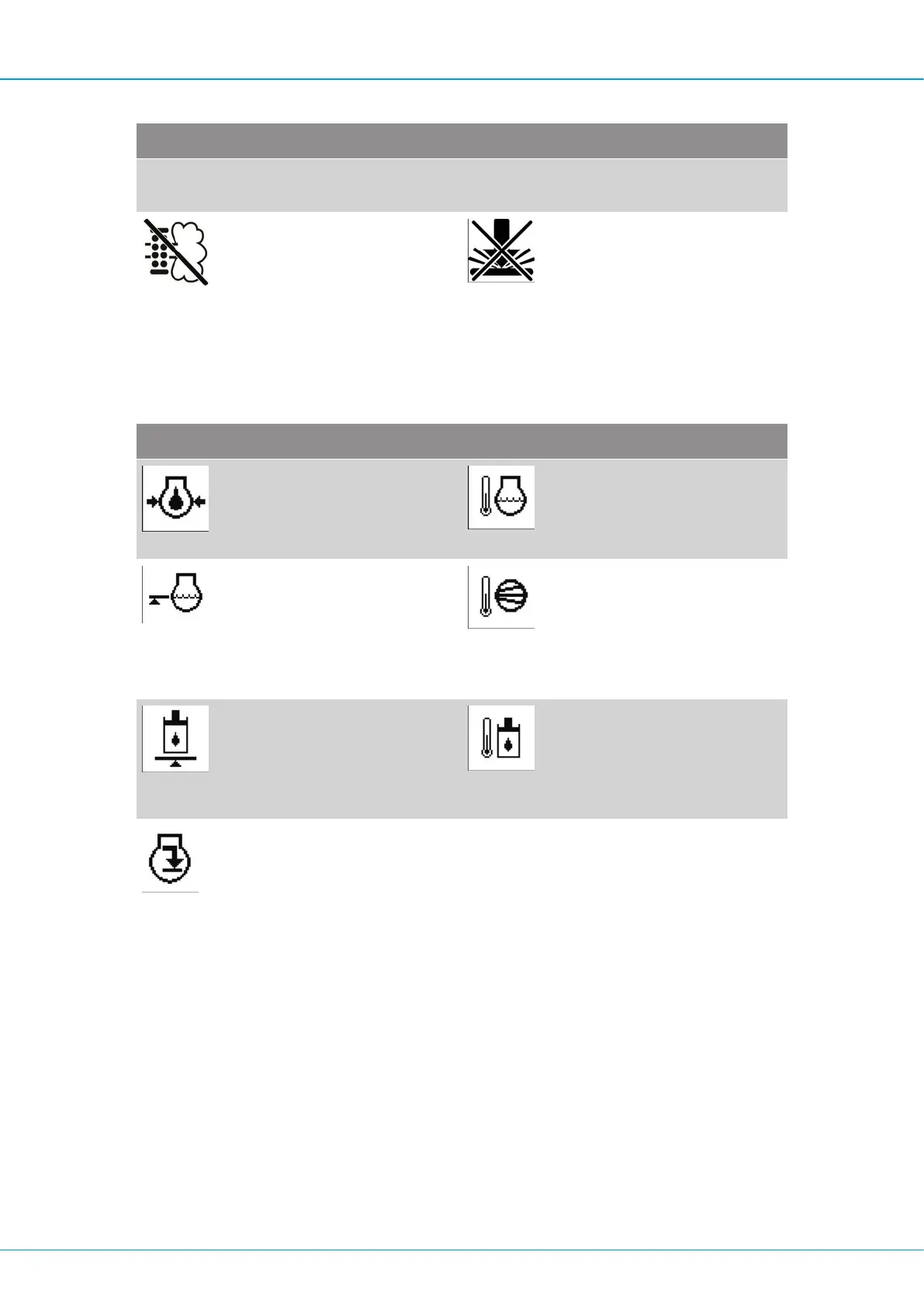

Symbol Description Symbol Description
Illuminates when regen-
eration has started.
Is shown when the soot
content is > 80%.
Automatic regenera-
tion blocked
Used when there is a
risk of personal injury or
damage to property.
Self-holding of drilling
lever ceases
Illuminates when the
soot content reaches
100%. If this occurs,
switch off the engine
and contact authorised
service personnel.
Table29: Yellow symbols (Warning symbols)
Symbol Description Symbol Description
Engine oil pressure
Engine oil pressure is
too low. Engine stopped
automatically
Engine temperature
Engine temperature is
too high. Engine
stopped automatically
Coolant level
Indicates that the
coolant level to the en-
gine is too low. Engine
stopped automatically
Compressor temperat-
ure
Indicates that the com-
pressor temperature is
too high. Engine
stopped automatically
Hydraulic oil level
Indicates that the hy-
draulic oil level is too
low. Engine stopped
automatically
Hydraulic Oil Temp
Indicates that the hy-
draulic oil temperature
is too high. Engine
stopped automatically
Engine Sensors
Indicates that an error
occurred in the engine
sensor, the engine is
stopped automatically
Table30: Red symbols (Warning symbols that stop the diesel engine)
