FlexiROC T35 R/T40 R 5 Controls
60 No: 3171473547.1 en
6.1.1 Module status

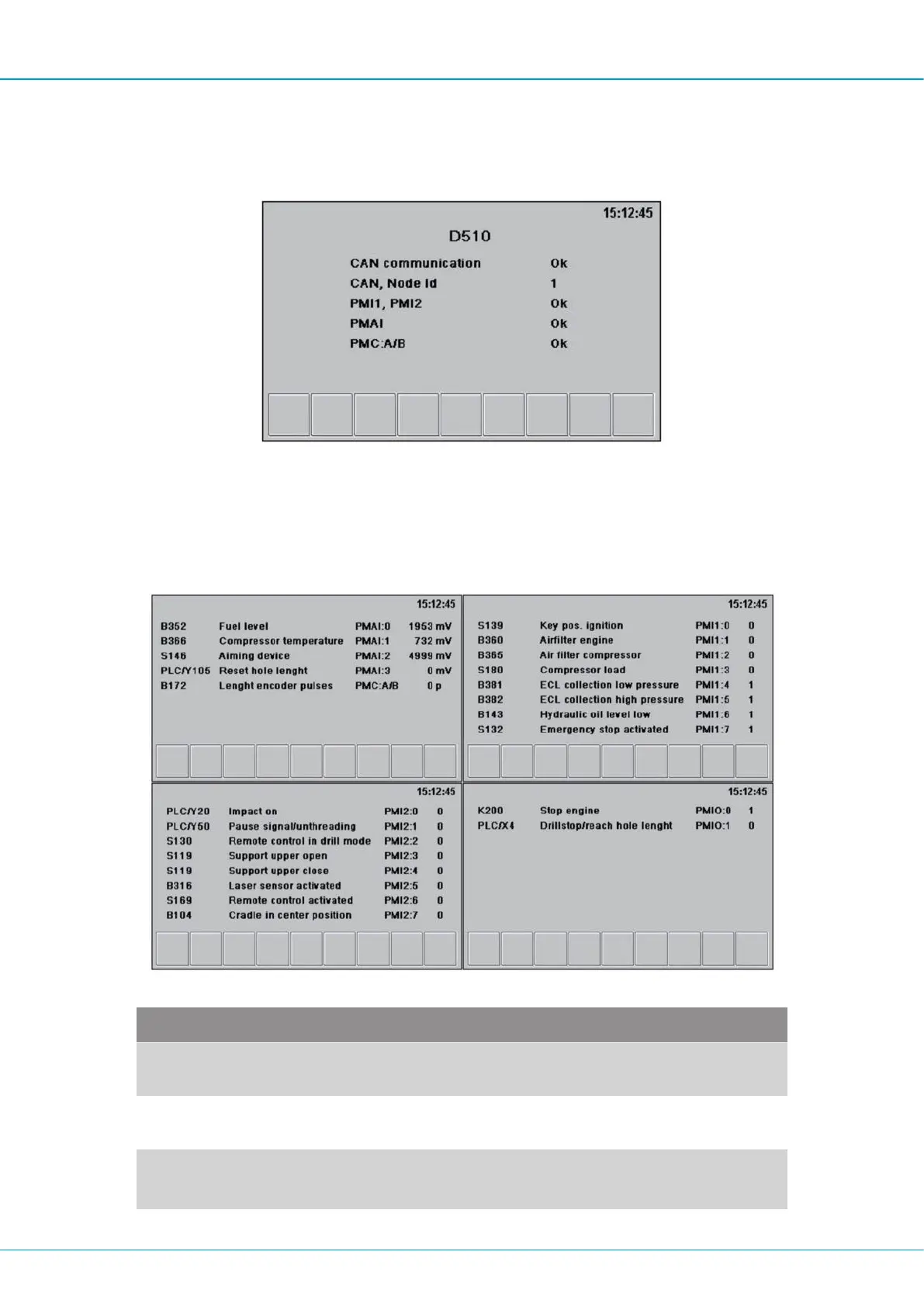

Symbols in the previous menu marked with a blue frame can be activated using Enter. Fol-
lowing which the current status of the modules is shown.
Current status of D510 I/O module
6.2 Sensor information PMAI/PMAI1/PAMI2/PMO
Graphic presentation for list of sensors connected to D510 (I/O module). The list shows po-
sition designation, description, connections and current status. Switch between the pages
with the function keys, "up" and "down".
Sensor information.
Sensor Function Status Event
B352 Fuel level 0 mV/10000 mV Empty fuel tank/full fuel
tank
B366 Compressor temperat-
ure
6000-4000 mV Compressor oil temper-
ature is ~+20-23°
S146 Aim Device ~1200 mV
~3900 mV
Aim device max right
