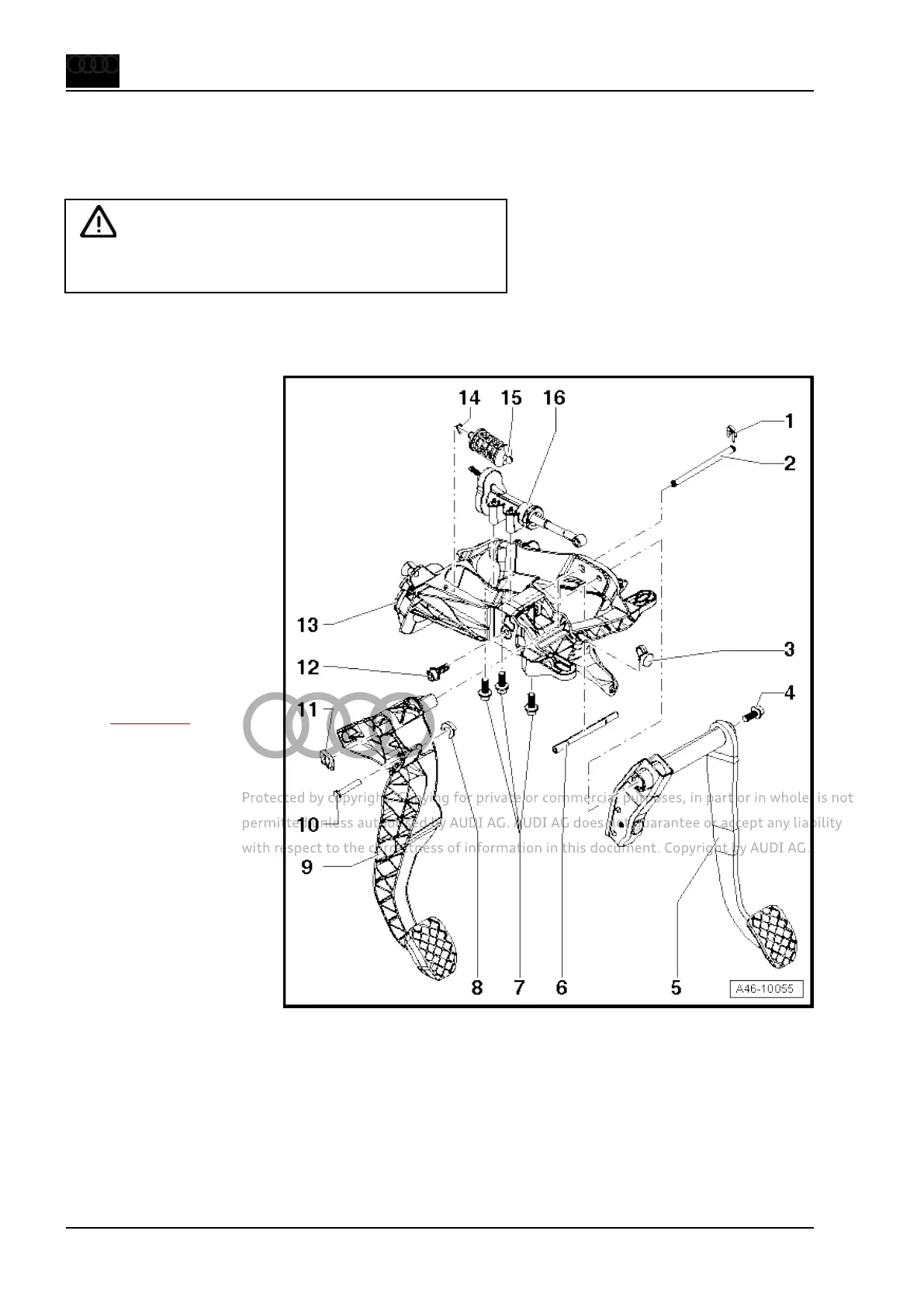

9 Exploded view - brake pedal, right-
hand drive vehicles
WARNING
The brake pedal travel must not be restricted by additional floor
coverings.
♦ Lubricate all bearings and contact surfaces with grease - G
000 450 02- .
1 - Retaining clip (spring steel)
⇒ ETKA
2 - Pin
3 - Limit stop
❑ Different versions of lim‐
it stops
❑ Black: 2.4 ltr. petrol en‐
gines
❑ White: all other engine
types
⇒ ETKA
4 - Hexagon socket head
flange bolt, 10 Nm
5 - Brake pedal
❑ Removing and installing
⇒ page 117
6 - Pin
7 - Hexagon socket head
flange bolt, 10 Nm
8 - Retaining clip (spring steel)
⇒ ETKA
9 - Clutch pedal
10 - Pin
11 - Retaining clip (spring
steel)
⇒ ETKA
12 - Hexagon socket head
flange bolt, 25 Nm
13 - Mounting bracket for pedal cluster
14 - Bush
15 - Compression spring or over-centre spring
❑ Note when installing: white spring mounting faces pedal bracket, black spring mounting faces clutch
pedal
16 - Clutch master cylinder
Audi A6 2005 ➤ , Audi A6 Avant 2005 ➤
Brake system - Edition 04.2019
116 Rep. gr.46 - Brakes - mechanism
