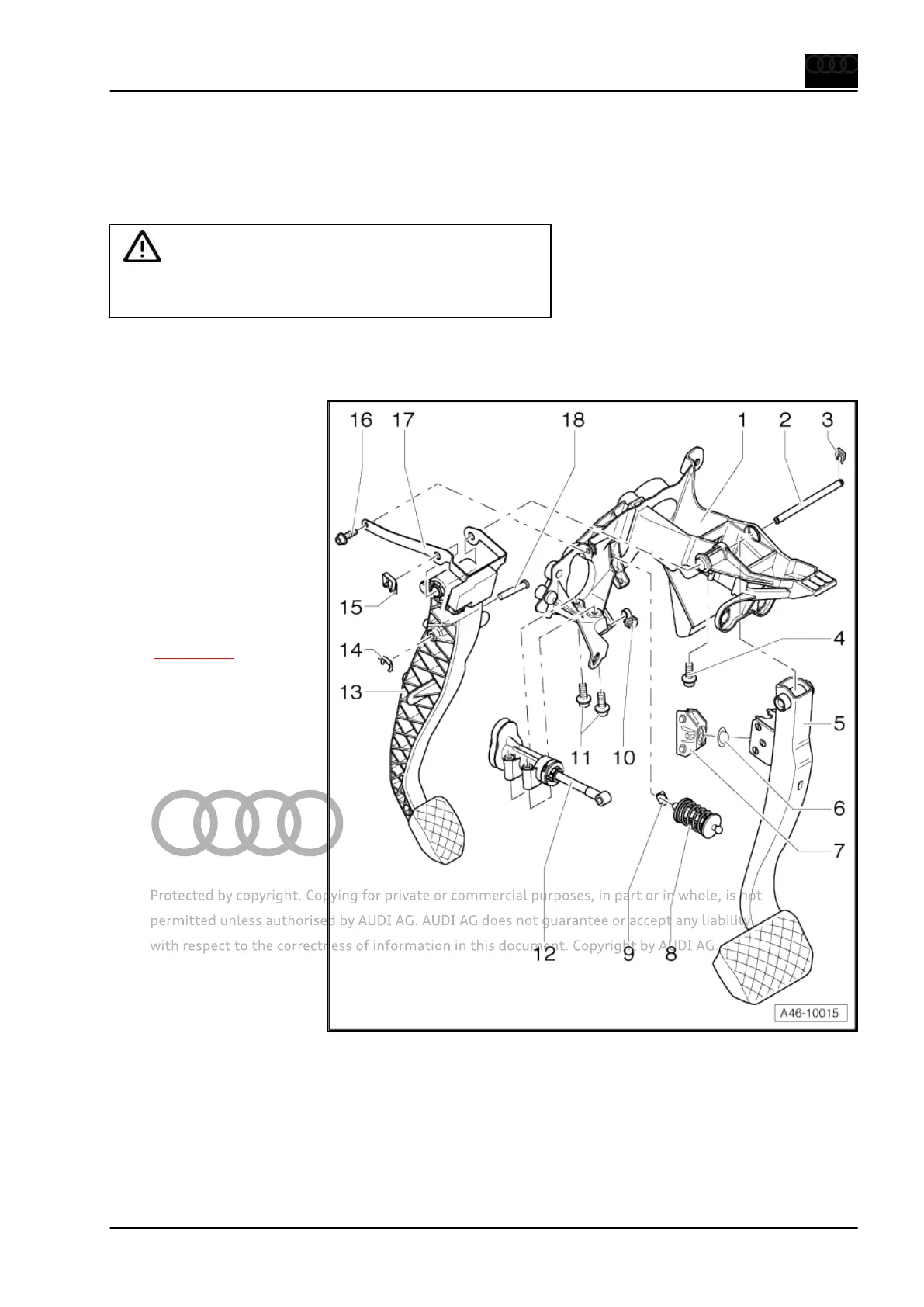

7 Exploded view - brake pedal, left-
hand drive vehicles with manual
gearbox
WARNING
The brake pedal travel must not be restricted by additional floor
coverings.
♦ Lubricate all bearings and contact surfaces with grease - G
000 450 02- .
1 - Mounting bracket for pedal
cluster
❑ Illustration for manual
gearbox
2 - Pin
3 - Retaining clip (spring steel)
⇒ ETKA
4 - Hexagon socket head
flange bolt, 10 Nm
5 - Brake pedal
❑ Removing and installing
⇒ page 114
6 - Bearing shell (is pressed in‐
to mounting)
7 - Mounting
❑ For ball head of brake
servo push rod
8 - Compression spring or
over-centre spring
❑ Note when installing:
white spring mounting
faces pedal bracket,
black spring mounting
faces clutch pedal
9 - Bush
10 - Limit stop for clutch pedal
❑ Different versions of lim‐
it stops
❑ Black: 2.4 ltr. petrol en‐
gines (140 mm)
❑ White: remaining en‐
gine types (150 mm)
⇒ ETKA
11 - Hexagon socket head flange bolt, 10 Nm
12 - Clutch master cylinder
13 - Clutch pedal
14 - Retaining clip (spring steel)
⇒ ETKA
Audi A6 2005 ➤ , Audi A6 Avant 2005 ➤
Brake system - Edition 04.2019
7. Exploded view - brake pedal, left-hand drive vehicles with manual gearbox 113
