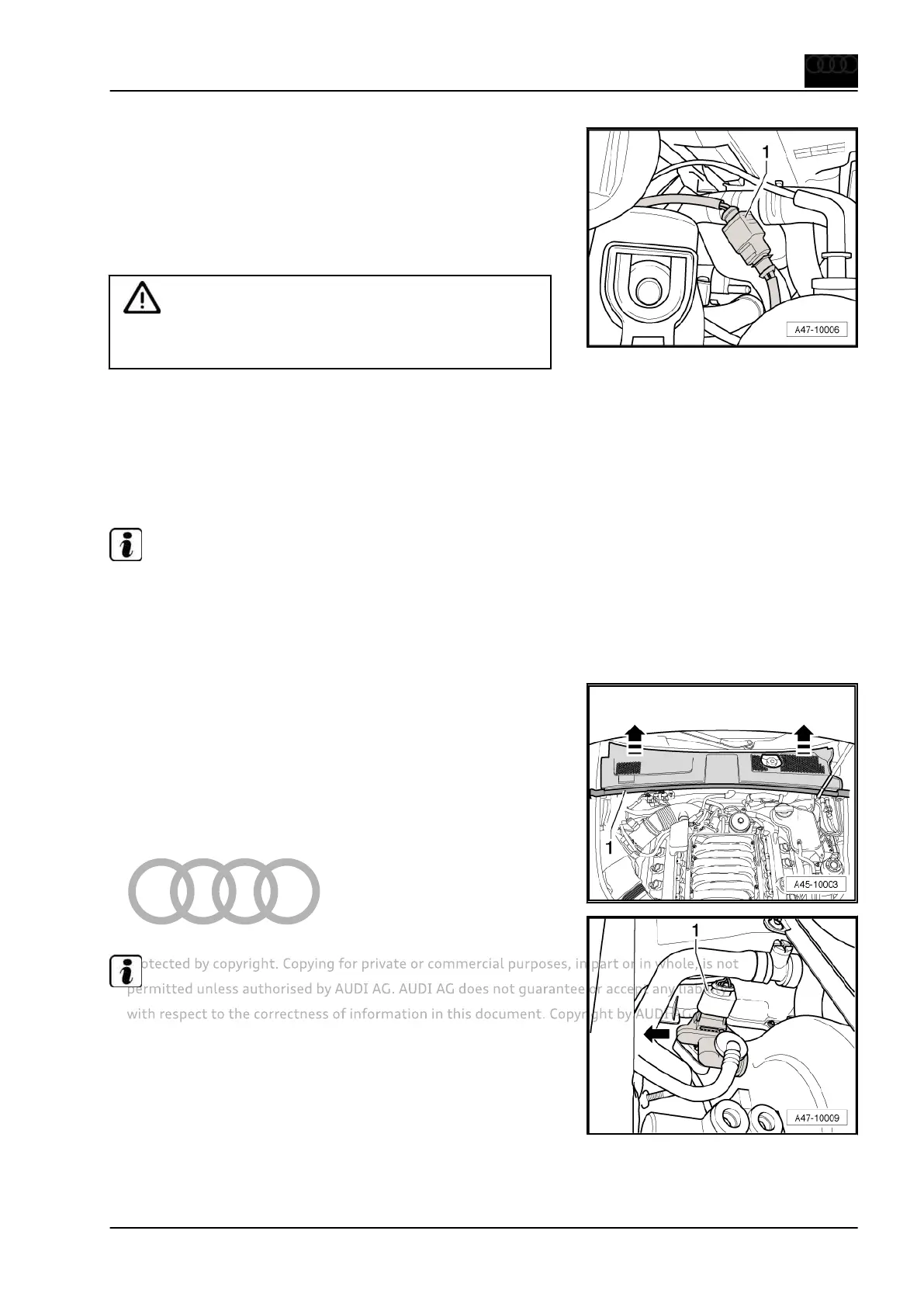

– Unplug electrical connector -1-.
– Lift out electric vacuum pump.
Installing
Installation is carried out in reverse sequence.
– Slide vacuum hose onto connection of vacuum pump with new
hose clip.
Caution
Take care not to damage the vacuum hose. The vacuum hose
must be renewed if it is damaged.
– Fasten hose clip using suitable pliers.
– Fit fuel lines in bracket and fasten bracket.
13.4 Brake servo pressure sensor - G294-
Removing
Note
Installation position: The brake servo pressure sensor - G294- is
located in the plenum chamber at the brake servo.
13.5 Removing and installing pressure sen‐
sor
– Detach plenum chamber cover.
– Unplug electrical connector -1-.
– Pull out pressure sensor in direction of -arrow-.
Note
The sensor may also be attached by means of clips.
Audi A6 2005 ➤ , Audi A6 Avant 2005 ➤
Brake system - Edition 04.2019
13. Checking electric vacuum pump for brakes V192 189
