4 Anti-lock brake system (ABS)
Bosch 8.0
The vehicle is equipped with a diagonally split ABS brake system.
The servo-assistance is pneumatic, supplied by the vacuum
brake servo unit.
The hydraulic unit and control unit are combined in a single com‐
ponent. This is therefore referred to as the hydraulic control unit.
The direct connection between these components reduces pos‐
sible sources of faults. There is no provision for repairing the
hydraulic control unit - it must be renewed if necessary.
Do not unscrew the bolts which connect the individual compo‐
nents of the hydraulic control unit.

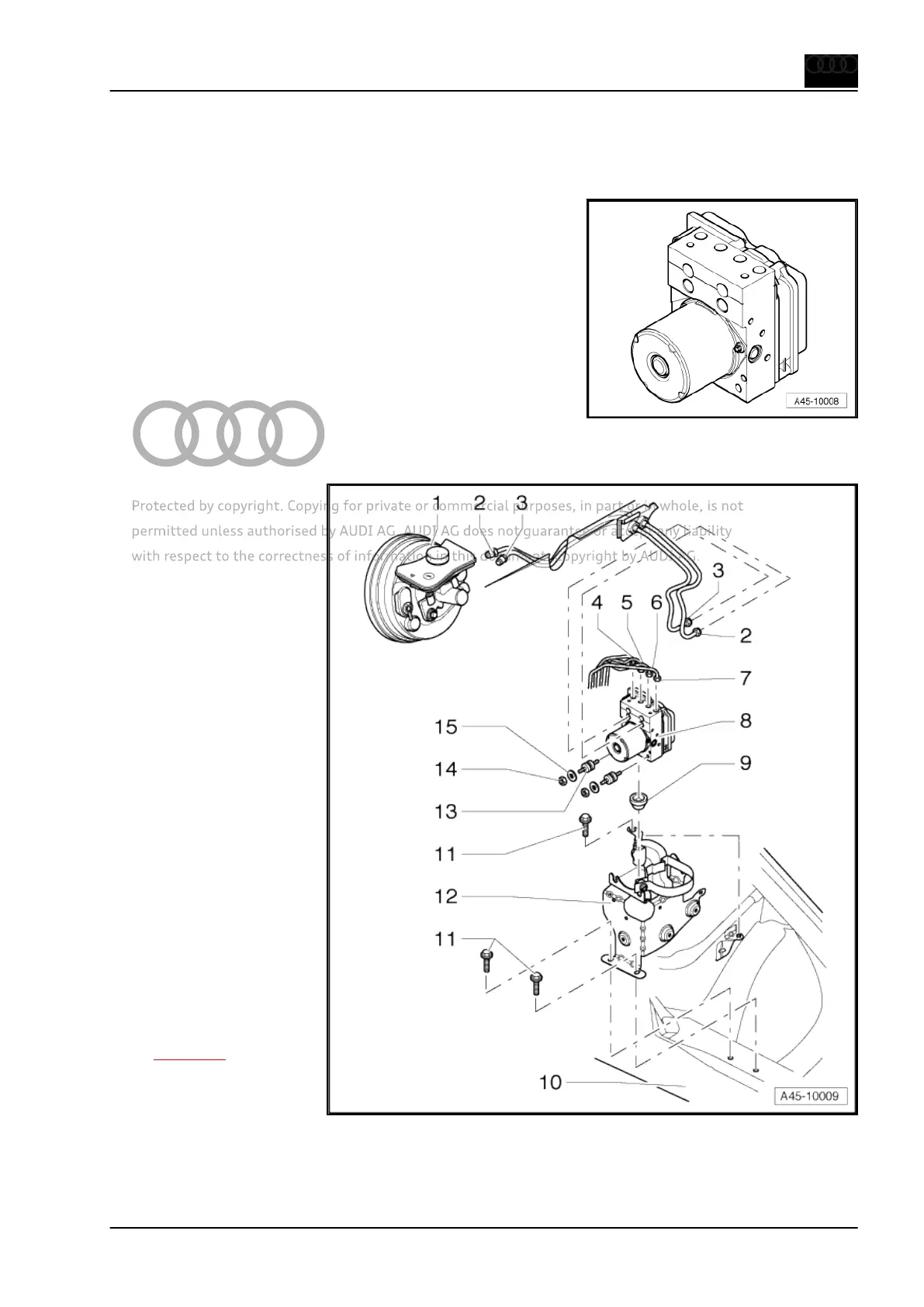

4.1 Hydraulic unit and brake lines
1 - Brake master cylinder and
brake servo
2 - Brake line
❑ Brake master cylinder/
primary piston circuit to
hydraulic unit
3 - Brake line
❑ Brake master cylinder/
secondary piston circuit
to hydraulic unit
4 - Brake line
❑ Hydraulic unit to front
right brake caliper
5 - Brake line
❑ Hydraulic unit to rear left
brake caliper
6 - Brake line
❑ Hydraulic unit to rear
right brake caliper
7 - Brake line
❑ Hydraulic unit to front
left brake caliper
8 - ABS hydraulic unit - N55-
with ABS control unit with EDL
- J104-
❑ With integrated brake
pressure sender
❑ Removing and installing
⇒ page 36
❑ Removing and installing
(S6 and RS 6)
Audi A6 2005 ➤ , Audi A6 Avant 2005 ➤
Brake system - Edition 04.2019
4. Anti-lock brake system (ABS) Bosch 8.0 35
