Audi A6 2005 - Removing and Installing Brake Pedal - Right-Hand Drive Vehicles

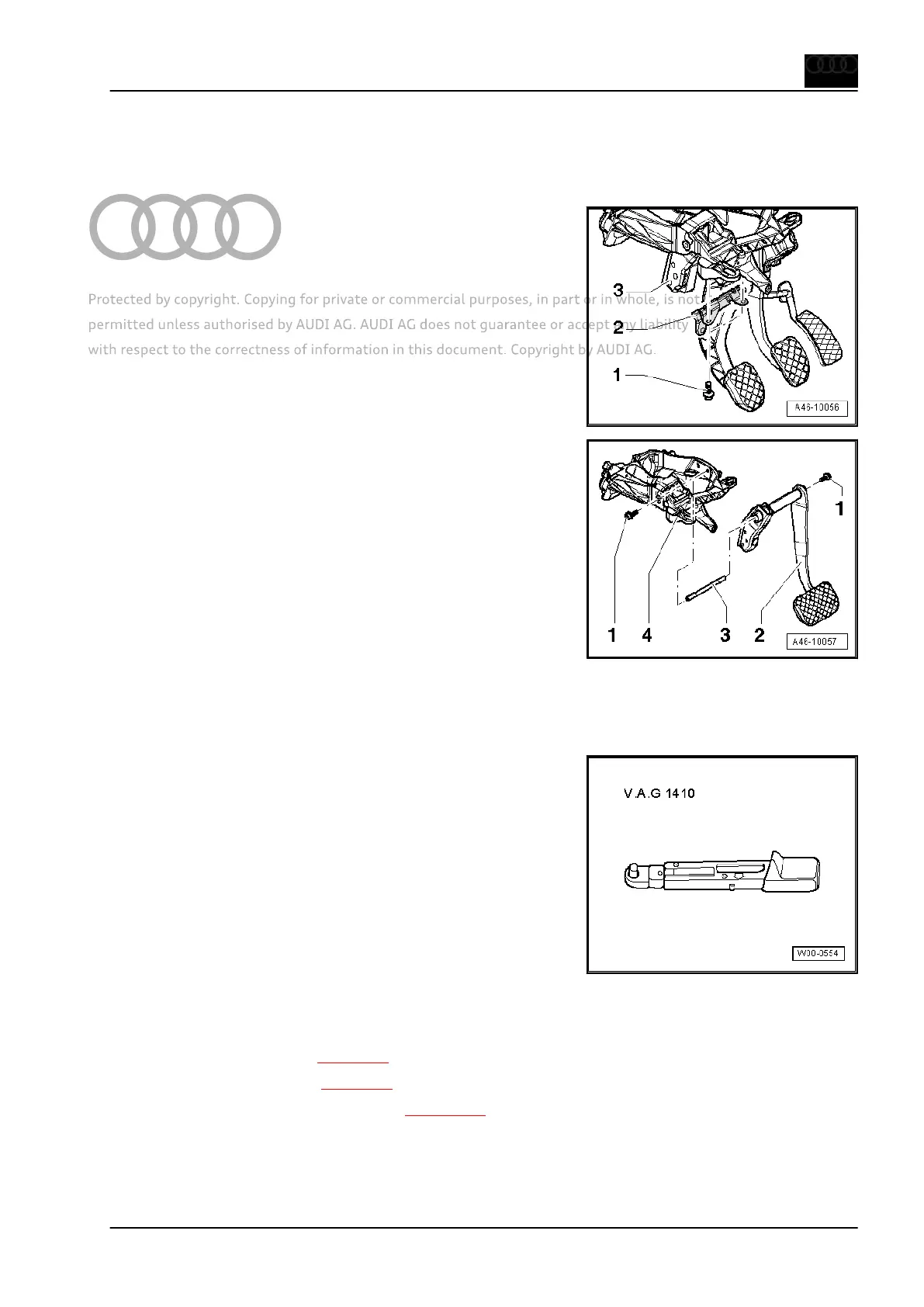

Installation of bracket for brake light switch
– Socket head bolt -1-, tightening torque: 9 Nm
– Item -2-: Bracket
– Item -3-: Pedal bracket
Installation of brake pedal (automatic gearbox)
– Socket head bolt -1-, tightening torque: 25 Nm
– -2- Brake pedal (right-hand drive vehicles)
– -3- Pivot pin
– -4- Pedal bracket
9.1 Removing and installing brake pedal -
right-hand drive vehicles
Special tools and workshop equipment required
♦ Torque wrench - V.A.G 1410-
Removing
– Remove driver's storage compartment. ⇒ Rep. gr. 68
– Remove brake light switch ⇒ page 50 .
– Remove brake light sensor ⇒ page 51 .
– Separate brake pedal from brake servo ⇒ page 118 .
– Remove hexagon socket head flange bolt -1-.
Audi A6 2005 ➤ , Audi A6 Avant 2005 ➤
Brake system - Edition 04.2019
9. Exploded view - brake pedal, right-hand drive vehicles 117
