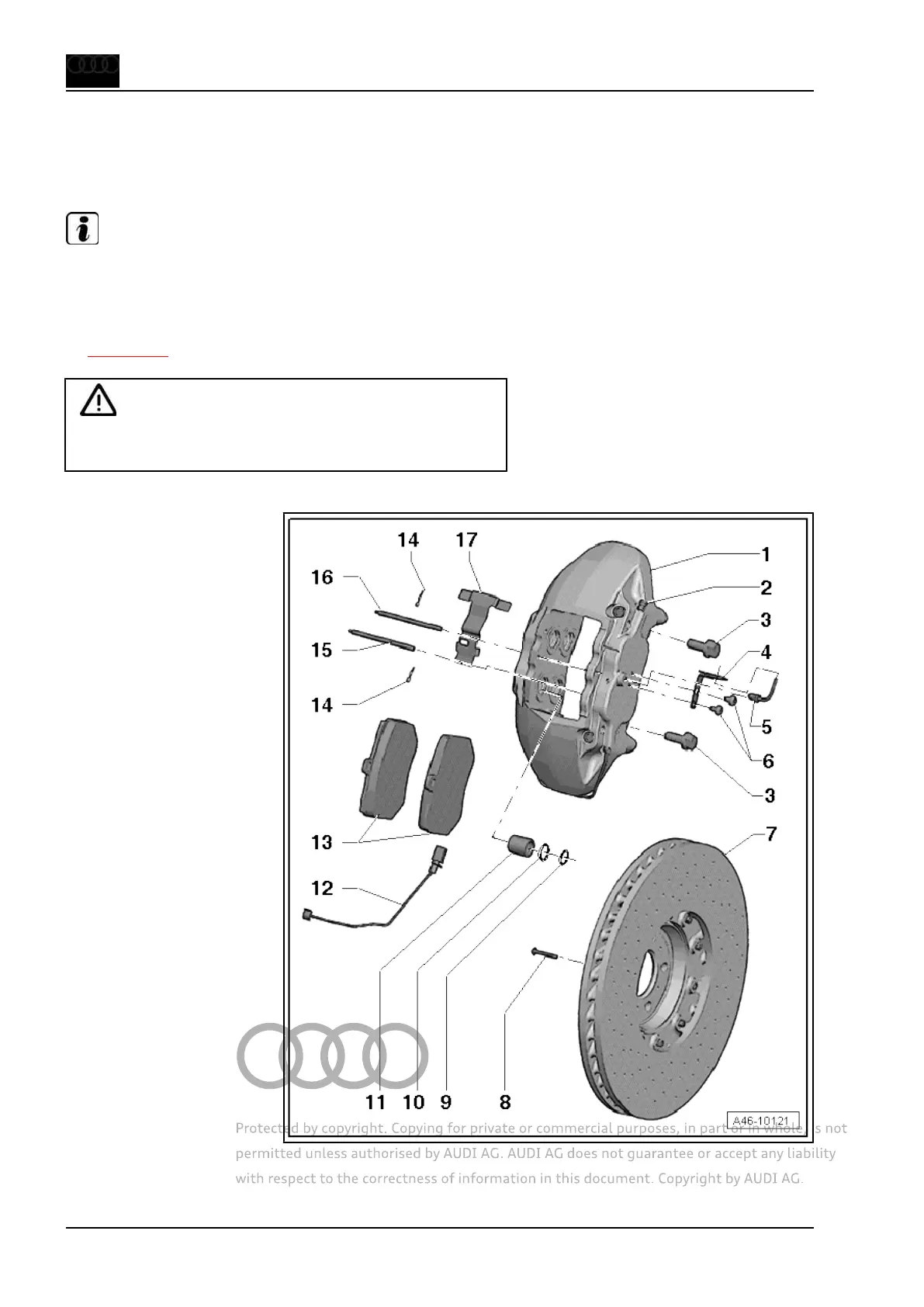

6 Servicing front brake calipers (ce‐
ramic brakes) - RS 6
Note
♦
Install complete repair kit when servicing.
♦
Apply a thin coat of assembly paste to brake cylinders, pistons
and seals. ⇒ Parts catalogue
♦
After servicing and installing brake caliper, bleed brake system
⇒ page 154 .
WARNING
Do not perform any repairs on the brake caliper other than
“Removing and installing pistons for front brake caliper”.
1 - Brake caliper
2 - Bleeder screws
❑ Each front brake caliper
has two bleeder screws.
Bleed brake caliper at
each bleeder screw.
3 - Bolts
❑ 196 Nm
Always use new bolts
4 - Brake line retainer
5 - Brake line
9 - Seal
10 - Seal
11 - Brake piston
Audi A6 2005 ➤ , Audi A6 Avant 2005 ➤
Brake system - Edition 04.2019
146 Rep. gr.47 - Brakes - hydraulics
