4 Brake calipers 2FNR 42 AL
4.1 Servicing brake calipers
Note
♦ Install complete repair kit when servicing.
♦ Apply a thin coat of assembly paste to brake cylinders, pistons
and seals. ⇒ Parts catalogue
♦ After servicing and installing brake caliper, bleed brake system
⇒ page 154 .

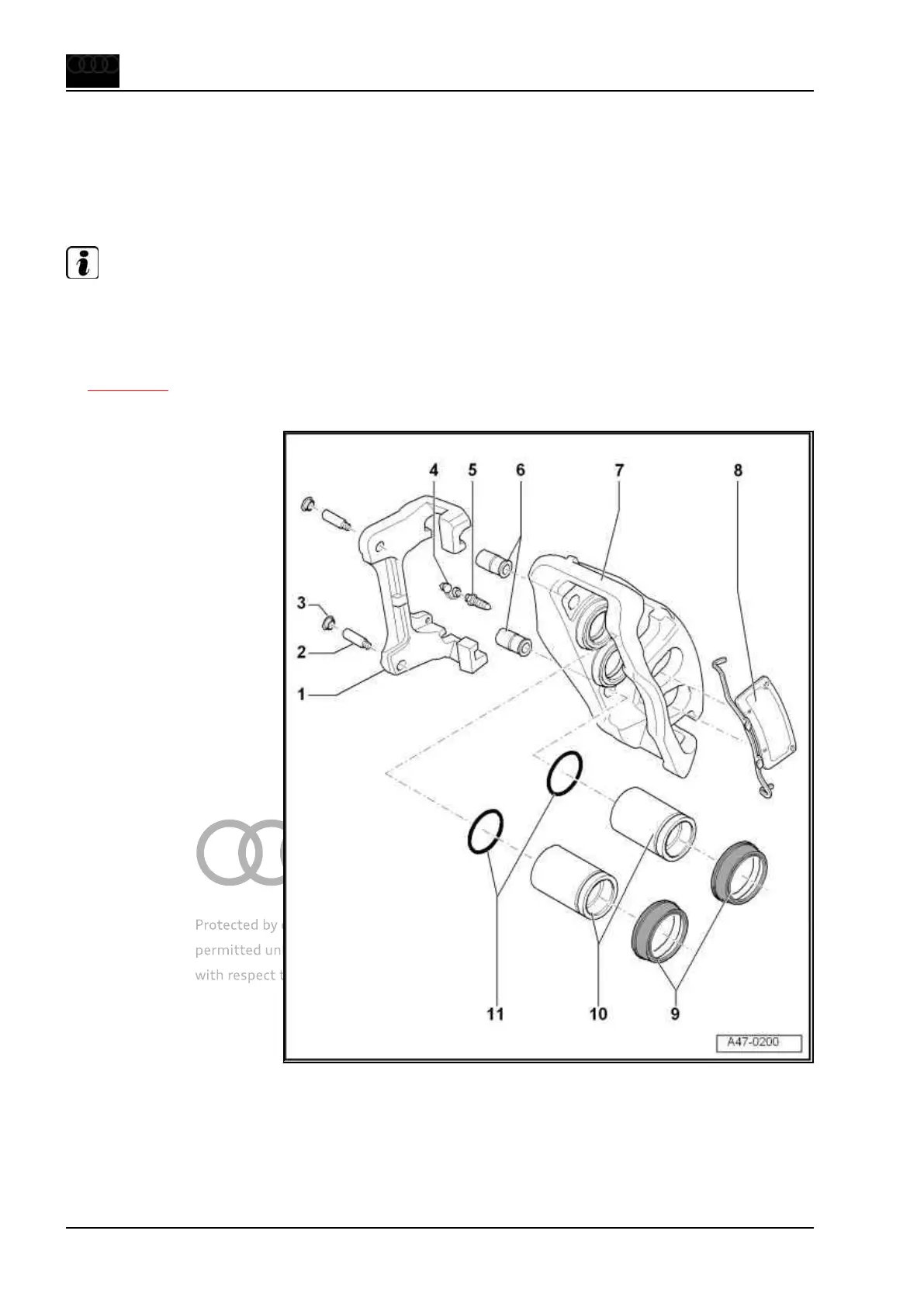

1 - Brake carrier
❑ Bolt to brake caliper
housing
2 - Guide pin
❑ Tightening torque: 30
Nm
3 - Caps
❑ Insert into bearing bush
4 - Protective cap
❑ Push onto bleeder valve
5 - Bleeder valve
❑ Tightening torque: 10
Nm
❑ Before screwing in,
grease thread lightly
with lithium grease ⇒
Parts catalogue
6 - Bearing bush
❑ Insert into brake caliper
housing
7 - Brake caliper housing
8 - Retaining spring
❑ Note correct installation
position.
❑ Engage onto both brake
caliper housing studs
and onto outer pad re‐
taining spring.
9 - Protective cap
❑ Do not damage when in‐
serting piston
❑ Apply a thin coat of lithium grease
10 - Piston
❑ Apply a thin coat of lithium grease to piston
11 - Seal
❑ Grease with assembly paste
Audi A6 2005 ➤ , Audi A6 Avant 2005 ➤
Brake system - Edition 04.2019
138 Rep. gr.47 - Brakes - hydraulics
