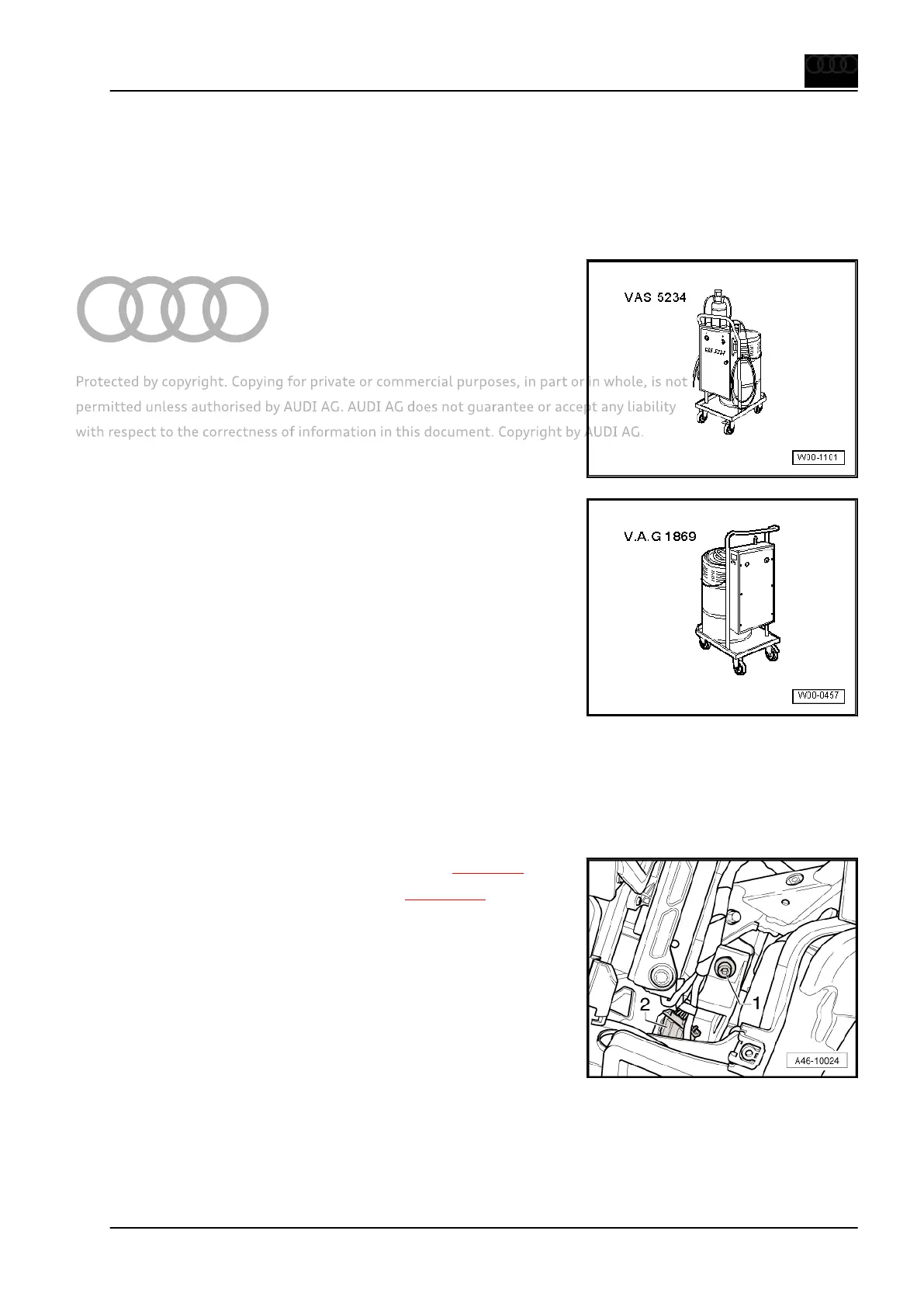

11 Brake servo
11.1 Removing and installing brake servo
Special tools and workshop equipment required
♦ Brake filling and bleeding equipment - VAS 5234- or
♦ Brake filling and bleeding equipment - V.A.G 1869-
♦ Upgrade kit and extraction unit - V.A.G 1869/4-
♦ Sealing plugs (repair kit) - 1H0 698 311 A-
– Remove driver's storage compartment. ⇒ Rep. gr. 68
– Move adjustable steering column all the way out (opposite to
direction of travel)
– Unplug brake light switch -2- and remove, see ⇒ page 50 .
– Separate brake pedal from brake servo ⇒ page 118 .
Audi A6 2005 ➤ , Audi A6 Avant 2005 ➤
Brake system - Edition 04.2019
11. Brake servo 165
