In the digital domain:
.
Jitter amplitude and frequency
.
Digital data activity and integrity
.
Sample rate, amplitude, and delay of digital carrier signal
.
Status Bits
The ATS-1 Dual Domain can sweep most of these measurements
across a user-specified frequency or amplitude range and display a
graph of the results. The graph top and bottom values may be set by
the user, even after a sweep, with the data dynamically re-scaling.
After sweeping, a cursor may be used to provide numeric readout of
any point on the graph.
Printer support is provided, allowing printout of high-resolution graphs,
fast screen dumps, numerical data from sweeps or self-test, and
printout of bargraph displays.
The ATS-1 Dual Domain is capable of generating low-distortion sine
and square waveforms, plus an intermodulation distortion test signal
(when the intermodulation distortion option is installed).

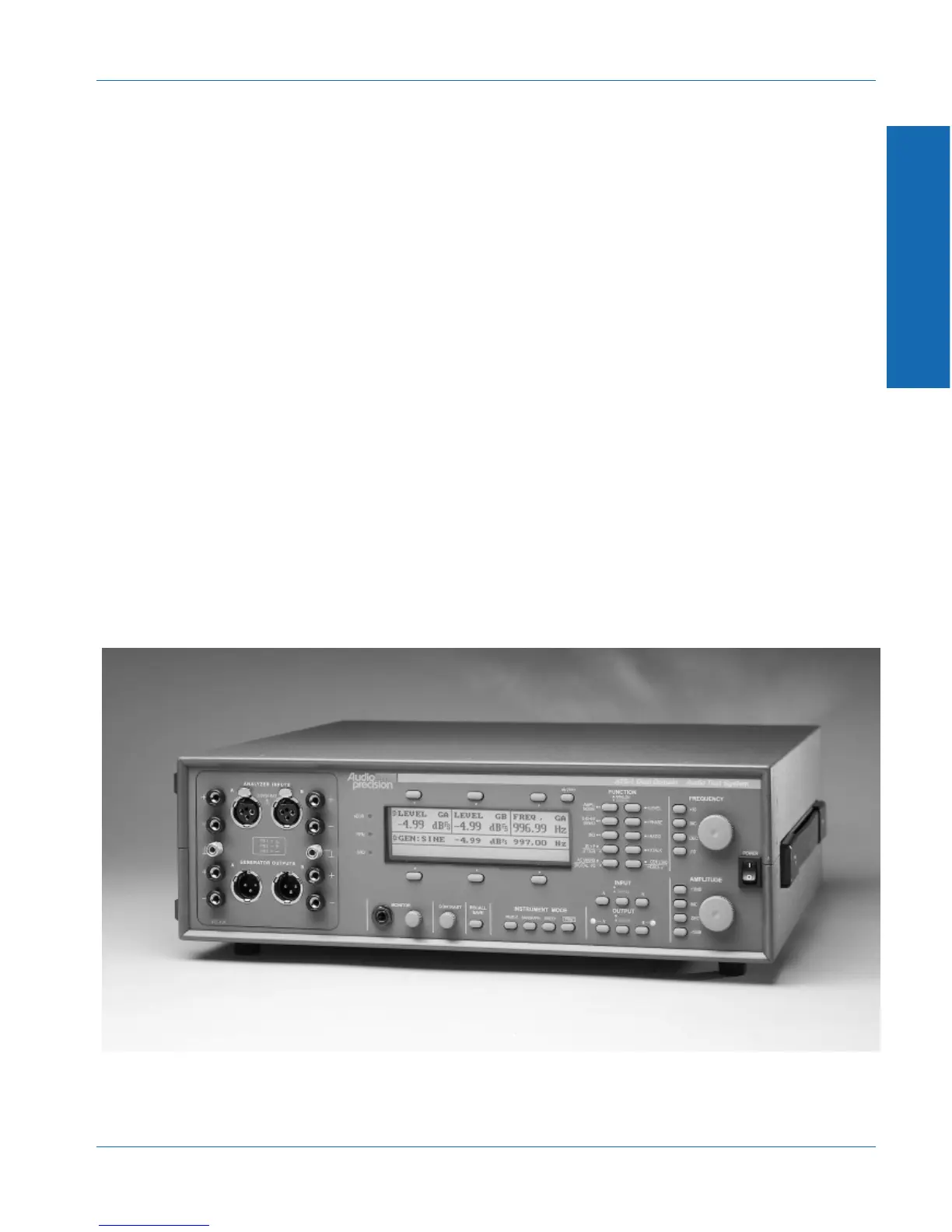

Figure 1-1. ATS-1 Dual Domain
