Operational Overview
Front Panel Controls and Connectors
The ATS-1 Dual Domain front panel controls are grouped as shown in
Figure 3-1. Each group is summarized in the following subsections.
FUNCTION Keys
The FUNCTION keys control the internal configuration of the
instrument. Each FUNCTION key corresponds to a particular
measurement function, such as Amplitude, THD+N, etc. A few of the
FUNCTION keys will invoke a second measurement functions with a
second press of the key. The particular measurement function invoked
by a FUNCTION key also depends on whether the Analyzer is in
analog or digital mode.
The FUNCTION keys and measurement functions are discussed in
detail in the section on controlling the Analyzer. See page 3-21.
AMPLITUDE
CONTROLS
SOFT KEYS
FUNCTION
KEYS
GPIB STATUS
INDICATORS
LCD
DISPLAY
MONITOR
CONTROLS
CONTRAST
CONTROL
RECALL/SAVE
KEY
INSTRUMENT
MODE KEYS
OUTPUT
CONTROL
KEYS
INPUT
CONTROL
KEYS
FREQUENCY
CONTROLS
DIGITAL
FREQUENCY
MONITOR CONTRAST
RECALL
SAVE
PRINT
PANELS BARGRAPH SWEEP
INSTRUMENT MODE
dBr ZERO
POWER
ADDR
REM
SRQ
ATS- Dual Domain Audio Test System
INPUT
OUTPUT
A
B
GEN LOAD
DATA
-10
INC
10
x
.
.
DEC
AMPLITUDE
DEC
+10dB
INC
-10dB
AB
AC MAINS
DIGITAL I/O
JITTER
W+F
XTALK
RATIOIMD
PHASE
SINAD
THD+N/
LEVEL
AMPL/
NOISE
FUNCTION
ANALOG
!
350Vpk MAX
CAT II
PIN 1 =
PIN 2 =
PIN 3 =
AB
AB
GENERATOR OUTPUTS
ANALYZER INTPUTS
dBr ZERO
KEY
POWER
SWITCH

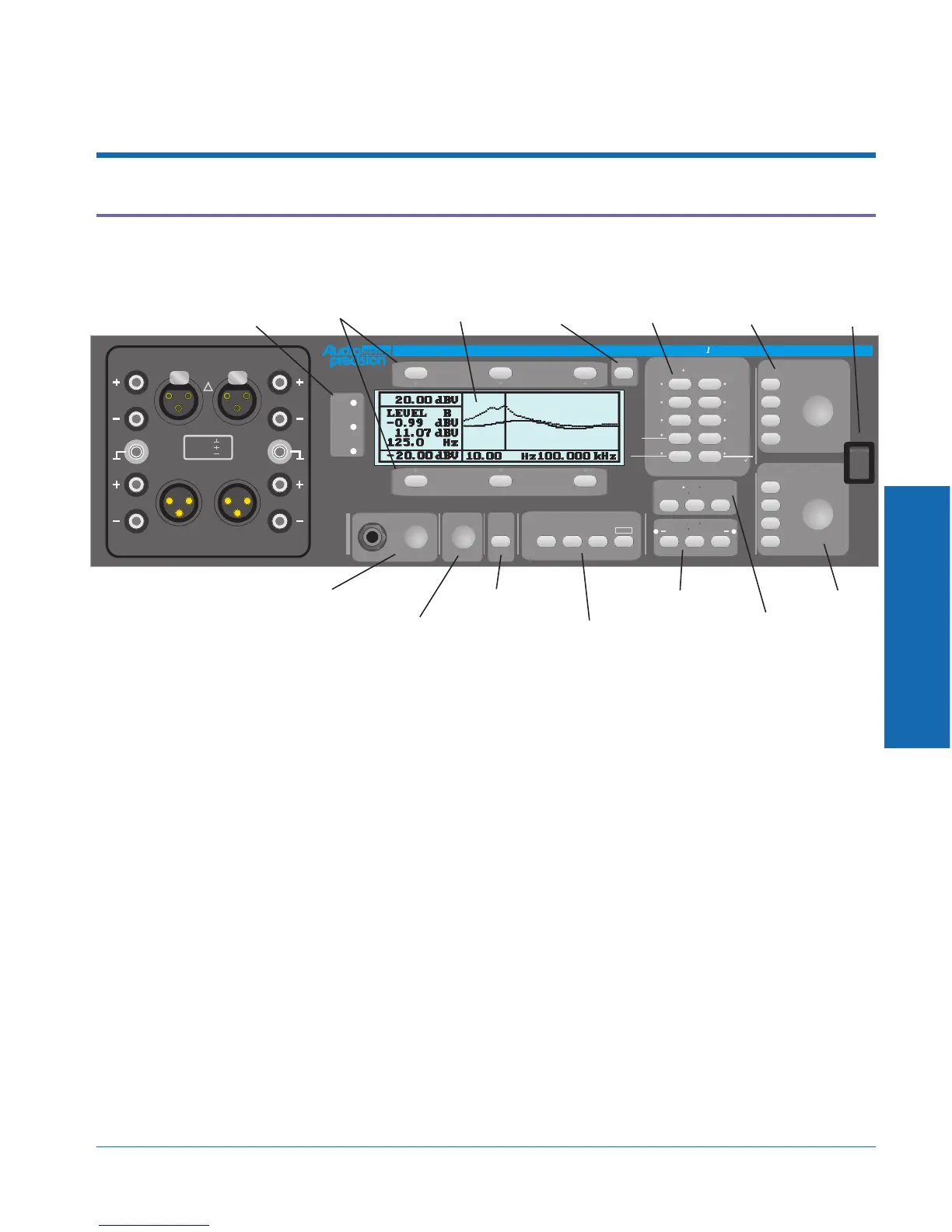

Figure 3-1. ATS-1 Dual Domain front panel key groups
3 Operation
ATS-1 Dual Domain User's Manual 3-1
