Self Test
The ATS-1 Dual Domain has the capability of performing a functional
self test. This can be run periodically to make certain that your
instrument is operating properly.
Before running the self test, let the instrument warm up for at least an
hour. The ATS-1 Dual Domain only performs to specifications after a
sufficient warm-up period, and some of the tests may fail if the
instrument is not fully warmed up.
To run the self test, you must first go to the Main Panel and select the
AC Mains function. To do this, perform the following steps:
Then press the lower left soft key. The following panel should appear:
DIGITAL
FREQUENCY
MONITOR
CONTRAST
RECALL
SAVE
PRINT
PANELS BARGRAPH SWEEP
INSTRUMENT MODE
dBr ZERO
POWER
ADDR
REM
SRQ
ATS- Dual Domain Audio Test System
INPUT
OUTPUT
A
B
GEN LOAD
DATA
-10
INC
10
x
.
.
DEC
AMPLITUDE
DEC
+10dB
INC
-10dB
A
B
AC MAINS
DIGITAL I/O
JITTER
W+F
XTALK
RATIOIMD
PHASE
SINAD
THD+N/
LEVEL
AMPL/
NOISE
FUNCTION
ANALOG
!
350Vpk MAX
CAT II
PIN 1 =
PIN 2 =
PIN 3 =
AB
AB
GENERATOR OUTPUTS
ANALYZER INTPUTS
If the word 'DIGITAL' is lit,
press this button once to
select analog mode. The
word 'ANALOG' should be lit.
1
2
3
Press the 'AC MAINS' button.
This will select the AC MAINS
measurement mode.
If you do not see this
screen, press 'PANELS'
until it appears.

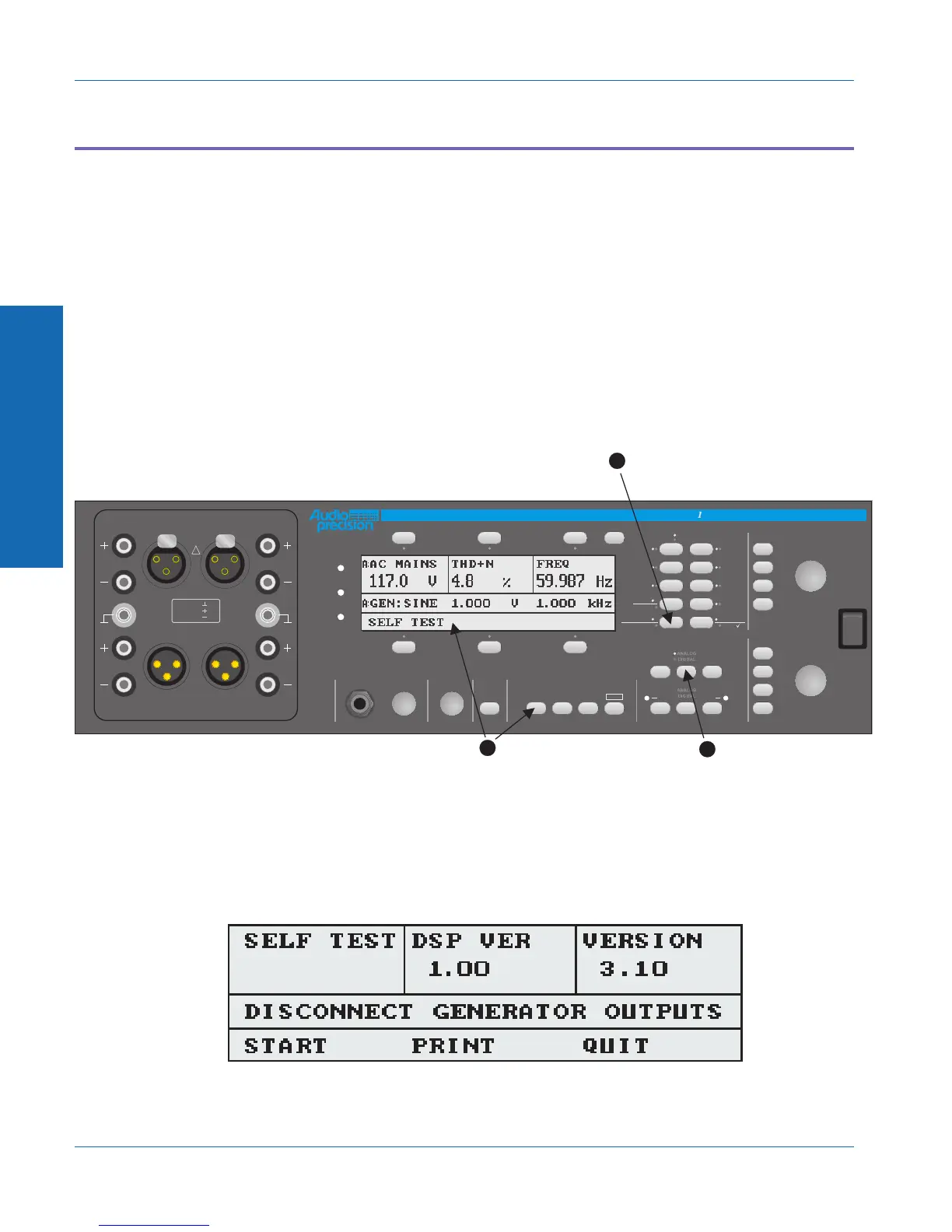

Figure 2-2. Steps to the main panel in AC Mains function
Figure 2-3. Self-test panel
2 Getting Started
Self Test Getting Started
2-4 ATS-1 Dual Domain User's Manual
