generator should be configured for a balanced uptput (either 50 Ω Bal
or 600 Ω Bal) on the Generator panel.
Unbalanced Connections with the XLR Connector Panel
Many devices use unbalanced connectors, such as the RCA (phono)
connector, the BNC, or the 1/4" Phone jack.
1 2
3
XLR Male
or Female
RCA/Phono Plug
2 Conductor shielded cable
Shield not connected this end
1 2
3
XLR Male
or Female
2 Conductor shielded cable
Shield not connected this end
Sleeve
Tip
1/4" Phone Plug
1 2
3
XLR Male
or Female
2 Conductor shielded cable
Shield not connected this end
BNC Connector
Examples:
1 2
3
XLR Male
or Female
2 Conductor shielded cable
Shield not connected this end
To Signal Conductor
To Ground

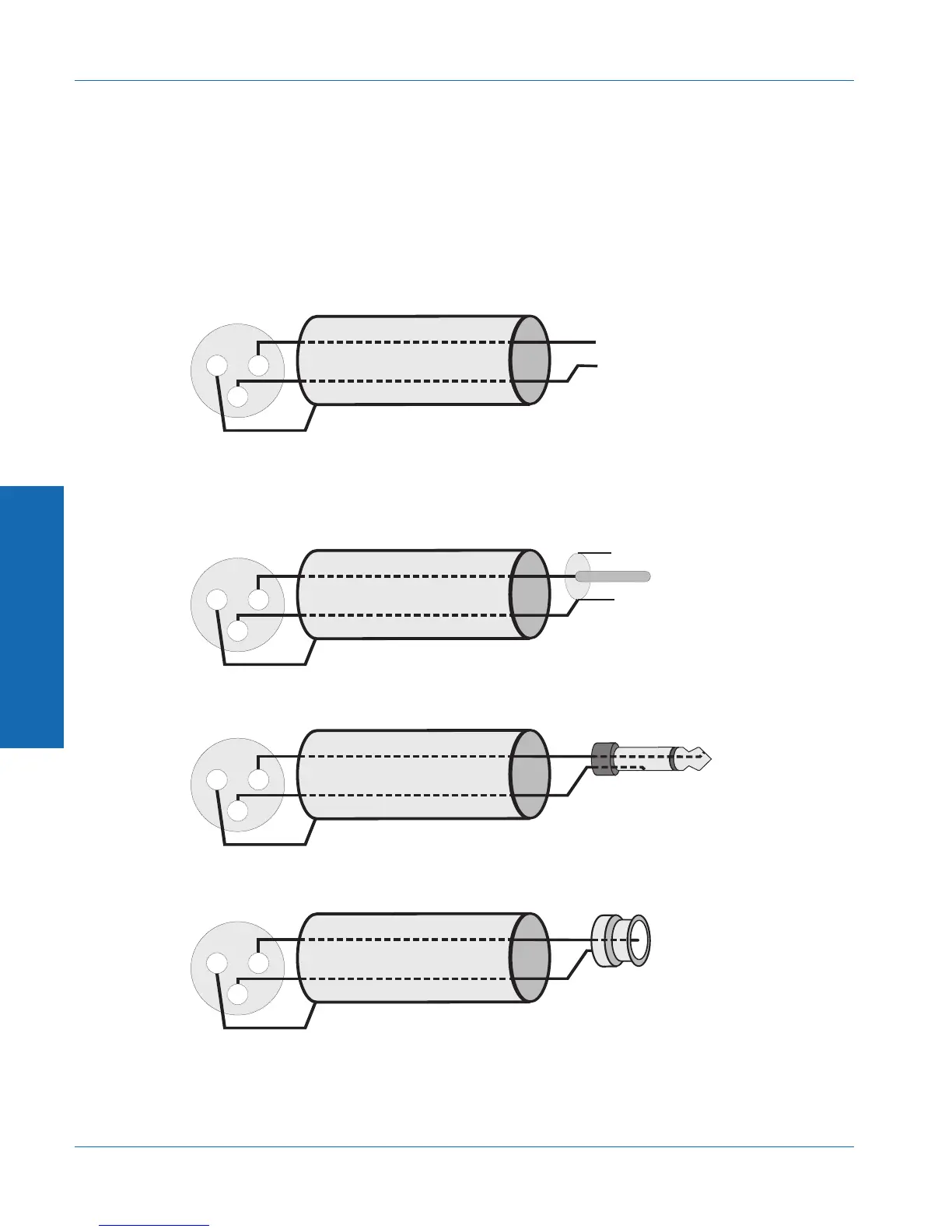

Figure 3-18. Preferred unbalanced cable connections
