Setup Panel
The Setup panel is available by several presses on the PANELS key.
It provides access to several parameters relating to the general

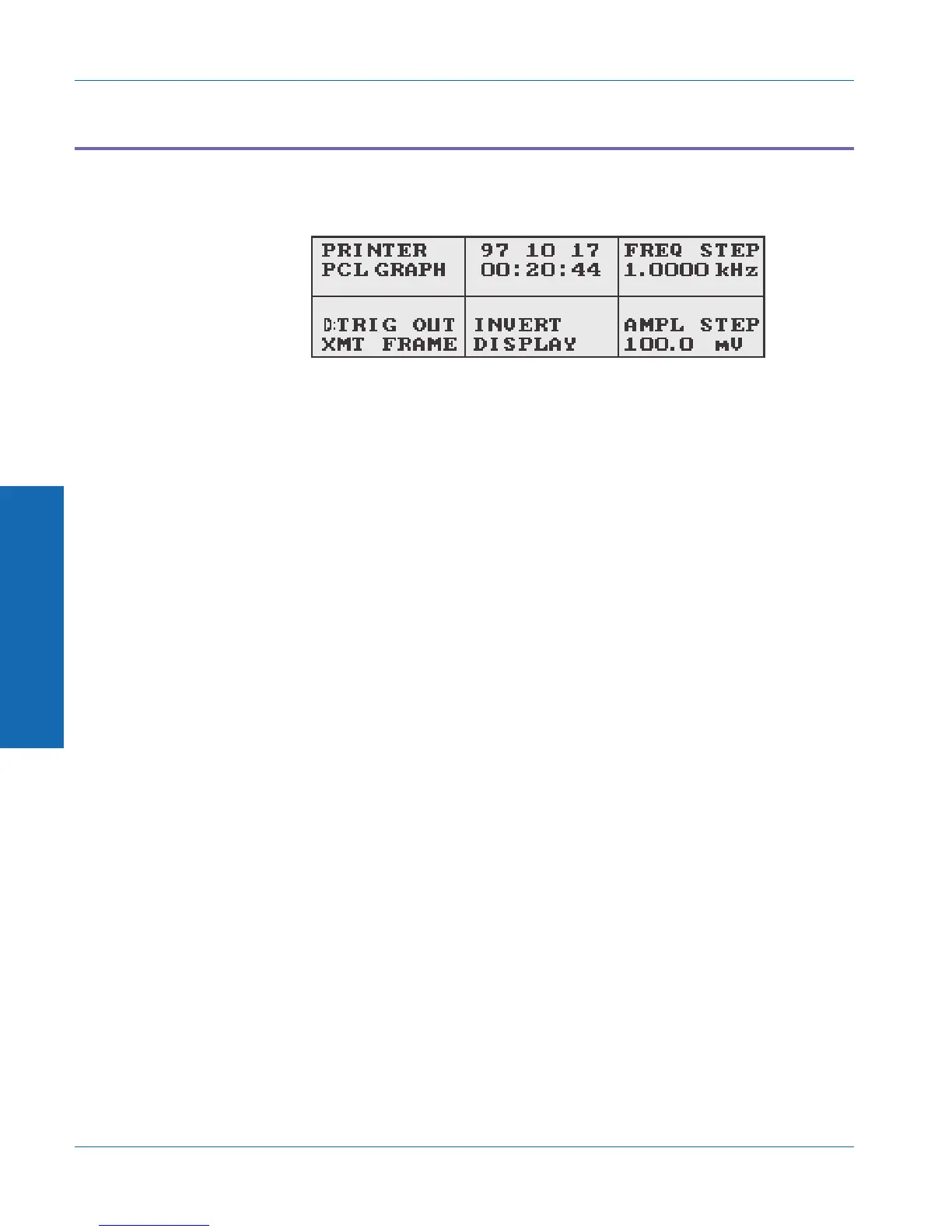

operation of the instrument. The Setup panel looks like this:
On the Setup panel are controls for the type of printer output, the date
and time, the digital trigger output, display inversion, and the step
sizes used by the INC and DEC keys.
The upper left soft key controls the print mode. The proper print
mode to select depends on the type of printer connected to the port.
The two options are ‘PCL Graph’ and ‘IBM Graph’.
The upper center section of the display shows the real-time clock. The
date is shown on top, in the order year-month-day. The time is
shown on bottom, in 24-hour format as Hours:Minutes:Seconds.
To set the date or time, press the upper center soft key. The year will
be highlighted. The year can be changed using the FREQUENCY
controls. The INC and DEC keys will change the year in increments
of 1 year. The x10 and ÷10 keys will change the year in increments of
10 years. The FREQUENCY knob may also be used.
When the year is set correctly, press the upper center soft key again.
The month will be highlighted, and can be set in a similar fashion.
The day, hour, minute, and second can be set with subsequent
presses of the soft key. The clock will restart as soon as the soft key is
pressed with the seconds highlighted.
The lower left of the display shows the source of output to the digital
trigger output. The trigger output can come from a number of
sources, controlled by the lower left soft key.
Figure 3-8. Setup panel
3 Operation
Setup Panel Operational Overview
3-10 ATS-1 Dual Domain User's Manual
