The upper left soft key is used to send line feeds or form feeds to the
printer. A quick press on the button will send a single line feed to the
printer, and the display colors will invert momentarily. This will cause
the printer to move down one line, usually to separate one printout
from the next. Holding the button for about a second will send a form
feed to the printer. This will cause the printer to eject the current page
and begin a new page. While you are holding the upper left soft key,
the display colors will remain inverted. These actions do not return
you to the normal Sweep Panel, so they can be repeated several times
in succession if desired.
No matter what PRINT mode is chosen, the display colors will invert
while the ATS-1 Dual Domain is sending the data to the printer.
When the display returns to its normal color scheme, all the data has
been sent to the printer, so you may proceed to the next test. Even if
the printer is still printing, it has all the data in its own memory, so you
can safely do something else with the ATS-1 Dual Domain.
AGEN FREQ THD+N GA AGEN FREQ THD+N GA AGEN FREQ THD+N GA Ap
20.000 Hz 0.0008% 250.00 Hz 0.0010% 3.1500kHz 0.0012%
25.000 Hz 0.0010% 315.00 Hz 0.0010% 4.0000kHz 0.0011%
31.500 Hz 0.0010% 400.00 Hz 0.0009% 5.0000kHz 0.0012%
40.000 Hz 0.0010% 500.00 Hz 0.0009% 6.3000kHz 0.0012%
50.000 Hz 0.0012% 630.00 Hz 0.0009% 8.0000kHz 0.0012%
63.000 Hz 0.0011% 800.00 Hz 0.0009% 10.000kHz 0.0012%
80.000 Hz 0.0010% 1.0000kHz 0.0010% 12.500kHz 0.0013%
100.00 Hz 0.0010% 1.2500kHz 0.0010% 16.000kHz 0.0012%
125.00 Hz 0.0010% 1.6000kHz 0.0010% 20.000kHz 0.0014%
160.00 Hz 0.0010% 2.0000kHz 0.0010%
200.00 Hz 0.0010% 2.5000kHz 0.0012%
Figure 4-54. Table printout

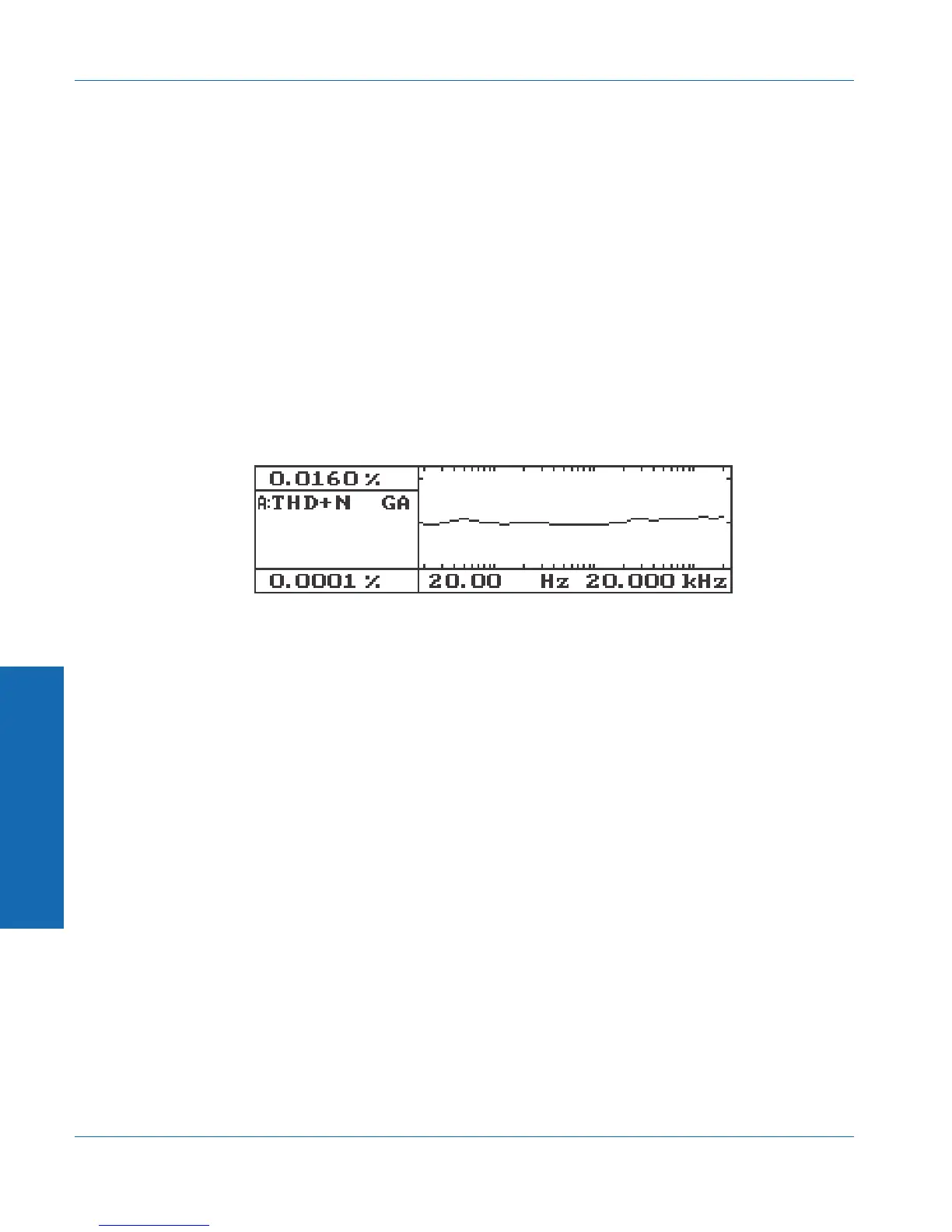

Figure 4-55. Screen dump printout
4 Functions
Printing Function Descriptions
4-60 ATS-1 Dual Domain User's Manual
