Function Descriptions
This section describes each measurement function in detail. The Main
Panel for each measurement function is shown, as well as a block
diagram of the measurement performed.
For measurements that are the same in both digital and analog
domains, only the analog is shown in the block diagram. The digital
function is essentially the same, except that it is implemented with DSP.
Amplitude
The Amplitude function is selected by pressing the FUNCTION
AMPL/NOISE key. It is available in both analog and digital modes. It
provides a measurement of the amplitude of an analog signal or of the
the audio embedded in a digital signal.

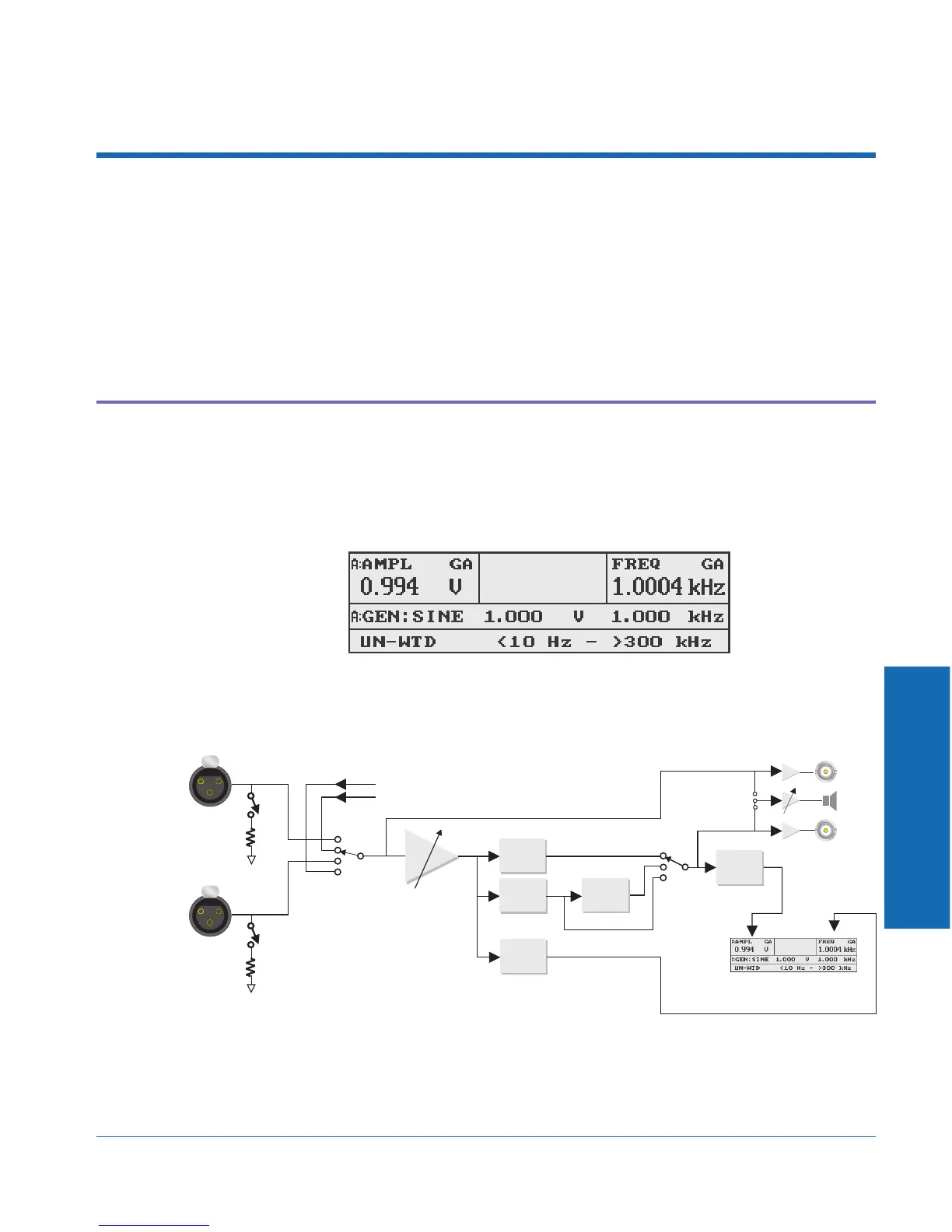

Figure 4-1. Main Panel in AMPL Function
FREQUENCY
COUNTER
BAND PASS
FILTER
WEIGHTING
FILTERS
PRIMARY
READING
DETECTOR
BANDWIDTH
LIMITING
FILTERS
GENERATOR MONITORS
B
A
INPUT
RANGING
INPUT
TERMINATION
INPUT
TERMINATION
LCD DISPLAY
INTERNAL
JUMPER
INPUT
MONITOR
SPEAKER/
HEADPHONE
READING
MONITOR
CHANNEL A
CHANNEL B
Figure 4-2. Block Diagram of Analog AMPL Measurement
4 Functions
ATS-1 Dual Domain User's Manual 4-1
