AudioCodes Mediant 800 MSBG - Rear Panel; Figure 2-2: Rear Panel; Table 2-3: Rear-Panel Description

Version 6.2 13 February 2011
Installation Manual 2. Installing the Device
2.1.3 Rear Panel
The device's rear panel is shown in the figure below and described in the subsequent table.

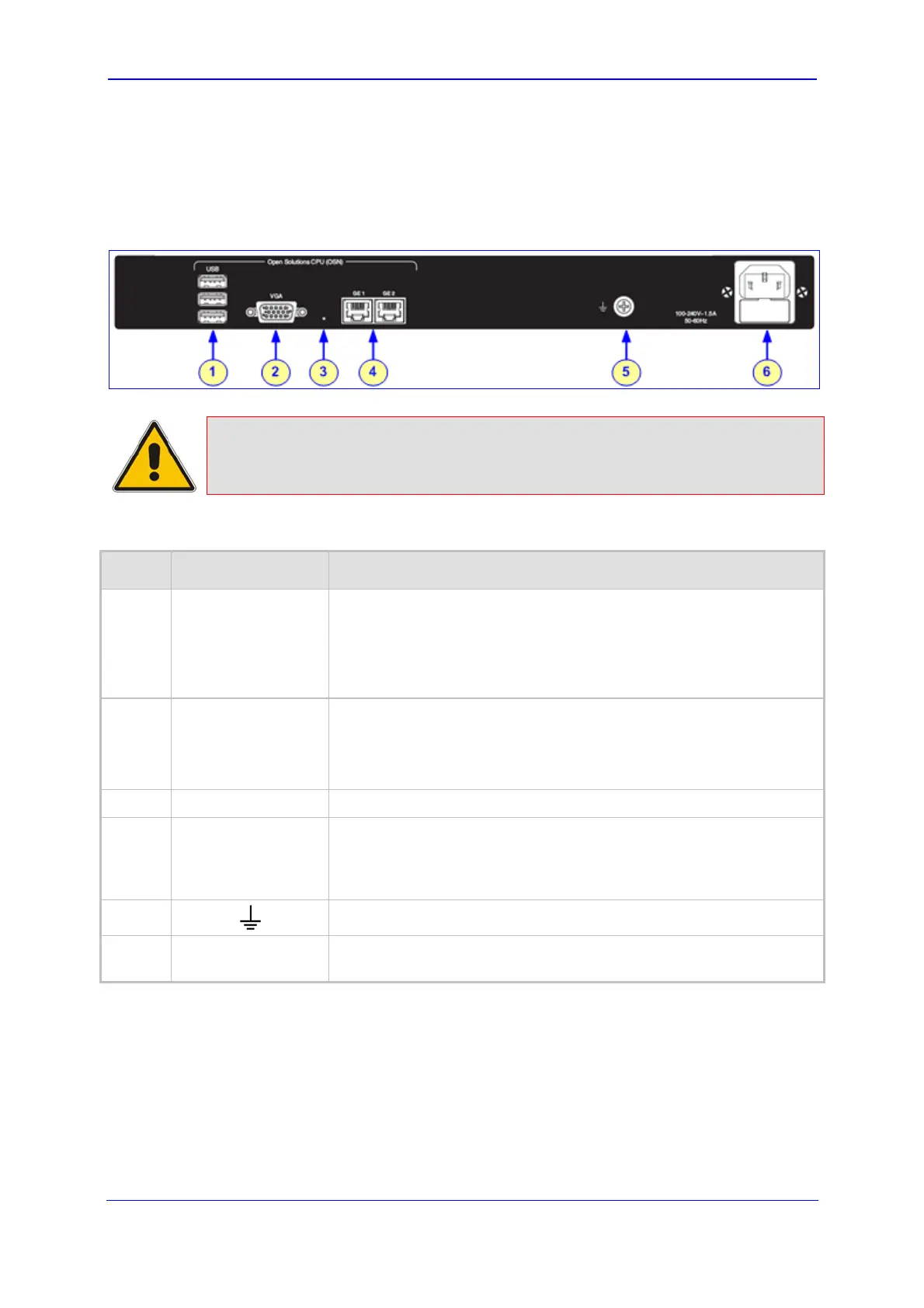

Figure 2-2: Rear Panel
Note: The figure above is used only as an example. The OSN server ports are
available only if ordered.
Table 2-3: Rear-Panel Description
Item # Label Description
1
OSN USB
Three USB ports (Standard-A type) for connecting computer
peripherals (e.g., mouse and keyboard). These are used when
implementing the OSN.
Note: These ports are available only if the device is equipped with
the OSN server (customer ordered).
2
OSN VGA
15-Pin DB-type female VGA port for connecting to a monitor
(screen). This port is used when implementing the OSN.
Note: This port is available only if the device is equipped with the
OSN server (customer ordered).
3
-
Reset button for resetting the OSN server.
4
GE 1
GE 2
Two 10/100/1000Base-T Ethernet ports (RJ-45) for connecting
directly to the OSN server. For example, one port can be connected
to the LAN (to IP Phones) and the second port to the WAN interface
(to an IP PBX).
5
Protective earthing screw.
6
100-240V~1.5A
50-60Hz
3-Prong AC power supply entry.
