4. CONNECTIONS
POWER
POWER
OFF
ON
POWER
POWER
OFF
ON

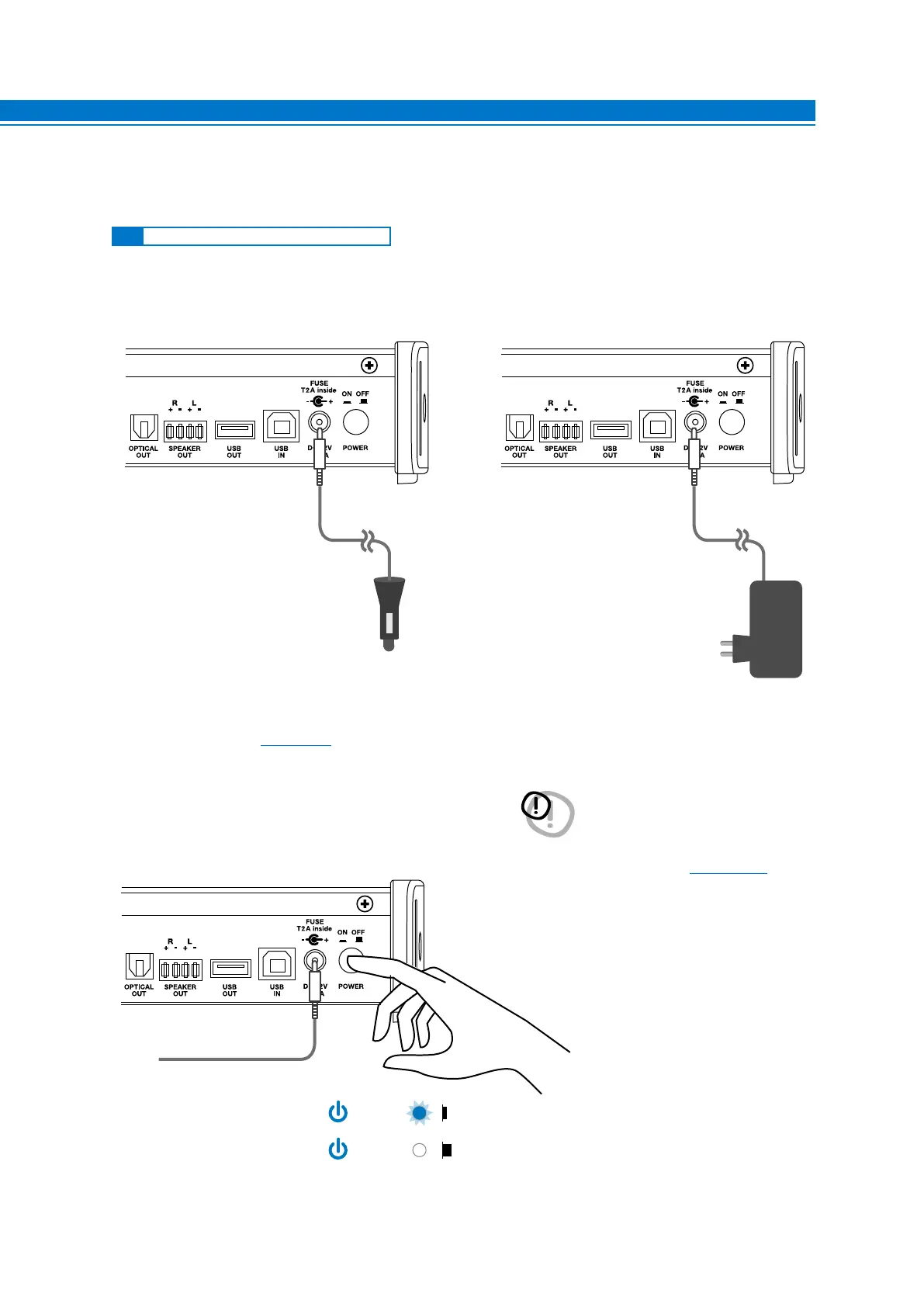

1. POWER SUPPLY BY 12V DC PLUG IN
3. SWITCHING ON THE BIT TUNE
2. POWER SUPPLY BY POWER ADAPTER
Note: The bit Tune is protected internally with a
2A Cylindrical fuse inside the product.
For its replacement, see section 9.5 of this
manual.
*The 110 - 220 VAC universal adapter comes
with adapters for sockets in EUROPE, UK, USA,
ASIA.
*
to power supply
PUSH TO TURN ON
OR OFF
4.1 POWER SUPPLY AND SWITCHING ON
WARNING! If you use mains adapter for
certain measurements it could
be necessary to connect the ground
cable (supplied in the product
packaging), between the car battery
and the bit Tune (see section 7.9).
