USER’S MANUAL / bit Tune /
77

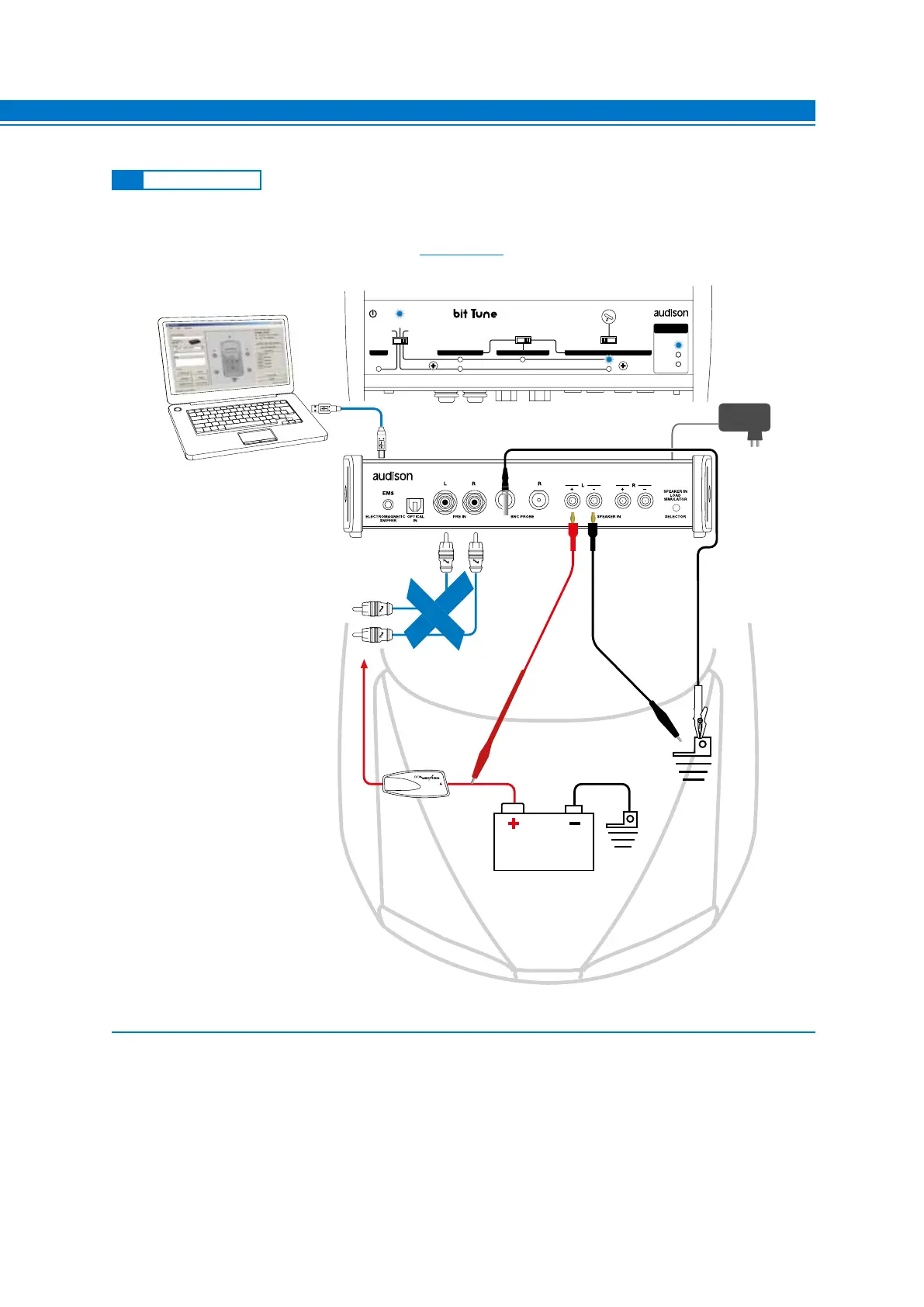

This section highlights the steps for measuring the voltage drop of the car’s battery, during the engine ignition
phase or during the operation of the audio system (see sect. 6.2.4.6).
EMS
PC ANALYZER
LINE NOISE
POWER
SEGNAL INPUT
SELECT
RIGHT
VOLUME
MONITOR
47 OHM
SPK SYM
NO LOAD
LEFT
PRE IN BNCSPK INPROBE
MIN •• MAX
LOAD SIMULATOR
SPEAKER IN
12V
1. The measurement operation has to be performed with the car engine off, with battery chargers disconnected from
the car battery and with radio-frequency devices away from the passenger compartment.
- Turn on the bit Tune powering it with the power supply adapter and connect the USB cable to the PC.
- Open the bit Tune PC software clicking on the icon on the PC Desktop selecting either the “bit Tune + Processor”
mode, or the “bit Tune” mode.
TO THE SYSTEM
POWER SUPPLY
BATTERY SUPPLY
AC ADAPTOR
BATTERY
FUSE HOLDER
GROUND
GROUND
7
7.9 BATTERY SCOPE
DON’T CONNECT PRE IN
CABLE INPUTS WHEN
USING SPK IN INPUTS
* BNC T
ADAPTER
*
To Next Page
