Audison bit Tune - Signal Level Check (with Processor)

USER’S MANUAL / bit Tune /
61
*
The Level Check verification procedure must be performed in systems where the sensitivity of the amplifiers has
already been set in an optimum manner, see sect. 7.4.1. The Level Check is part of the Auto EQ + Auto Time Alignment
procedure, but can be used independently for further verifications.
7.4.2 CHECKING THE SIGNAL LEVELS IN THE AUDIO SYSTEM: LEVEL CHECK
*
PHONE
REM
IN
REM
OUT
12V
KEY
SW
INPUTS
MUTE IN FL FR RRRL
AD Link
AC Link
*
DIGITAL
SIGNAL
OUTPUTS
AUX INPUTS
AUX 1 INPUTS
AUX INPUTS
SIGNAL INPUTS
SIGNAL INPUTS
SIGNAL INPUTS
SIGNAL
OUTPUTS
DIGITAL SIGNAL
OUTPUTS

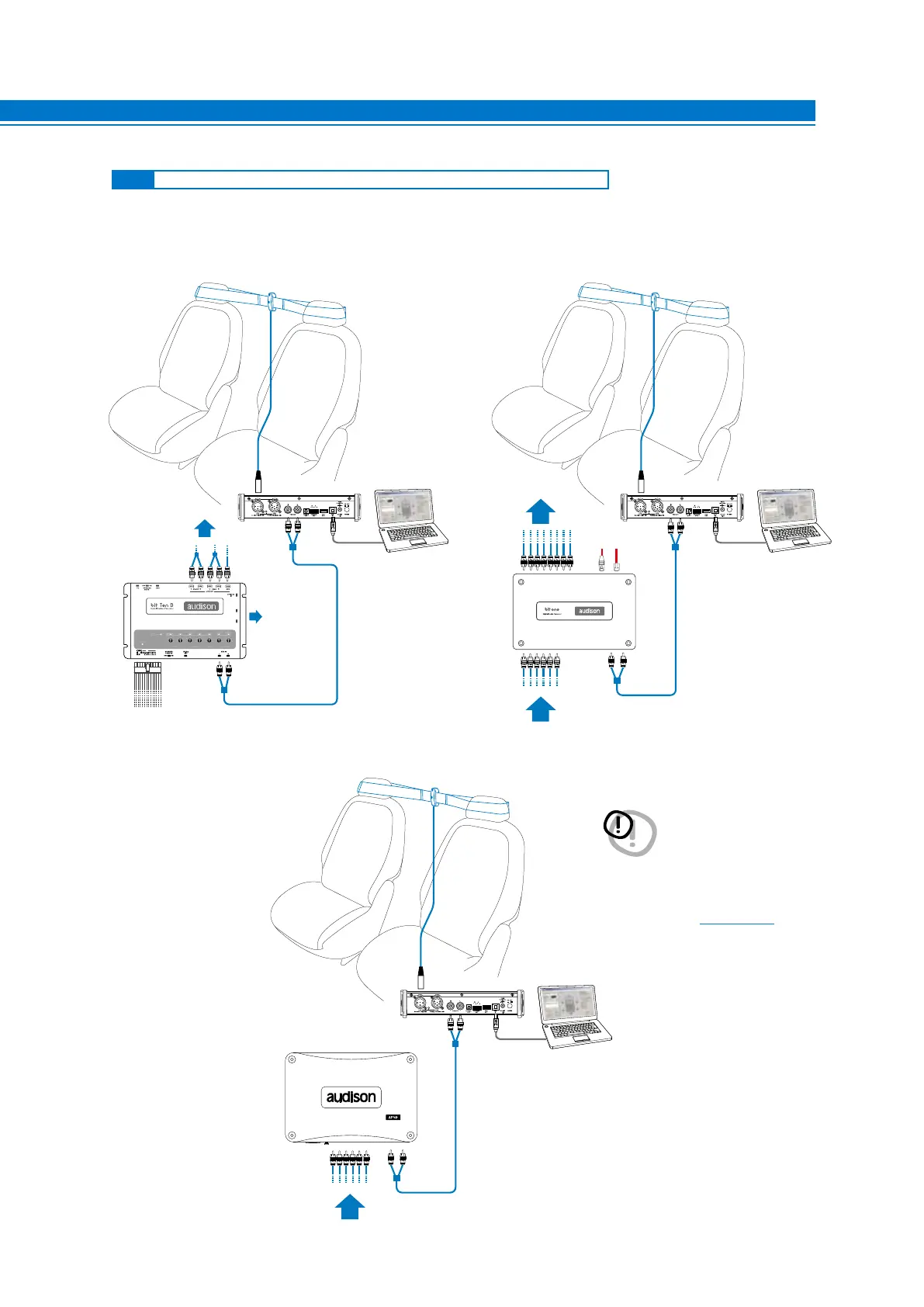

Fig 1. Fig 2.
Fig 3.
IMPORTANT: In the processors you
should enable the AUX input
if you use a bit Ten/D or AUX1
if you use a bit One through
PC software. This can be disabled
after the measurements. If you want to
connect the bit Tune to AP bit amplifiers to
perform measurements, but the AUX input
port is already occupied, you can use the
OPTICAL input port
(see section 4.5.6)
7
