USER’S MANUAL / bit Tune /
83
Acting on the LOAD SIMULATOR SPEAKER IN button, find out in which condition you have an acoustic signal on
the bit Tune’s internal speaker, selecting the L/R switch.
Repeat for the REAR section, if present.

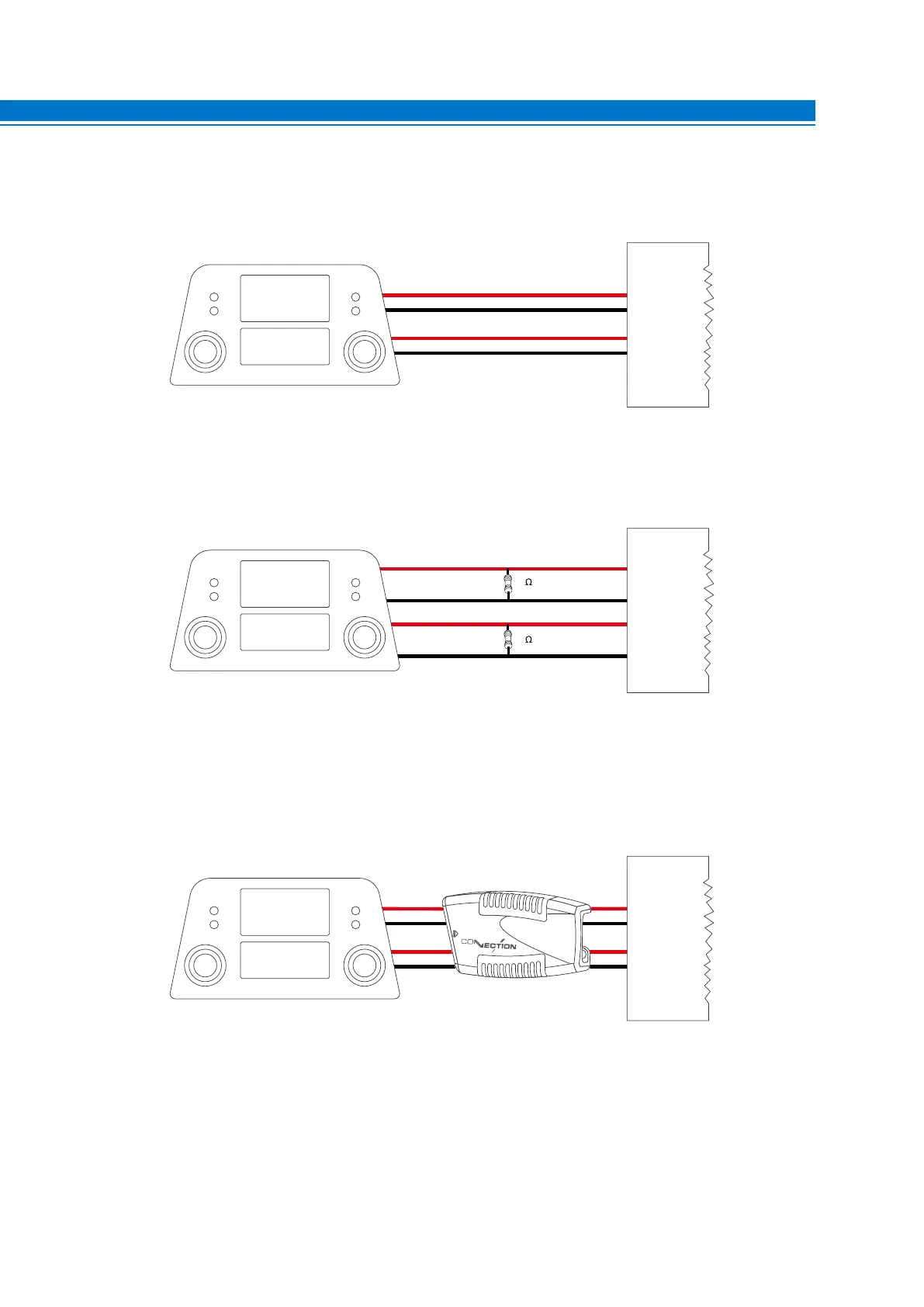

NO LOAD: The source does not require any load.
OEM
SOURCE
HI LEVEL OUTPUTS
HI LEVEL OUTPUTS
HI LEVEL
OUTPUTS
PRE IN
AMPLIFIER or
PROCESSOR
SPK SYM: The source requires an inductive load simulating the speaker’s impedance.
One possible solution is to interpose a Connection SLI 2/4 decoupling-transformer between the source and the
device equipped with PRE inputs.
OEM
SOURCE
AMPLIFIER or
PROCESSOR
CONNECTION
SLI 2/4
PRE IN
8
47 OHM: The source requires a 47 Ohm - 5 W resistance on the outputs.
OEM
SOURCE
PRE IN
AMPLIFIER or
PROCESSOR
47 5 W
47 5 W
