- 6P10 PILOT MANUAL
-
34
APPENDIX
A1 - Technical speci cations
A1.1 - General characteristics
A1.2 - UE declaration

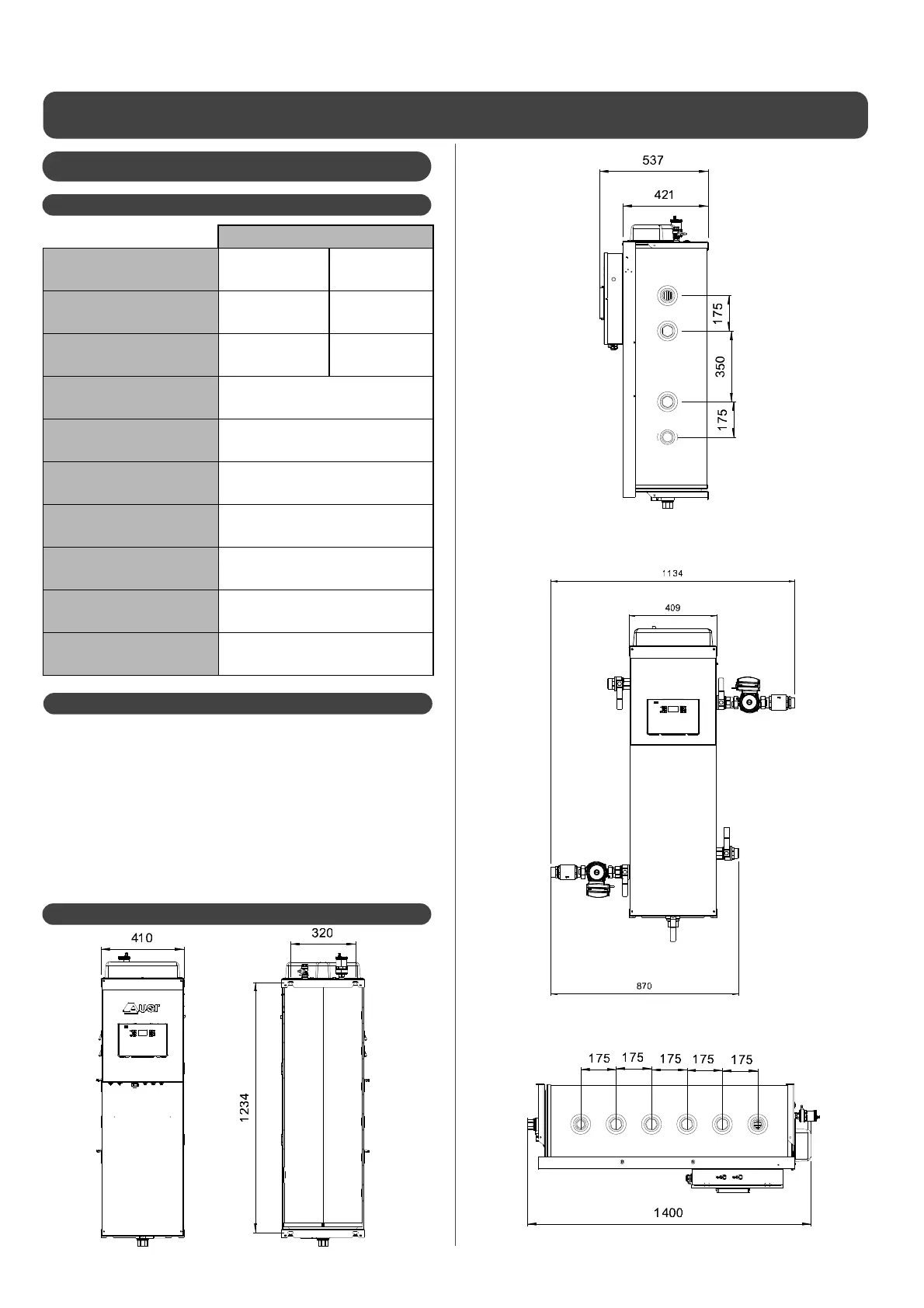

A1.3 - Dimensions
6P10
Electrical supply 230V mono 400V tri
Power supply cable cross-
section
3 G 6 mm² up to
3 G 10 mm²
5 G 2.5 mm² up
to 5 G 4 mm²
Circuit braker 32A 16A
Bu er tank 78L
Dimensions (W x H x D) 410 mm x 1512mm x 536mm
Weight when empty 49kg
Hydraulic connection 1’’ 1/2
Back-up Electric heater or Boiler
Electrical back-up output 0 to 6 kW
Maximum hydraulic
pressure
6 bar
This device complies with CEI 60335-1, CEI 60335-2-40 electrical
securities international norms. CE marking on the device attests
its conformity to the following Communal Guidelines, which he
answers to essential requirements :
• Low Voltage guideline (BT) : 2014/35/UE.
• Electromagnetic Compatibility : (EMC) : 2014/30/UE.
• Eco conception guideline applicable to products related to
energy : 2009/125/CE.
• Restriction of Hazardous substances in electrical and
electronic equipment (ROHS) : 2011/65/UE.
