- 6P10 PILOT MANUAL -
7
3.2 - Packaging
Weight
(kg)
Number
of
packages
W
(mm)
H
(mm)
P
(mm)
6P10 67 - 800 686 1600
Each Pilot is delivered with (non-mounted) :
• Exterior sensor
Gives the pilote the outside temperature to
adapt its heating set point
• USB memory stick
Allows downloading of the operating
history
Ensure to keep the original delivered USB  ash drive.
It will facilitate your exchanges with your technical contacts.
3.3 - Accessories (included)

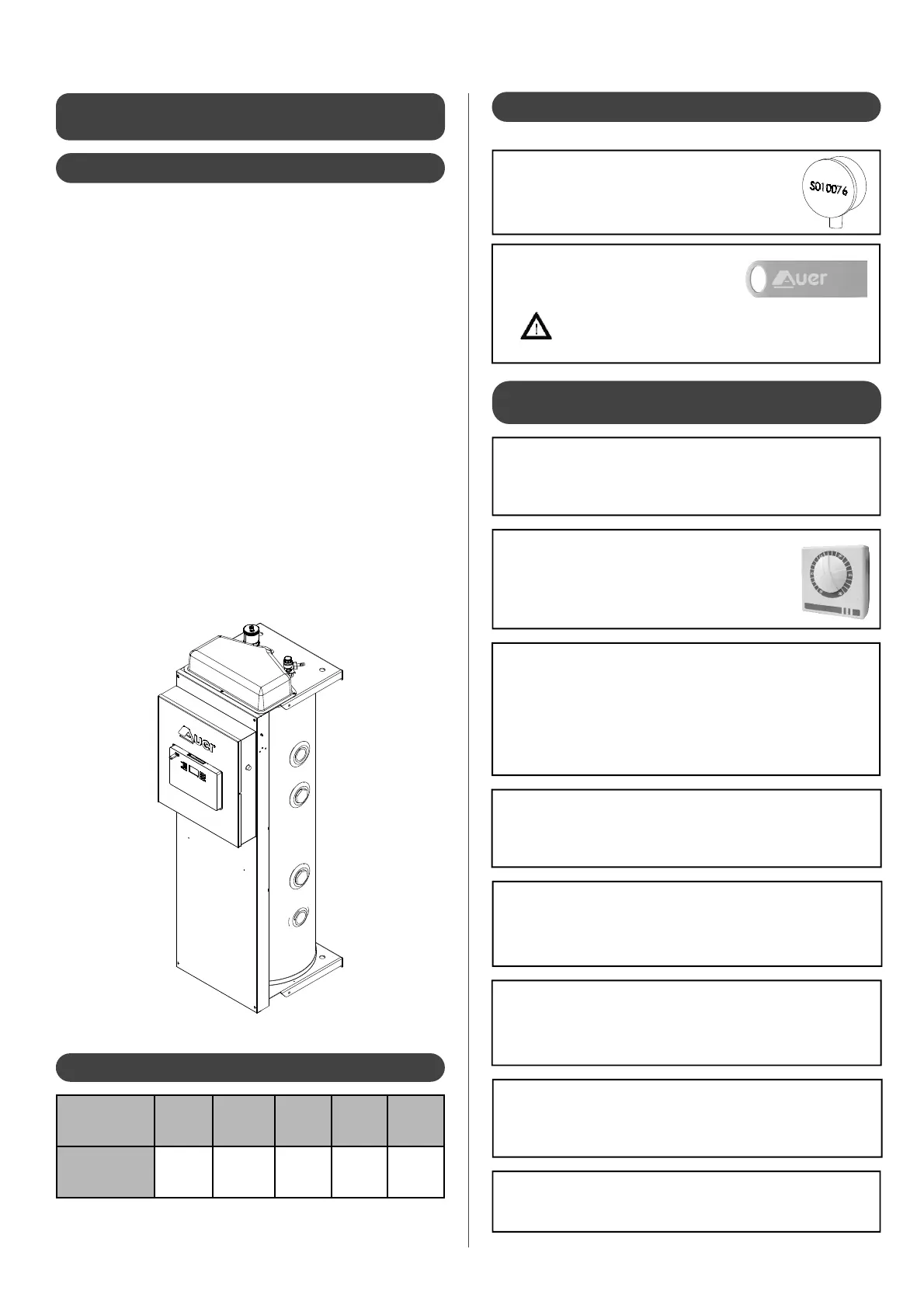

3 - INTRODUCTION
6P10 is a hydraulic pilot which ensures working installations with
high power heat pumps. Its integrated tank ensures the decoupling
of the heat pumps circuits as well as the air bleeding and the
evacuation of the sludges.
If the required installation power is higher than the delivered power
by the heat pump, the 6kW electrical back-up or the boiler back-up
can be started by the pilot.
6P10 pilot is equipped with :
- One 78 liters wall tank with air bleed, pressure sensor, pilot
sensor, 6kW electrical back-up, 6bars pressure relief valve and
settling valve.
- One electronic control ensuring the working of the installation.
Optional distribution branches can be added (up to 2 branches) for
installation including several circuits or heat pumps :
- up to 3 heat pumps and 1 distribution circuit
- up to 3 sanitary circuits and 1 heat pump
- 1 heating circuit
The distribution branches dedicated to heat pumps ensure the
circulation in HRC
70
25kW, HRC
70
32kW or less power heat pumps.
They must not be connected in the case of heat pumps which have
their own circulator (HRC
70
40kW or higher power).
3.1 - General information
• DHW sensor (for water tanks connected as circuits
1 et 2)
For the production of domestic hot water
(
Réf. 710029)
• DHW aquastat (for water tank connected as circuit
3)
For the production of domestic hot water
(
Réf. 752202)
3.4 - Accessories available as optional
extras
• Ambient temperature thermostat radio non-
chronoproportional -(TH
Rnc
)-
(on/o type). Wireless, programmable thermostat,
transmitting through radio-frequency. Necessary when a wired
connection between the Pilot and the ambient temperature
thermostat is not possible
(
Ref.770001)
• Hydraulic distribution branch
(Ref. 755823)
• Shielded bus wire - 20 m long
(
Réf. 753102)
• Shielded bus wire - 50 m long
(
Réf. 754103)
• Additional multi-circuit box
For adding circuits of the same type
(
Réf. 754104)
• Ambient temperature thermostat (TA)
2 wires - allows to control the temperature in
the heating zone
(
Ref. 710043)
