auer 6P10 PILOT - A2.18 - CASE N°18 - 2 HRC70 Heat Pumps + 1 DHW Tank

- 6P10 PILOT MANUAL -
48
Aqs : Aquastat DHW tank
C1 : Circuit 1 - DHW primary circulating pump
CAR : Check valve
CH : Back-up boiler (optional)
*Cpac1 : Heat pump 1 circulating pump (PWM signal)
*Cpac2 : Heat pump 2 circulating pump
Ext : External sensor
F : Filter
P : Air bleed
Sch : Boiler pressure relief valve
Spil : Pilot pressure relief valve
Tpil : Pilot temperature sensor
VA : Stop valve
VCB : Desludging valve
VE : Expansion vessel
VT : Thermostatic valve

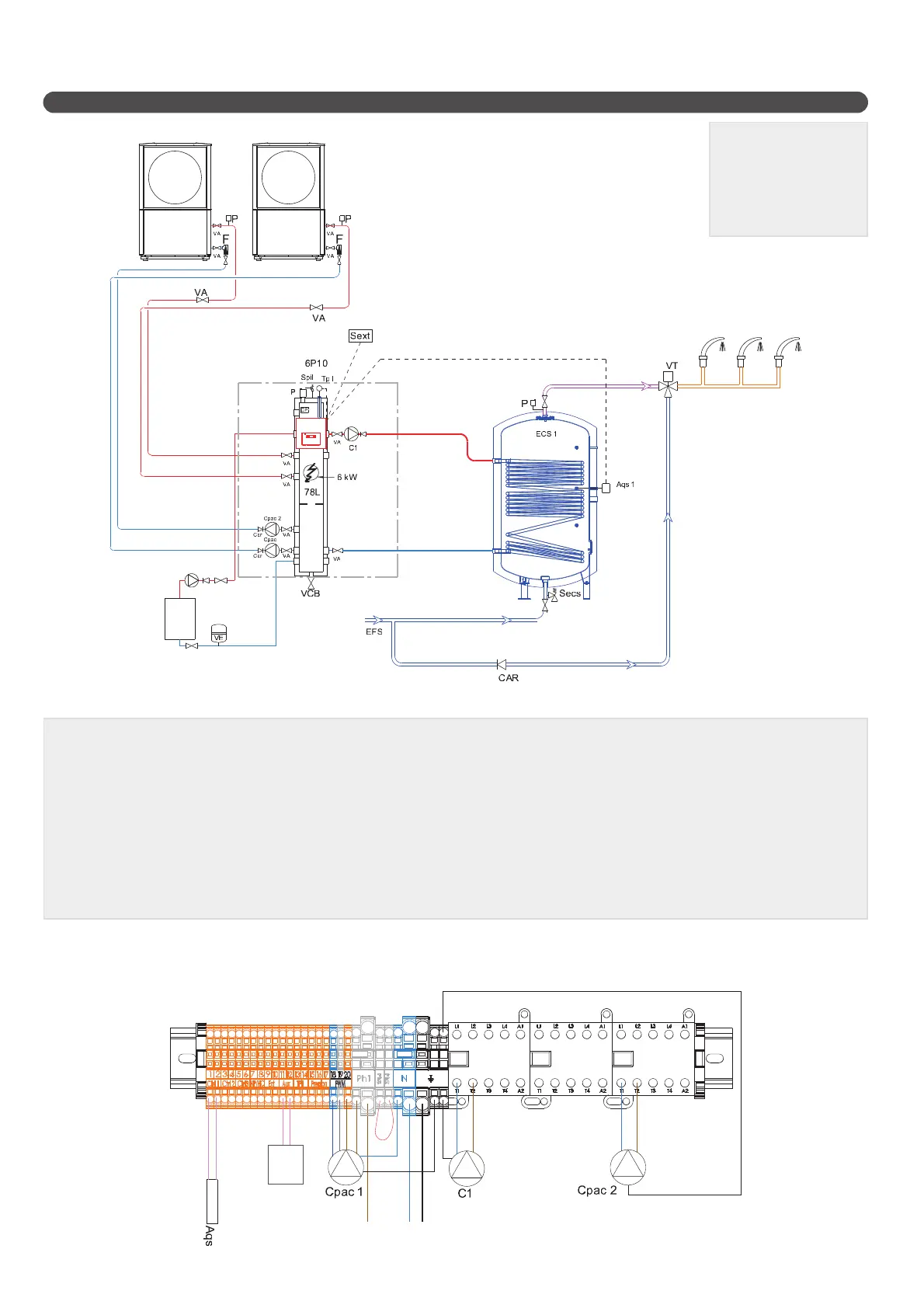

A2.18 -CASE n°18 - 2 HRC70 heat pumps + 1 DHW tank
CONFIGURATION:
C-1 TANK
A-1 aquastat
C-2 INACTIV
C-3 INACTIV
Dry
contact to
back-up
boiler
CH
