auer 6P10 PILOT - A2.2 - CASE N°2 - 1 HRC; Heat Pumps + 2 Heating Circuits

- 6P10 PILOT MANUAL -
37

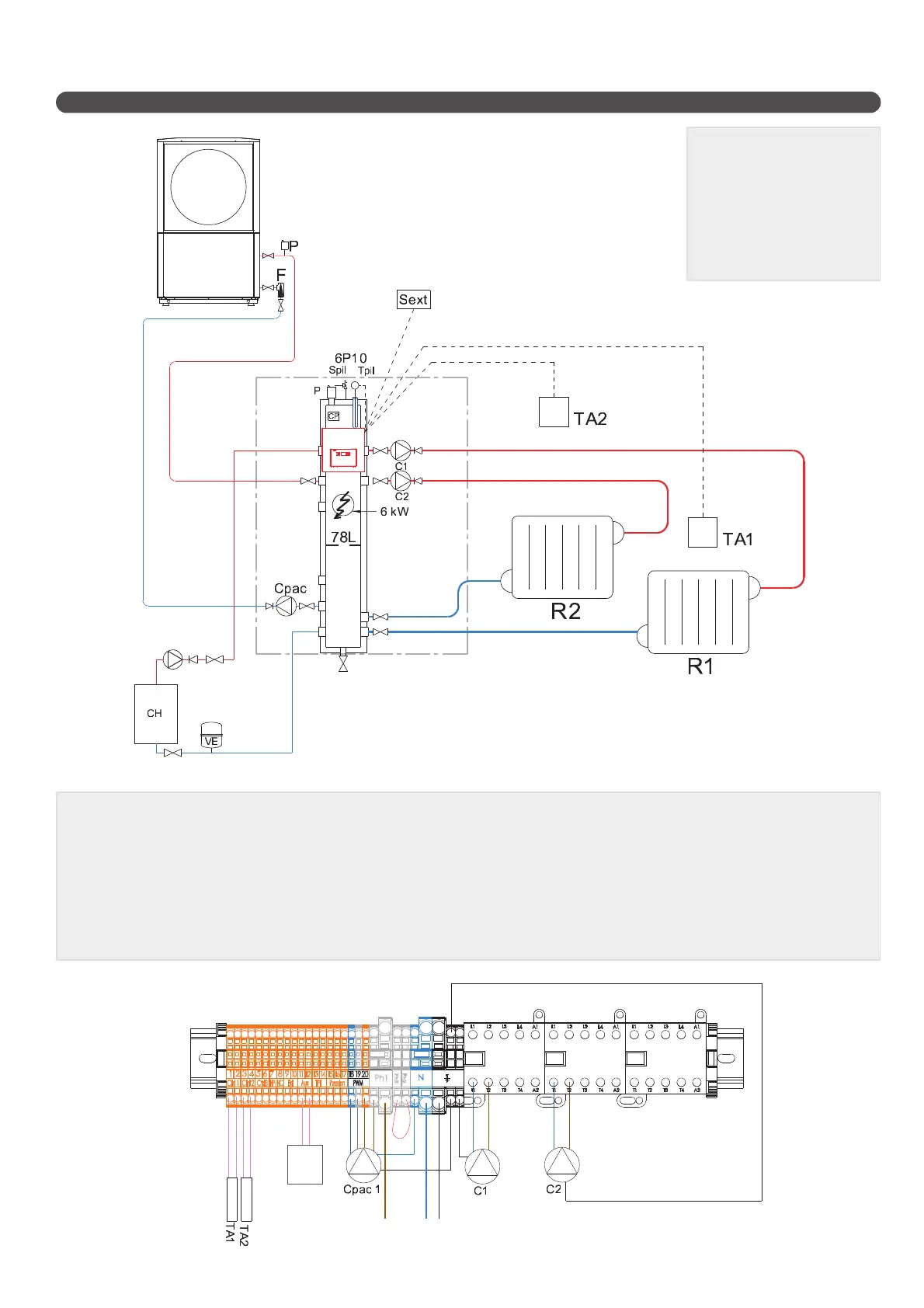

A2.2 - CASE n°2 - 1 HRC
70
heat pumps + 2 heating circuits
C1 : Heating circuit circulating pump n°1
C2 : Heating circuit circulating pump n°2
CH : Back-up boiler (optional)
*Cpac : Heat pump 2 circulating pump
Ext : External sensor
F : Filter
P : Air bleed
R1 : Heating circuit n°1 (radiators)
R2 : Heating circuit n°2 (radiators)
Spil : Pilot pressure relief valve
TA1 : Room thermostat heating circuit n°1
TA2 : Room thermostat heating circuit n°2
Tpil : Pilot temperature sensor
VE : Expansion vessel
CONFIGURATION:
C-1 Radiator
A-1 thermostat
C-2 Radiator
A-2 thermostat
C-3 INACTIV
Dry
contact to
back-up
boiler
