auer 6P10 PILOT - A3 - Wiring Diagram

60 pages

Save Page as PDF

To Next Page

To Previous Page

- 6P10 PILOT MANUAL

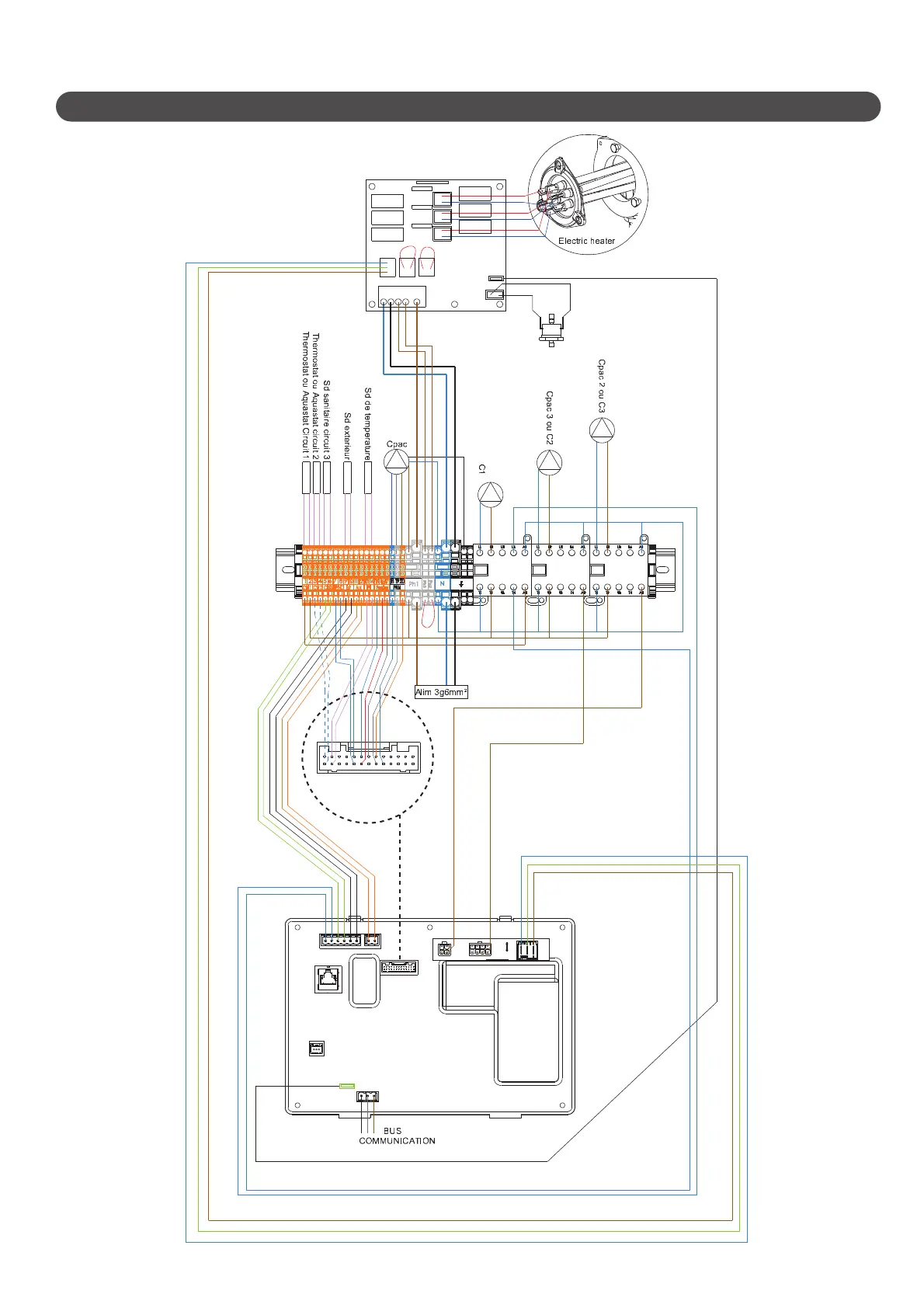

A3 - Wiring diagram

*Cpac must not be connected in

the case of the HRC

40kW heat

pump (circulator integrated into

the heat pump)
