auer 6P10 PILOT - A2.27 - CASE N°27 - 3 HRC70 Heat Pumps + 3 DHW Tanks

- 6P10 PILOT MANUAL -
56

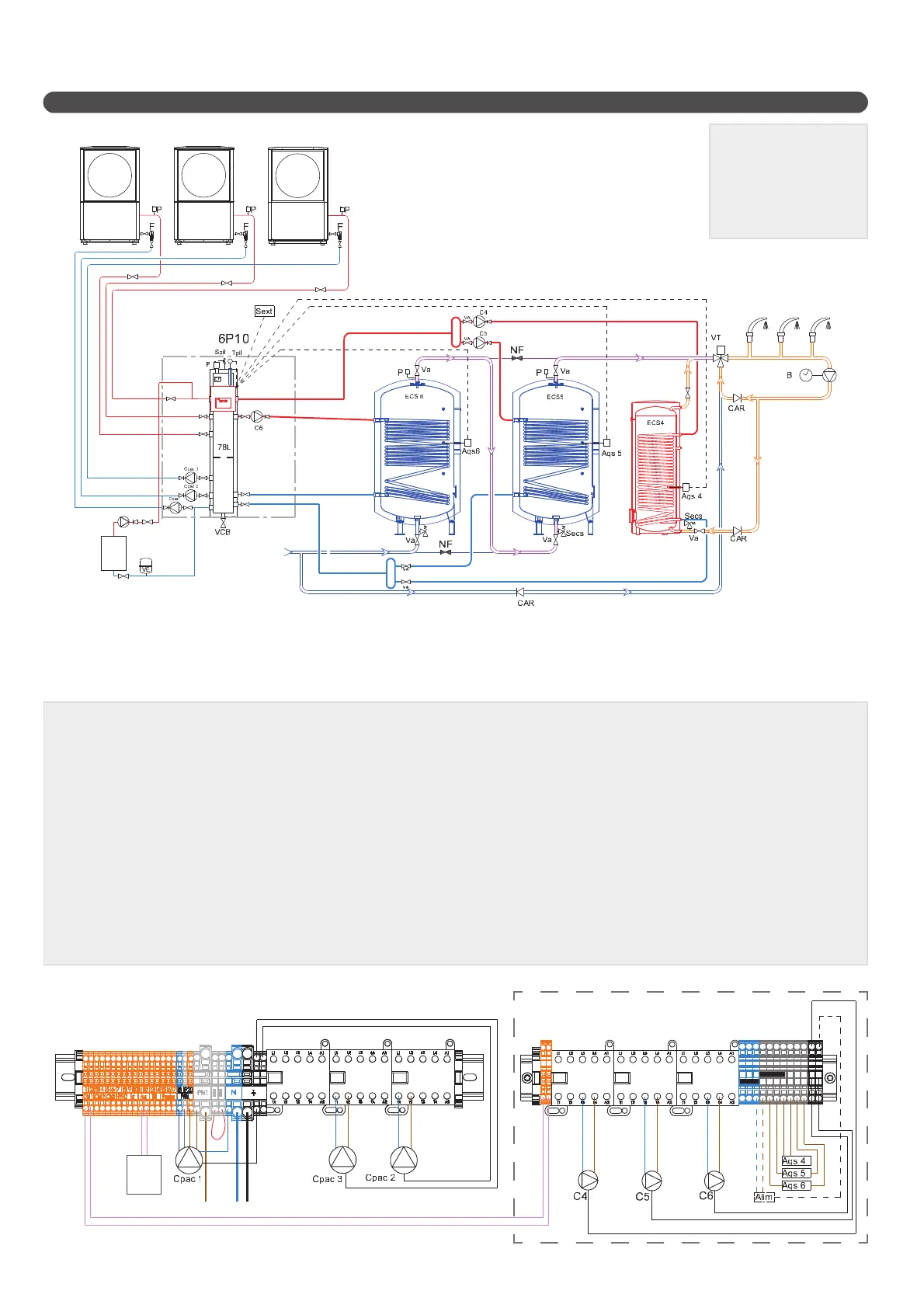

A2.27 -CASE n°27 - 3 HRC70 heat pumps + 3 DHW tanks
Aqs4 : Circuit 4 - DHW tank controlled by aquastat
Aqs5 : Circuit 5 - DHW tank controlled by aquastat
Aqs6 : Circuit 6 - DHW tank controlled by aquastat
C4 : Circuit 4 - DHW primary circulating pump
C5 : Circuit 5 - DHW primary circulating pump
C6 : Circuit 6 - DHW primary circulating pump
CAR : Check valve
CH : Back-up boiler (optional)
Cpac1 : Heat pump 1 circulating pump (PWM signal)
Cpac2 : Heat pump 2 circulating pump
Cpac3 : Heat pump 3 circulating pump
EFS : Domestic Cold Water
F : Filter
P : Air bleed
Spil : Pilot pressure relief valve
Tpil : Pilot temperature sensor
VA : Stop valve
VCB : Desludging valve
VE : Expansion vessel
VT : Thermostatic valve
CONFIGURATION:
C-1 TANK
A-1 aquastat
C-2 INACTIV
C-3 INACTIV
Dry
contact to
back-up
boiler
754104* : 6P10 additional box
* Only the terminal block and circulator power cables are provided in the part number.
CH
