auer 6P10 PILOT - A2.10 - CASE N°10 - 2 HRC70 Heat Pumps + 2 Heating Circuits

- 6P10 PILOT MANUAL -
44

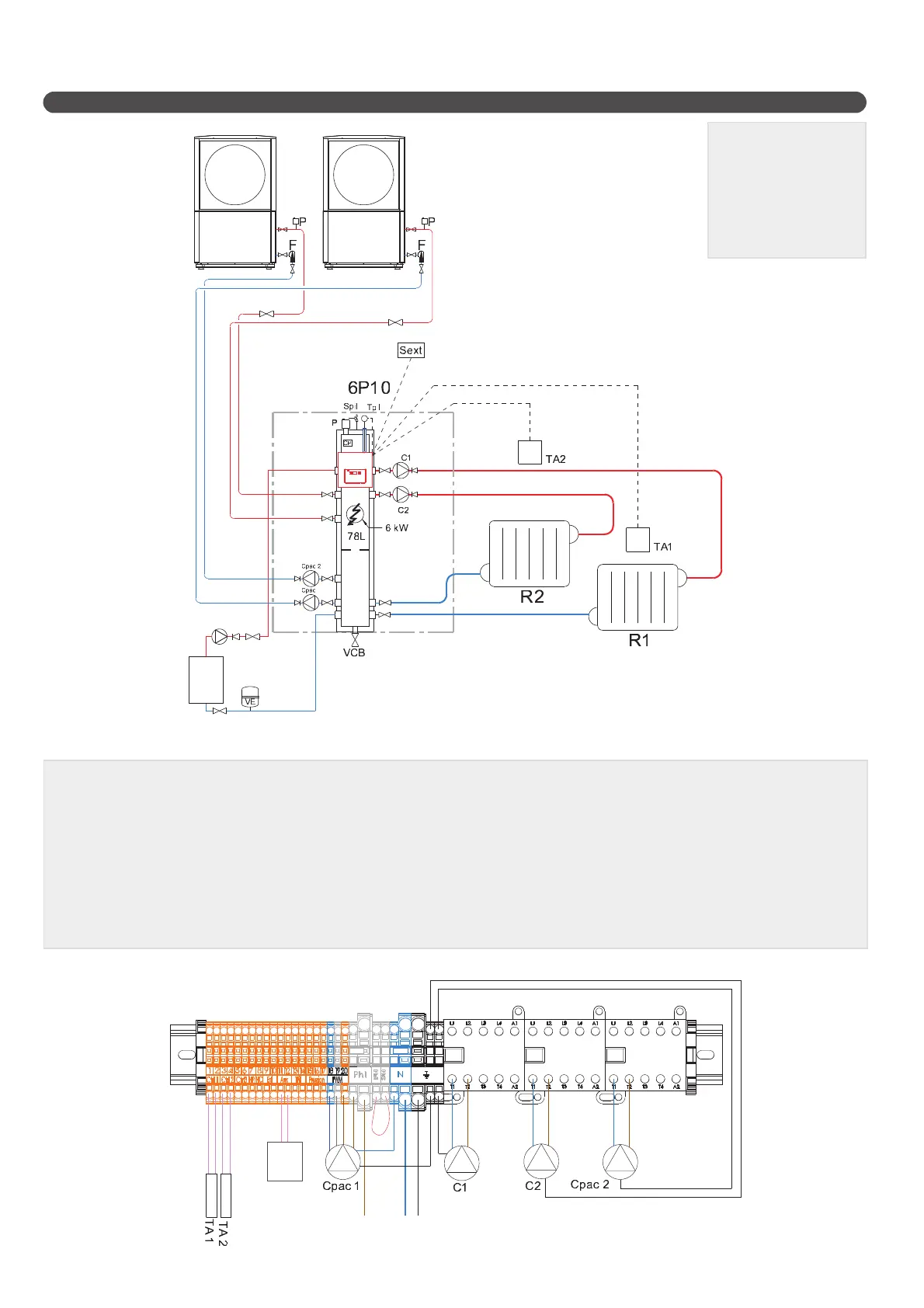

A2.10 -CASE n°10 - 2 HRC70 heat pumps + 2 heating circuits
C1 : Circuit 1 - heating circuit circulating pump
C2 : Circuit 2 - heating circuit circulating pump
CH : Back-up boiler (optional)
*Cpac : Heat pump 1 circulating pump (PWM signal)
*Cpac2 : Heat pump 2 circulating pump
Ext : External sensor
F : Filter
P : Air bleed
R1 : Circuit 1 - radiators heating circuit
R2 : Circuit 2 - radiators heating circuit
Spil : Pilot pressure relief valve
TA1 : Circuit 1 - room thermostat
TA2 : Circuit 2 - room thermostat
Tpil : Pilot temperature sensor
VE : Expansion vessel
CONFIGURATION:
C-1 radiator
A-1 thermostat
C-2 Radiator
A-2 thermostat
C-3 INACTIV
CH
Dry
contact to
back-up
boiler
