auer 6P10 PILOT - A2.25 - CASE N°25 - 3 HRC70 Heat Pumps + 1 DHW Tank

- 6P10 PILOT MANUAL -
54

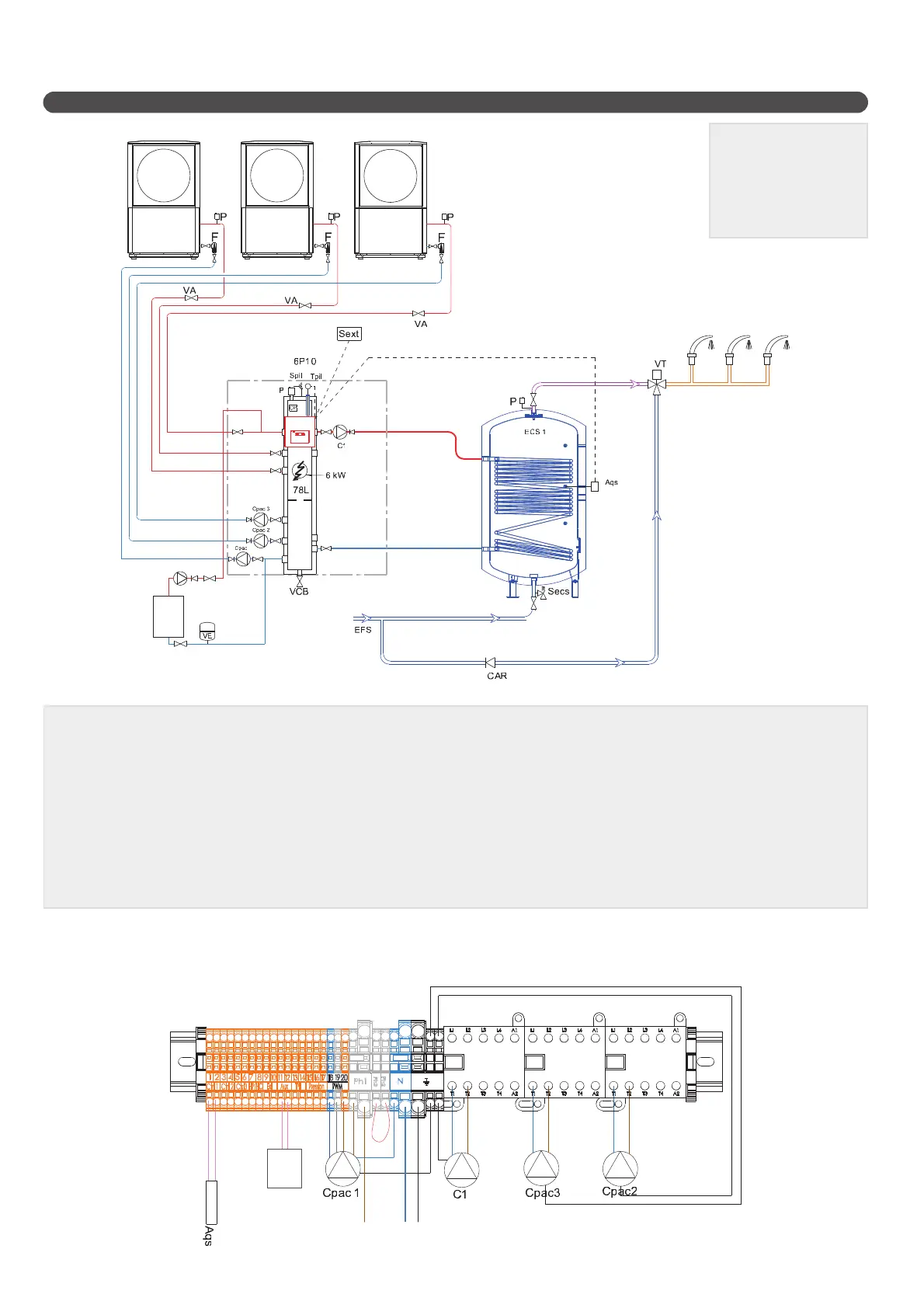

A2.25 -CASE n°25 - 3 HRC70 heat pumps + 1 DHW tank
Aqs : Aquastat DHW tank
C1 : Circuit 1 - DHW primary circulating pump
CAR : Check valve
CH : Back-up boiler (optional)
Cpac1 : Heat pump 1 circulating pump (PWM signal)
Cpac2 : Heat pump 2 circulating pump
Cpac3 : Heat pump 3 circulating pump
EFS : Domestic Cold Water
F : Filter
P : Air bleed
Spil : Pilot pressure relief valve
Tpil : Pilot temperature sensor
VA : Stop valve
VCB : Desludging valve
VE : Expansion vessel
VT : Thermostatic valve
CONFIGURATION:
C-1 TANK
A-1 aquastat
C-2 INACTIV
C-3 INACTIV
Dry
contact to
back-up
boiler
CH
