auer 6P10 PILOT - A2.6 - CASE N°6 - 1 HRC70 Heat Pumps + 1 DHW Tank

- 6P10 PILOT MANUAL -
40
Aqs1 : Aquastat du DHW tank
C1 : Circulateur primaire du DHW tank
CAR : Check valve
Cch : Circulateur Back-up boiler (piloté par la Back-up boiler)
CH : Back-up boiler (optional)
*Cpac : Heat pump 2 circulating pump
EFS : Domestic Cold Water
F : Filter
P : Air bleed
Sch : Boiler pressure relief valve
Secs : Domestic water pressure relief valve
Spil : Pilot pressure relief valve
Tpil : Pilot temperature sensor
VA : Stop valve
VCB : Desludging valve
VE : Expansion vessel
VT : Thermostatic valve / Thermostatic valve

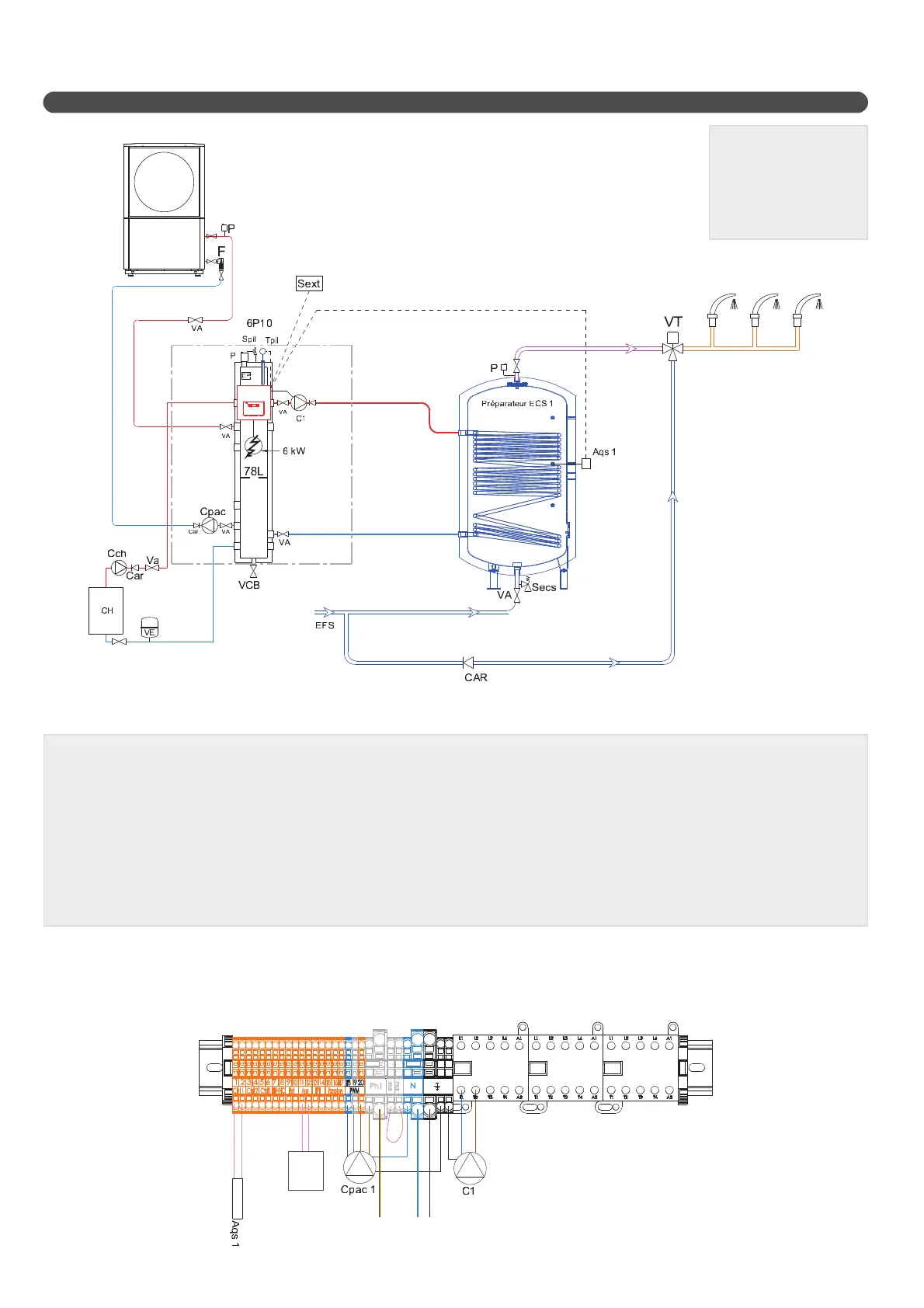

A2.6 - CASE n°6 - 1 HRC70 heat pumps + 1 DHW tank
CONFIGURATION:
C-1 TANK
A-1 aquastat
C-2 INACTIV
C-3 INACTIV
Dry
contact to
back-up
boiler
