auer 6P10 PILOT - A2.11 - CASE N°11 - 2 HRC70 Heat Pumps + 3 Heating Circuits

- 6P10 PILOT MANUAL -
45

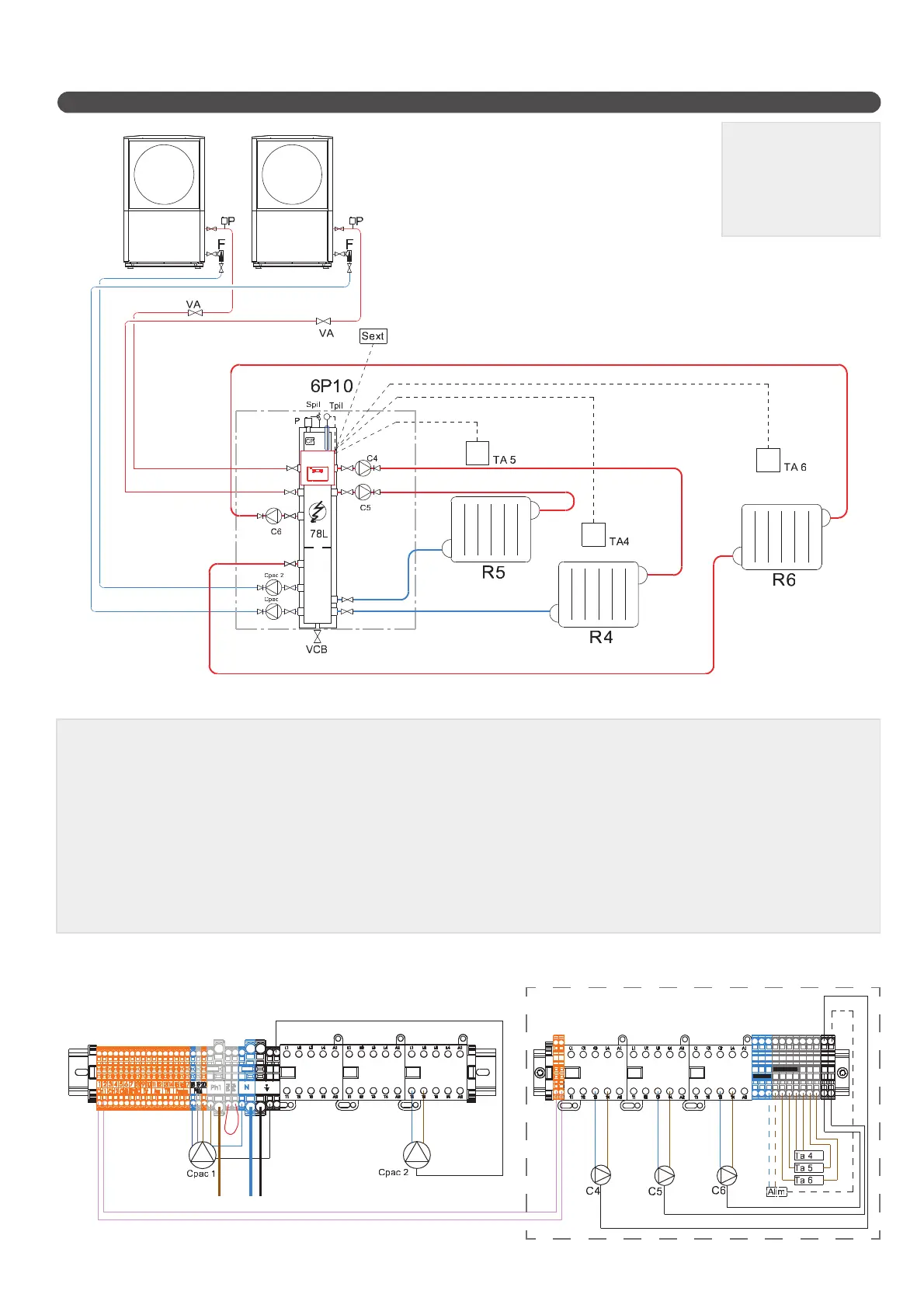

A2.11 -CASE n°11 - 2 HRC70 heat pumps + 3 heating circuits
C4 : Circuit 4 - heating circuit circulating pump
C5 : Circuit 5 - heating circuit circulating pump
C6 : Circuit 6 - heating circuit circulating pump
*Cpac : Heat pump 1 circulating pump (PWM signal)
*Cpac2 : Heat pump 2 circulating pump
Ext : External sensor
F : Filter
P : Air bleed
R4 : 1er heating circuit (radiators)
R5 : 2ème heating circuit (radiators)
R6 : 3ème heating circuit (radiators)
Spil : Pilot pressure relief valve
TA4 : Circuit 4 - room thermostat
TA5 : Circuit 5 - room thermostat
TA6 : Contrôle circuit 6 - Room thermostat
Tpil : Pilot temperature sensor
VA : Stop valve
VCB : Desludging valve
CONFIGURATION:
C-1 radiator
A-1 thermostat
C-2 INACTIV
C-3 INACTIV
754104* : 6P10 additional box
* Only the terminal block and circulator power cables are provided in the part number.
