auer 6P10 PILOT - A2.23 - CASE N°23 - 3 HRC70 Heat Pumps + 2 Heating Circuits

- 6P10 PILOT MANUAL -
52

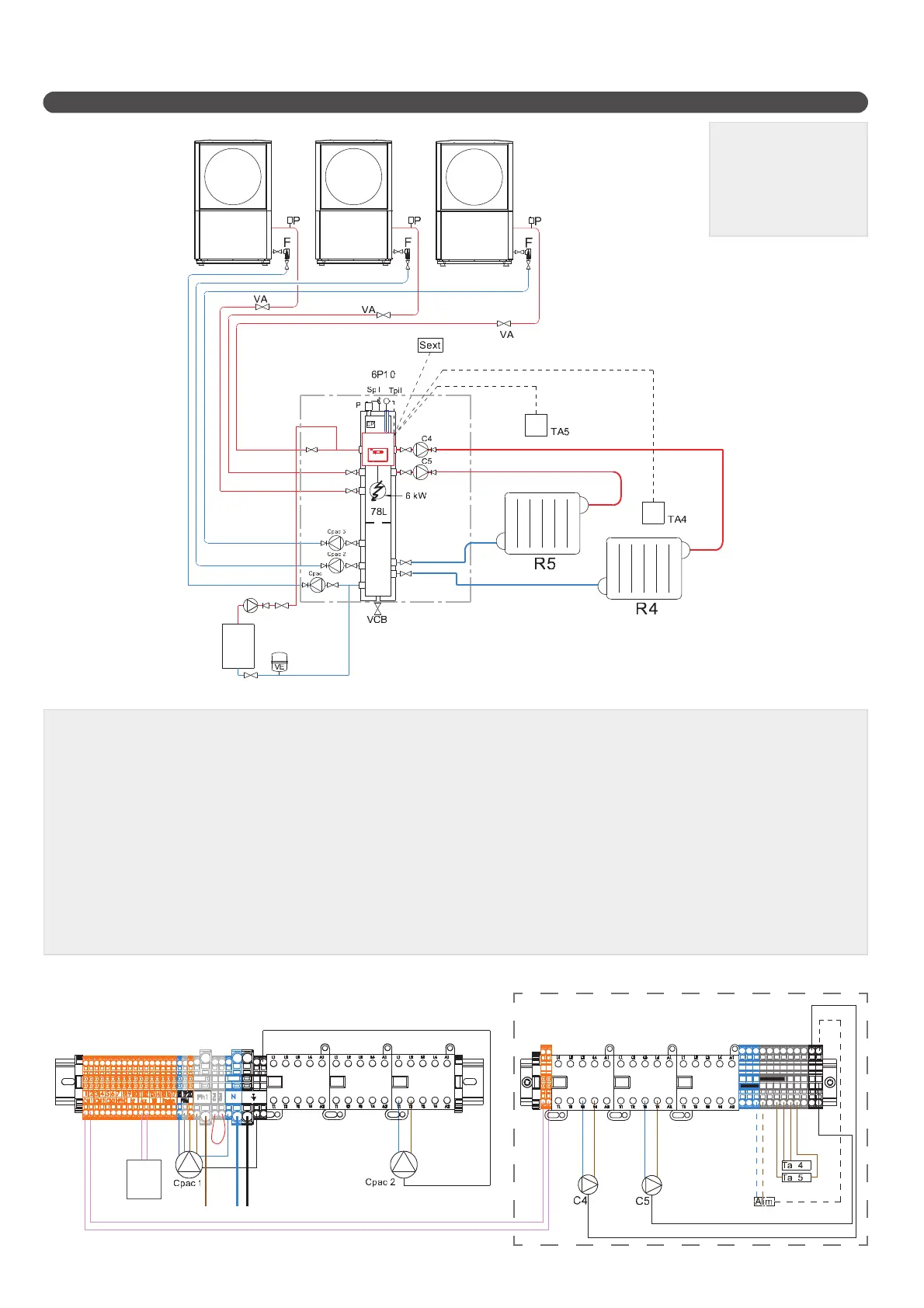

A2.23 -CASE n°23 - 3 HRC70 heat pumps + 2 heating circuits
C4 : Circuit 4 - heating circuit circulating pump
C5 : Circuit 5 - heating circuit circulating pump
CAR : Check valve
CH : Back-up boiler (optional)
Cpac1 : Heat pump 1 circulating pump (PWM signal)
Cpac2 : Heat pump 2 circulating pump
Cpac3 : Heat pump 3 circulating pump
EFS : Domestic Cold Water
F : Filter
P : Air bleed
R4 : Circuit 4 - heating circuit (radiators)
R5 : Circuit 5 - heating circuit (radiators)
Spil : Pilot pressure relief valve
TA4 : Circuit 4 - room thermostat
TA5 : Circuit 5 - room thermostat
Tpil : Pilot temperature sensor
VA : Stop valve
VCB : Desludging valve
VE : Expansion vessel
CONFIGURATION:
C-1 radiator
A-1 thermostat
C-2 INACTIV
C-3 INACTIV
Dry
contact to
back-up
boiler
754104* : 6P10 additional box
* Only the terminal block and circulator power cables are provided in the part number.
CH
