- INSTALLER HIGHTEMPERATURE ENERGY EFFICIENT HEAT PUMP MANUAL-
25

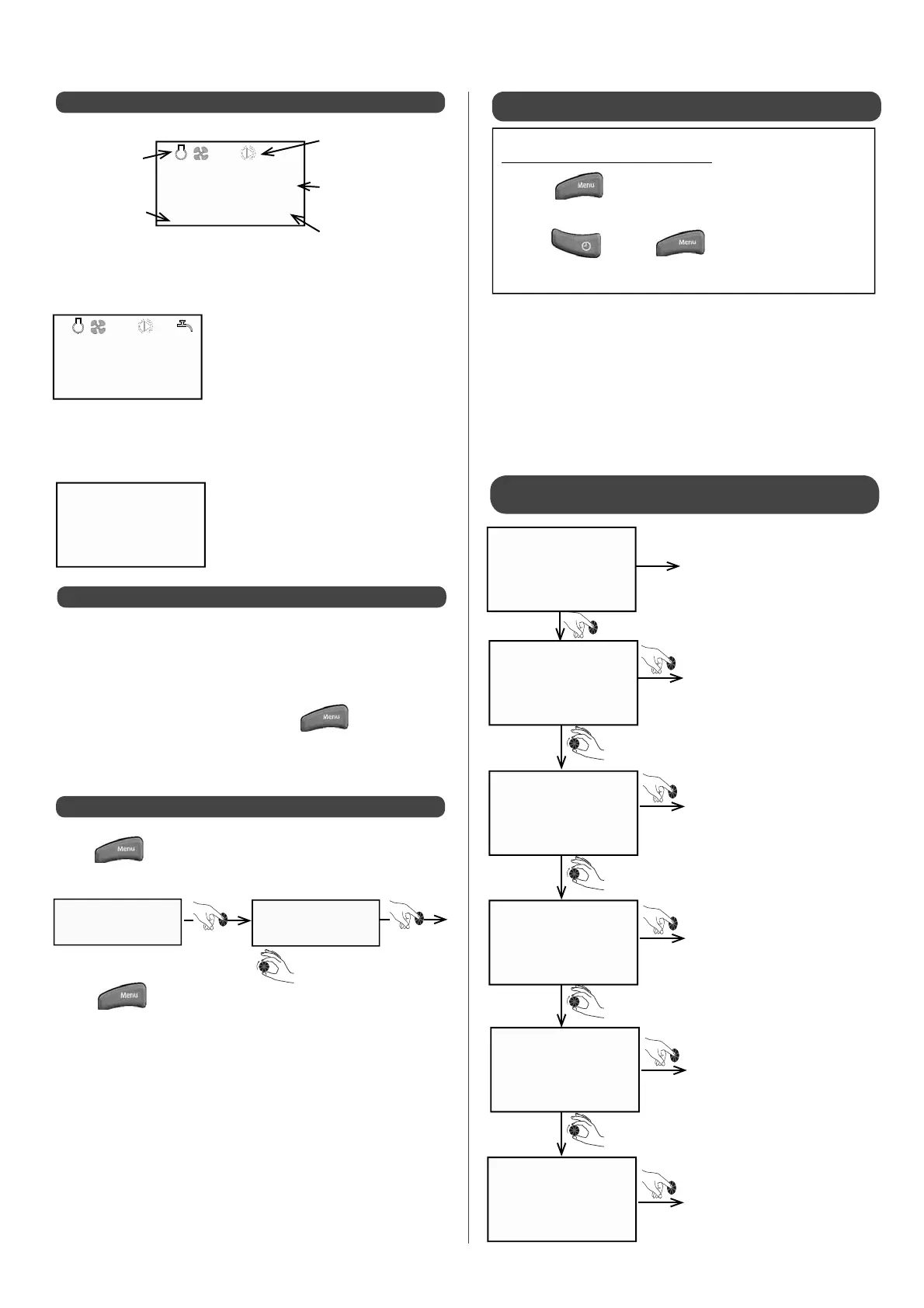

4.2 - Installer Menu
4.1.2 - Commonly displayed symbols
4.1.3 - Unlocking
4.1.4 - Language
Heat Pump running
(at 2nd power level)
Circulator pumps running
(circuit 1 circulator pump)
Pressure in heating
installation
Water temperature in
Pilot, as it leaves to the
heating circuit
Day
(Monday=1 ; Tuesday=2....)
1.2 bar
45
°C
2 2
1
2
• Tuesday
• Circuit 2 in use for domestic hot water
• Heat Pump running at third power
level
• Water temperature at leaving point
(of primary domestic water circuit):
62°C
• Pressure: 1.3 bars
Example 1
1.3 bar
62
°C
2 2
2
2
11
• Thursday
• Holiday mode in progress
• Holiday mode set to end in 14 days
Example 2
holi. retur
14 d
4
• Once the appliance has been switched on, or if the control box
hasn’t been used for more than 30 minutes, the control box will
automatically lock. When in locked mode, the buttons become
inactive.
•
To unlock the control box, press and hold
down for 4 seconds.
Select language
Enter
LANGUAGE
LANGUAGE
ENG
• Press .
• Turn dial to scroll through menu choices:
• Press
to return to main screen.
Accessing the installer menu:
• Press
• Turn dial until "INST. MEnu"appears on screen
• Press
and
• Hold them down simultaneously for 3 sec.
- back up - data calculations
- configuration
- counters
- Settings - manual
- display - reset paramEtres
Access:
- values measured
- temperatures calculated
- programmed time periods
- counters / meters
4.2.1 - Selecting the right back-up for the
installation
back up
Hp only
HP + boiler
Hp + elect
boiler
electric
Enter
Enter
Enter
Enter
Enter
Access choice of appliances
authorised to run
Heat Pump only running, no
back-up (default setting)
Heat Pump running with back-
up from existing boiler
Heat Pump running with
integrated 6kW electrical
back-up
Back-up operation mode
using only existing boiler (for
temporary forced command)
Back-up operation mode
using only 6kW electrical
back-up (for temporary forced
command)
