auer HRC70 17 - HRC Pilot

- INSTALLER HIGHTEMPERATURE ENERGY EFFICIENT HEAT PUMP MANUAL-
49
7.3 - HRC
70
Pilot
6

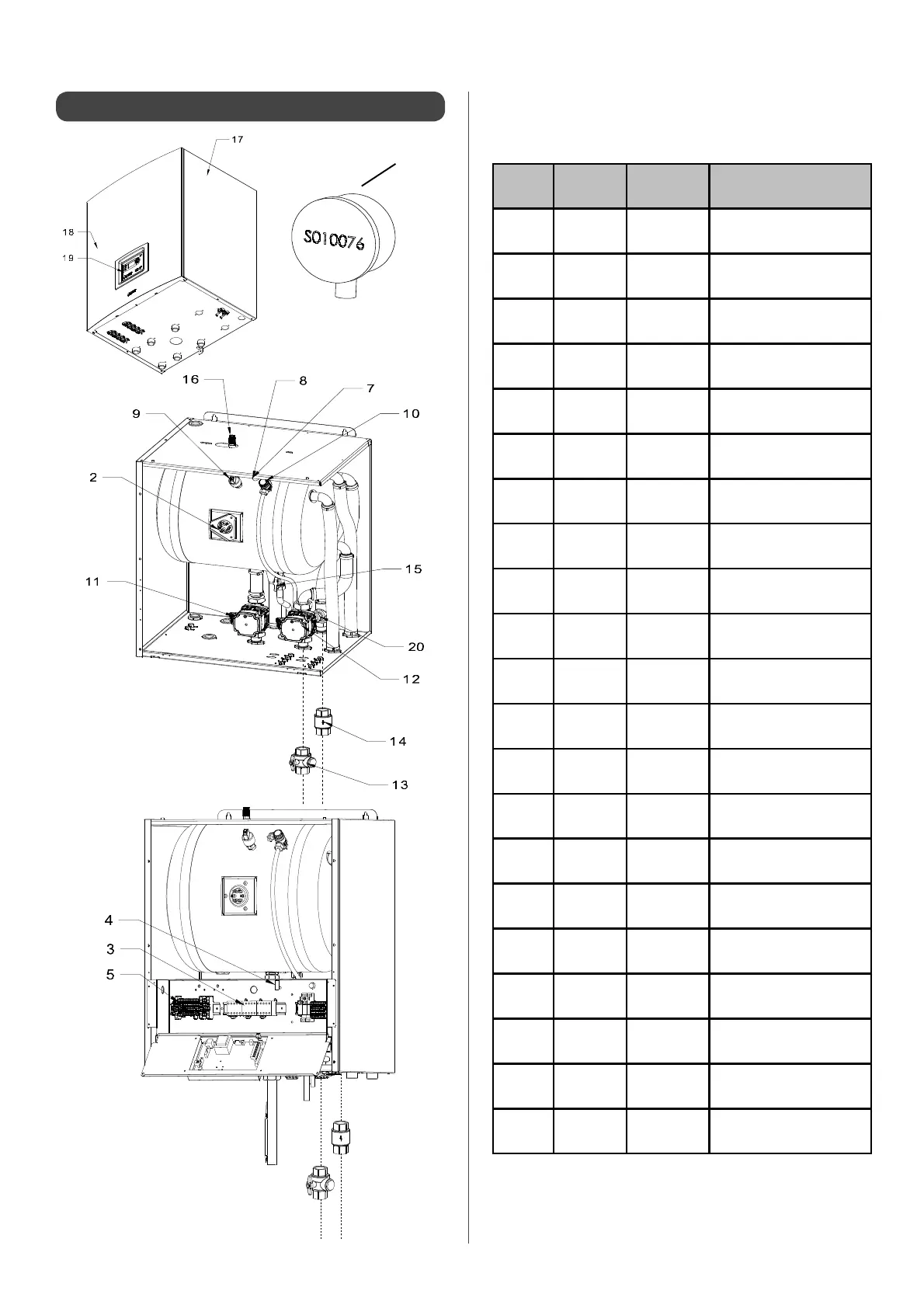

No. Symbol Reference Product
2 1243947
Electrical immersion
heater
3 1243561 Contactor
4 F 4990743 Fuse holder
5 1244050 Terminal
1244049
Single phase
wiring
1244048
Three phase
wiring
6 OS 1243586 Outdoor sensor
7 1243693
HRC
70
Pilot
temperature sensor
8 SAQ 1238802 Safety aquastat
9 WP 1243661 Water pressure sensor
10 HPSV 1239094 3 bar safety valve
11 CPH 1243056
Grundfos 20-60.130
circulator pump
12 HPCP 1243662
Grundfos 20-70.130
circulator pump
13 FV 1239114 1" FF filter valve
14 C 1238970 FF 1" check valve
15 SV 1239111
3/4" valve with
swivel nut
16 AP 1239089
3/8" air purge valve
with rotatable nozzle
17 4484803 Side panel
18 4484990 Front panel
19 4991546 Control box
20 1239171 Flow rate monitor
