auer HRC70 17 - Electrical Boxes

- INSTALLER HIGHTEMPERATURE ENERGY EFFICIENT HEAT PUMP MANUAL -
48

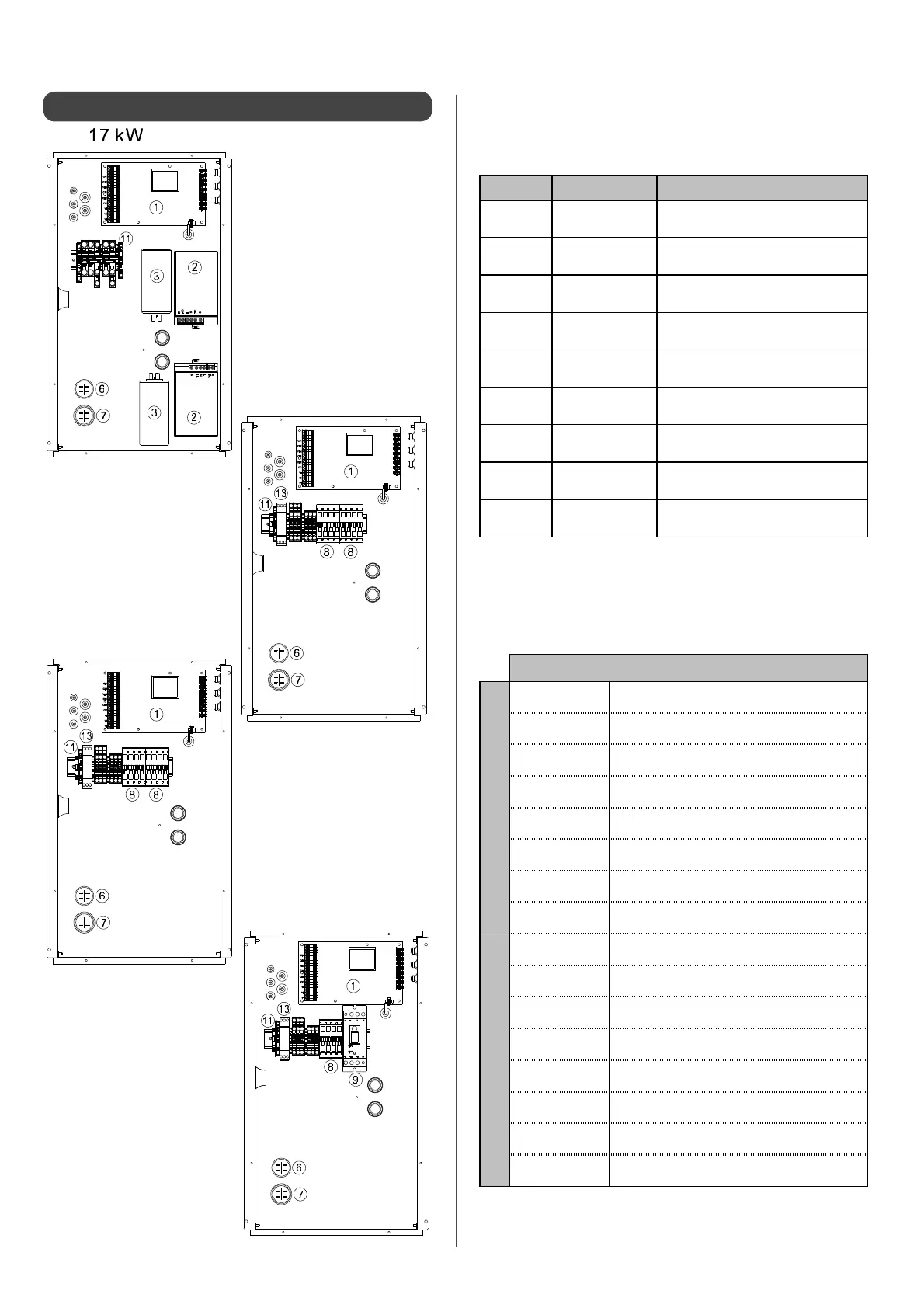

7.2 - Electrical boxes
Reference points on schematic cabling diagram
Electrical connections to screw in
DC1 Compressor 1 starter
DC2 Compressor 2 starter
RCP Phase monitor relay
KMC1 Contactor compressor 1
KMC2 Contactor compressor 2
DP Compressor 2 progressive starter
K1 à K3 Electrical stage contactor
BUS 2-core sheathed communication cable
Electrical connections with Faston terminals
C1 45ȝF compressor 1 capacitor
C2 45ȝF compressor 1 capacitor
CV1 12ȝF capacitor fan speed 1
CV2 18ȝF capacitor fan speed 2
K1 compressor 1
K2 compressor 2
AQS 110°C safety aquastat
T 6 Kw electric immersion heater
Number Reference Product
1 1244040 Heat pump C4 electronics board
2 1244415
Single phase progressive starter
compressor 1 & 2
3 1243959 45F compressor capacitor
6 1244043 12F fan capacitor
7 1244044 18F fan capacitor
8 1248847 30A contactor
9 1244037 Three phase progressive starter
11 1243147 4A fuse
13 1943123 Phase monitor
single phase
20 kW three phase
17 KW three phase
1243847
25 kW three phase
