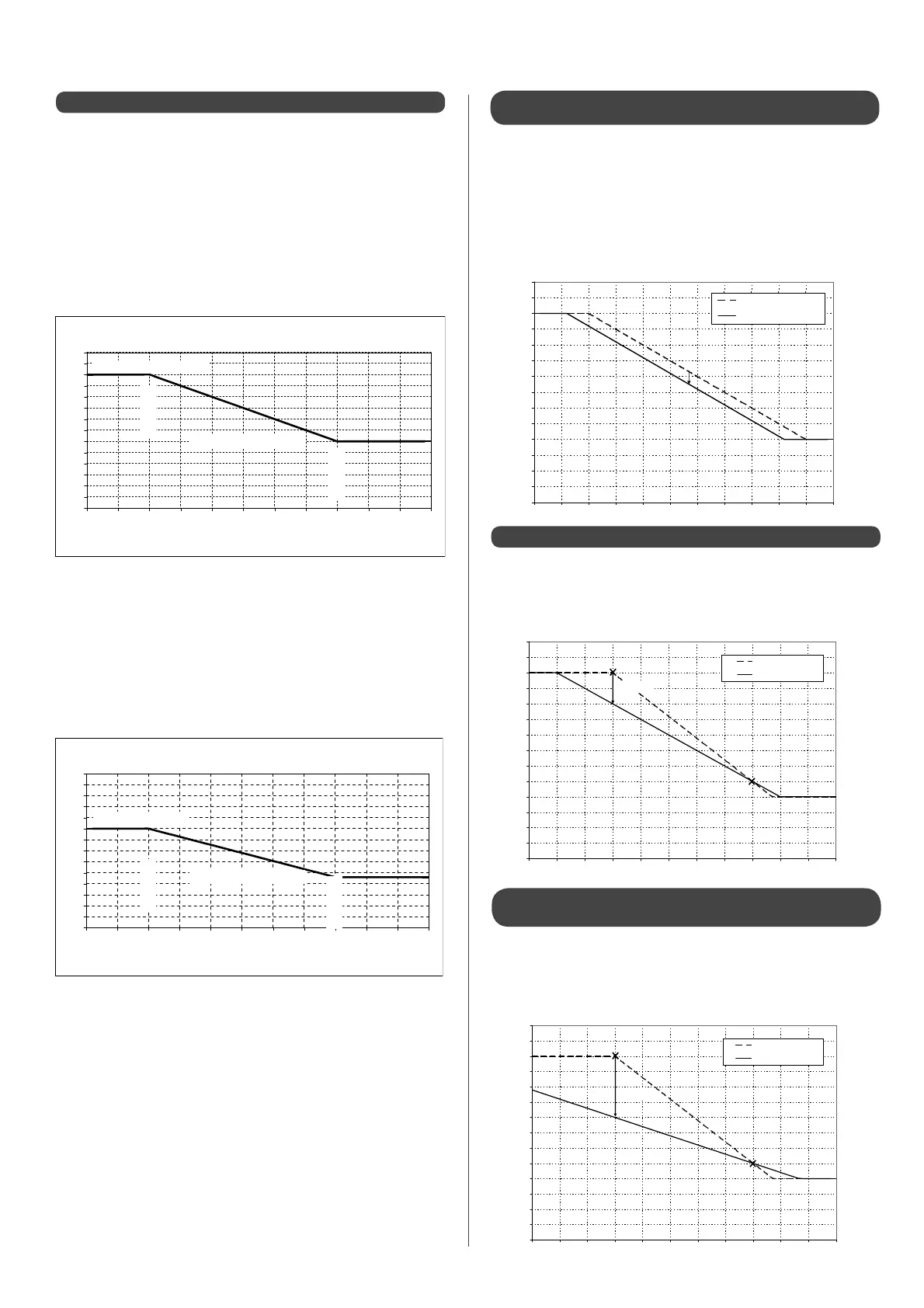

4.2.3.1 - Setting the heating curve
Parametres PAR.207 to PAR.210 enable you to adjust the heating
curve
to the mode and level you require.
• PAR.207 = Max. Heat Pump temperature (°C) to min.
outdoor temperature (PAR.210)
• PAR.208 = Min. Heat Pump temperature (°C) to max.
outdoor temperature (PAR.209)
• PAR.209 = Max. outdoor temperature (°C)
• PAR.210 = Min. outdoor temperature (°C)
Standard radiator settings:
• PAR.207 = 60°C
• PAR.208 = 30°C
• PAR.209 = 20°C
• PAR.210 = -10°C
Standard under oor heating settings:
• PAR.207 = 45°C
• PAR.208 = 20°C
• PAR.209 = 20°C
• PAR.210 = -10°C
Température de consigne (en °C)
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
-20-15-10-5 0 5 101520253035
Température exterieure (en °C)
P207=60°C
P208=30°C
P210 = -10°C
P209 = 20°C
Température de consigne (en °C)
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
-20-15-10-5 0 5 101520253035
Température exterieure (en °C)
P207=45°C
P208=20°C
P210 = -10°C
P209 = 20°C
Target temperature (°C)
Target temperature (°C)
Outdoor temperature (°C)
Outdoor temperature (°C)
When position 2 of PAR.205 is selected (PAR.205 = 2), the
di erence between the target temperature and the lower
temperature at which heating will automatically re-start can be
adjusted using PAR.211. An indoor sensor is required to monitor
the temperature for this setting, which enables you to maintain a
steady temperature in your residence.
4.2.3.2 - Maintaining the target temperature
(Comfort mode)
4.2.3.3 - Target temperature in ‘Eco’ mode
4.2.3.4 - Target temperature in Frost Protection
mode
Parametre PAR.213 is used to adjust the heating curve in Eco
mode so that the temperature is lower than in Comfort mode.
Parametre PAR.214 is used to adjust the heating curve in Frost
Protection (FP) mode so that the temperature is lower than in
Comfort mode.
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
-20-15-10-5 0 5 101520253035
Température
extérieure
(en °C)
Température de consigne
pour le retour d'eau
(en °C)
consigne en demande
consigne en non-demande
P211 = 4°K
Target temperature for
incoming water (in °C)
Target temp.
Heating start-up temp.
Target temp.
Heating start-up temp.
Outdoor
temperature
(in°C)
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
-20-15-10-5 0 5 101520253035
Température
extérieure
(en °C)
Température de consigne
pour le retour d'eau
(en °C)
consigne en confort
consigne en ECO
P214 = 10°K
Target temperature for
incoming water (in °C)
‘Comfort’ temp.
‘Eco’ temp.
Outdoor
temperature
(in°C)
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
-20-15-10-5 0 5 101520253035
Température
extérieure
(en °C)
Température de consigne
pour le retour d'eau
(en °C)
consigne en confort
consigne en Hors-Gel
P214 = 20°K
Target temperature for
incoming water (in °C)
‘Comfort’ temp.
‘FP’ temp.
Outdoor
temperature
(in°C)
