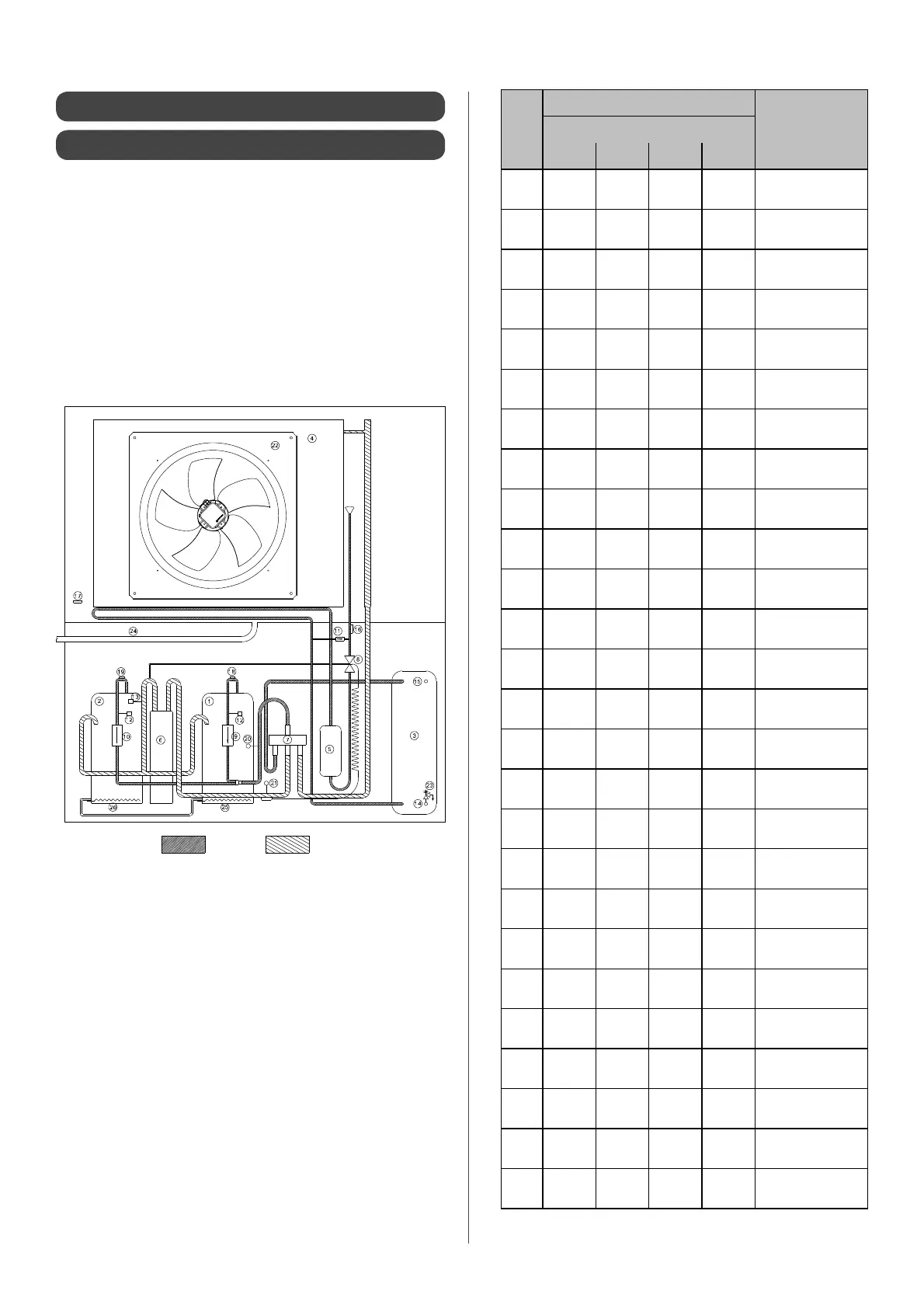

7 - PARTS
7.1 -HRC
70
Heat Pump
Number
References
Product
HRC
70
heat pump model
17 kW
Single phase
17 kW
Three phase
20 kW
Single phase
25 kW
Three phase
1 4992030 4992032 4992034 4992035 Compressor 1
2 4992031 4992033 4992031 4992036 Compressor 2
3 1472698 1472698 1472728 1472728
Plate-type
condenser
4 1472653 1472653 1472653 1472684 Evaporator
5 1472696 1472696 1472696 1472696 Dehydrating filter
6 1472690 1472690 1472702 1472702
Suction accumulator
7 1472692 1472692 1472719 1472719 4-way valve
8 1472693 1472693 1472718 1472718
Thermostatic
expansion valve
9 1472691 1472691 1472691 1472691
Compressor 1
check valve
10 1472691 1472691 1472691 1472700
Compressor 2
check valve
11 1472711 1472711 1472711 1472711
Steam injection
valve
12 1239169 1239169 1239169 1239169 High pressure switch
13 1239170 1239170 1239170 1239170 Low pressure switch
14 1243955 1243955 1243955 1243955
Water inlet temperature
sensor
15 1243955 1243955 1243955 1243955
Water outlet temperature
sensor
16 1243955 1243955 1243955 1243955 De-icing sensor
17 1243955 1243955 1243955 1243955
Outdoor temperature
sensor
18 1243955 1243955 1243955 1243955
Compressor 1 temperature
sensor
19 1243955 1243955 1243955 1243955
Compressor 2 temperature
sensor
20 1472730 1472730 1472730 1472730 HP pressure tap
21 1472730 1472730 1472730 1472730 LP pressure tap
22 1591385 1591385 1591385 1591385 Fan set
23 1239128 1239128 1239128 1239128 2.5 bar safety valve
24 4948083 4948083 4948083 4948083
Condensate
drainage pipe
25 1243963 1243963 1243963 1243963
Compressor 1
heating belt
26 1243963 1243963 1243963 1243964
Compressor 2
heating belt
HP circuit
LP circuit
