Autonics TK Series - Page 48

5 Preparation and Startup
48 © Copyright Reserved Autonics Co., Ltd.

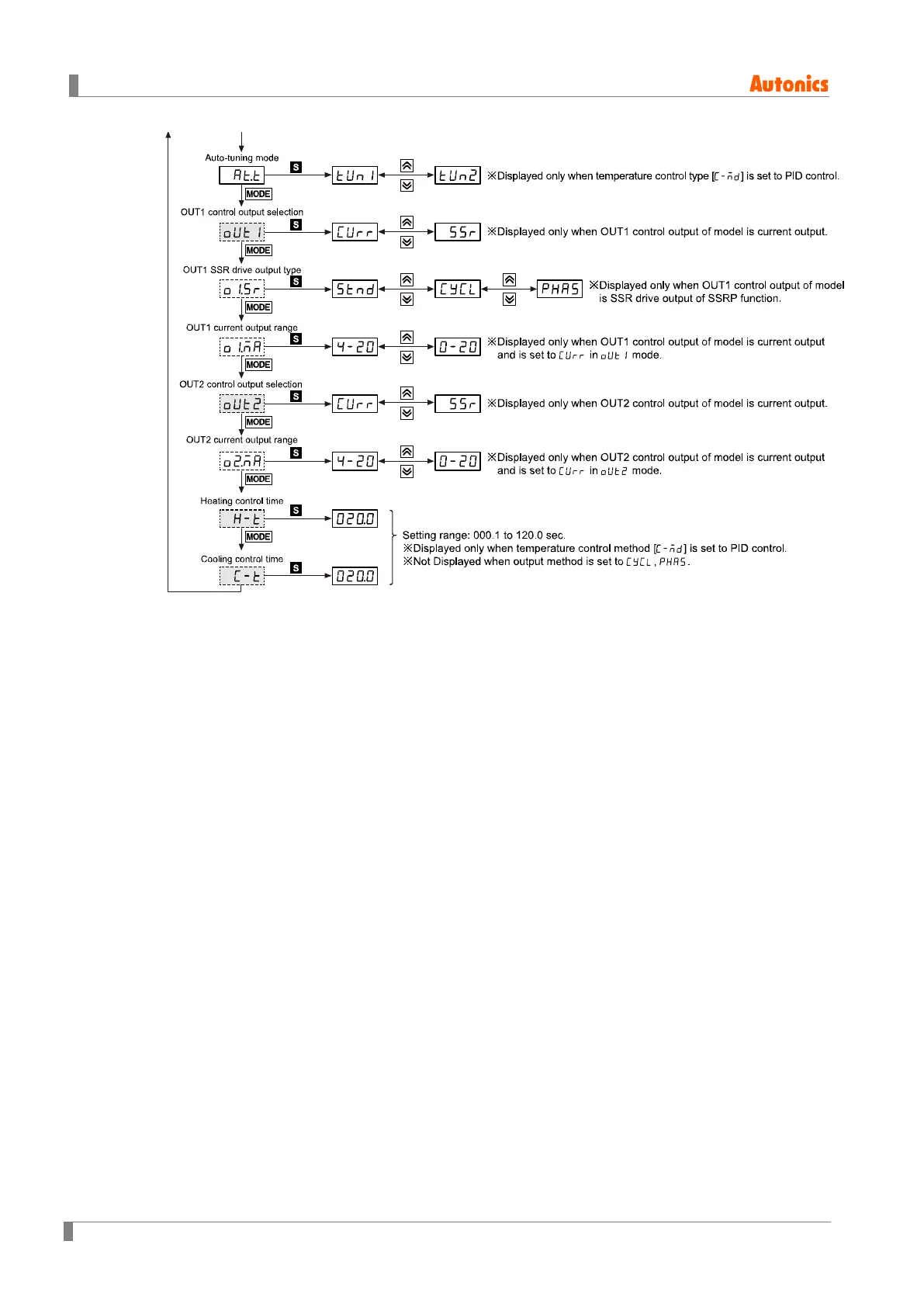

※ OUT1, OUT2 output:
 In case that OUT1, OUT2 output is relay output type
: OUT1
, O!SR, O!MA, OUT2, O@SR, O@MA parameters are not displayed.
 In case that OUT1,OUT2 output is current + SSR drive output type, when OUT1,OUT2
output is set to SSR
: Output method of O!SR
, O@SR is held in STND and parameter is not displayed.
 In case that OUT1, output is SSR drive output model of SSRP function and OUT2 output is
current + SSR drive output
-
OUT1, O!MA are not displayed.
- O!SR can set to STND
, CYCL, PHAS
-When O@SR is set to SSR it is held in STND and parameter is not displayed.
