Autonics TK Series User Manual

6 Parameter Settings and Functions
72 © Copyright Reserved Autonics Co., Ltd.
6.2.5 Output settings
6.2.5.1 Control output (OUT1/OUT2) selection [PAR3 → OUT1/OUT2]
 In case of selecting the Models with current control output, both current and SSR drive
outputs are available. You can therefore choose the right output type depending on
application environments.
 OUT1: Selects OUT1 control output.
 OUT2: Selects OUT2 control output.
Setting
group
Parameter Setting range
Factory
default
Unit
PAR3
OUT1
SSR / CURR SSR -
OUT2

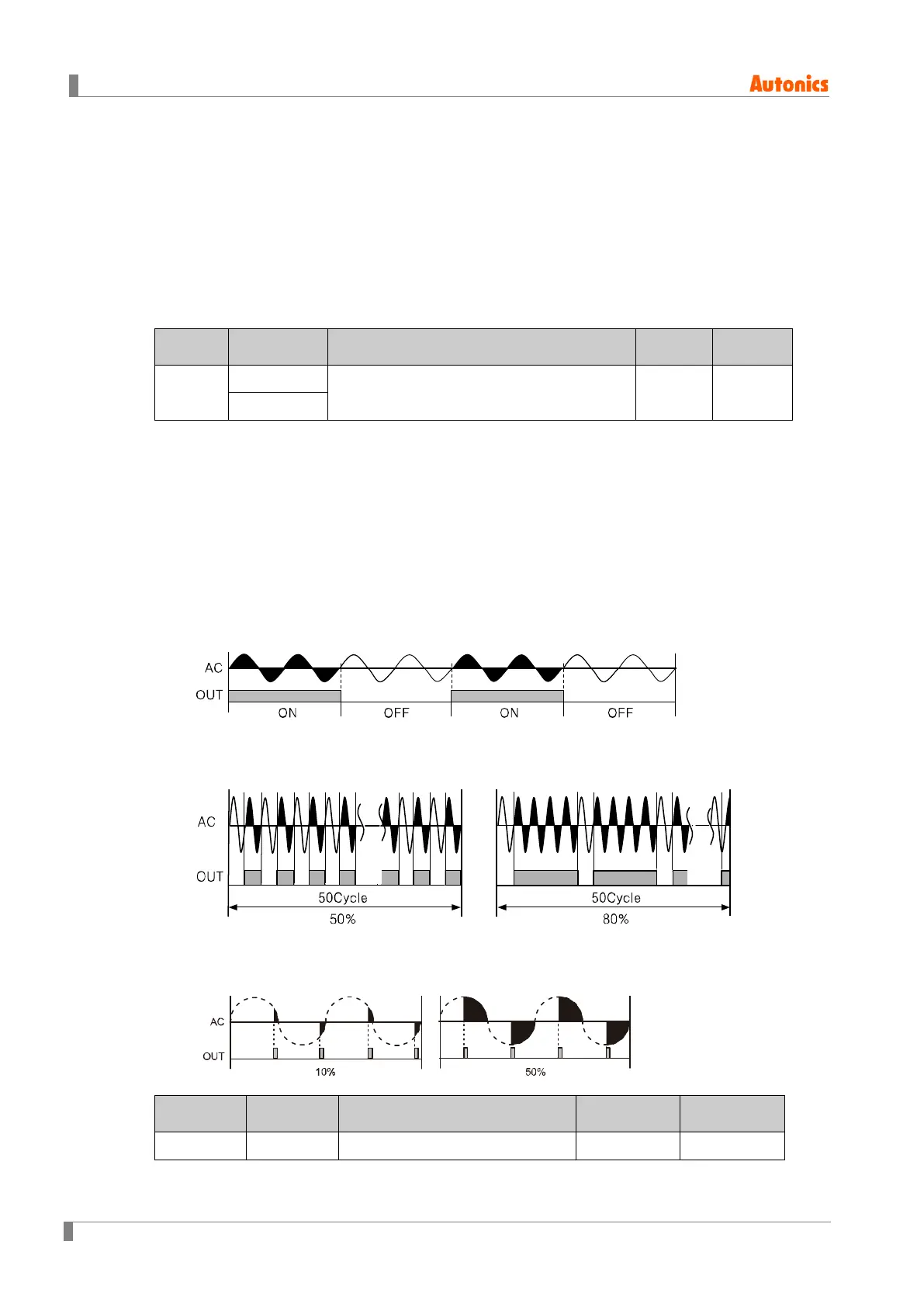

6.2.5.2 SSRP function [PAR3 → O!SR]
SSRP function of SSR drive output is selectable one of standard ON/OFF control, cycle, phase
control. By parameter setting, standard SSR drive is available. Also, cycle control connecting
with a zero cross turn-on method SSR, phase control connectiong with a random turn-on method
SSR are available.
Realizing high accuracy and cost effective temperature control with both current output (4-20mA)
and linear output(cycle control and phase control).
(1) Standard ON/OFF control [STND]
A mode to control the load in the same way as Relay output type.(ON: output level 100%,
OFF: output level 0%)
(2) Cycle control [CYCL]
A mode to control the load by repeating output ON / OFF according to the rate of output
within setting cycle. Having improved ON / OFF noise feature by Zero Cross type.
(3) Phase control [PHAS]
A mode to control the load by controlling the phase within AC half cycle. Serial control is
available. Random turn-on SSR must be used for this mode.
Setting
group
Parameter Setting range
Factory
default
Unit
PAR3 O!SR STND / CYCL/ PHAS STND -
